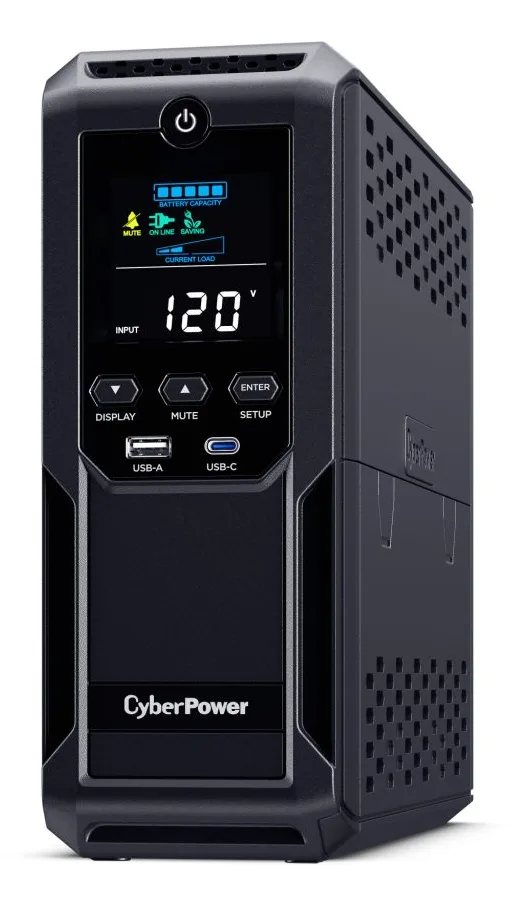

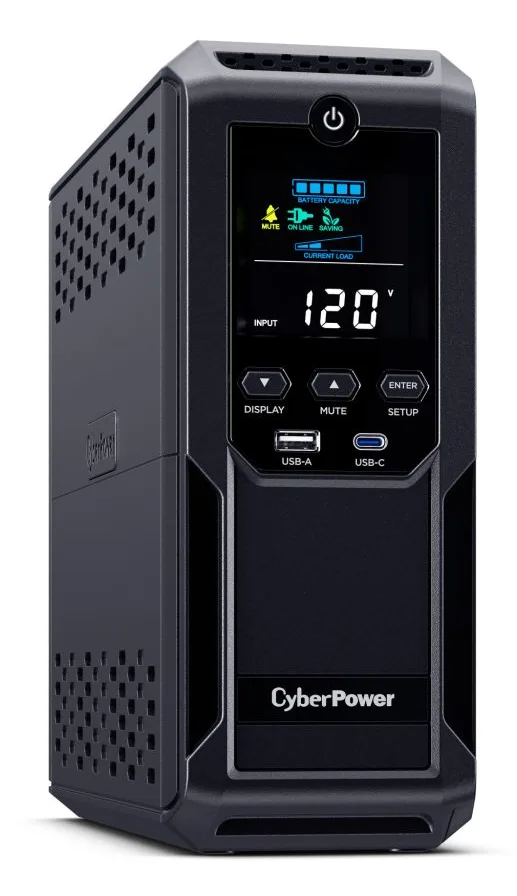

1500VA/900W Mini-tower AVR UPS

Cyberpower

1500VA/900W Mini-tower AVR UPS

Part #: BRG1500AVRLCD2 Uninterruptible Power Supplies (UPSs)

$289.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

12 Outlet, LCD, Serial/USB, 3Yr Wty

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	6 year(s)
Battery recharge time	8 h
Battery capacity	18 Ah, 18000 mAh
Number of batteries supported	2
Typical backup time at half load	12 min
Typical backup time at full load	2 min
Cold start	Yes
Replacement battery cartridge	RB1290X2E
Battery replacement accessibility	End-user
Battery voltage	24 V
Number of batteries included	2 pc(s)

Design

Form factor	Tower
Product colour	Black
Display type	LCD
Housing material	Plastic
Control type	Buttons

Features

Heat dissipation	205 BTU/h

General

Manufacturer Part Number	BRG1500AVRLCD2
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)

Packaging content

Cables included	USB cable
Manual	Yes
Quick installation guide	Yes
Batteries included	Yes

Performance

LED indicators	Power, Battery level, Charging, Status
UPS topology	Line-Interactive
Waveform	Simulated sine
Response time	4 ms
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1

Physical

Weight	25.3 lb

Ports & interfaces

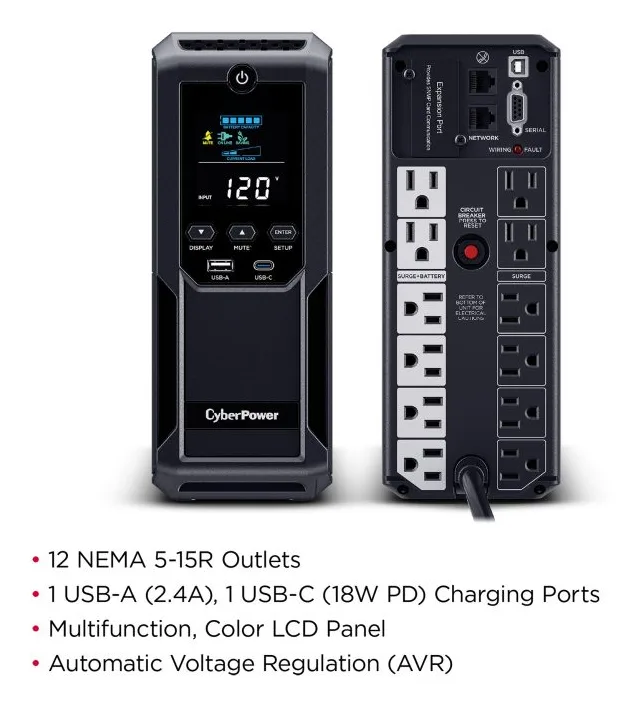

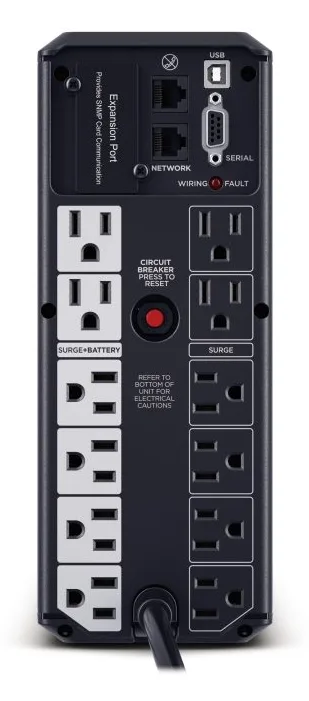

AC outlets quantity	12 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port	Yes
USB port type	USB Type-B
Serial interface type	RS-232
Serial interface	Yes
Network card slot	Yes

Power

Input operation voltage (min)	57 V
Input operation voltage (max)	120 V
Output operation voltage (min)	114 V
Output operation voltage (max)	126 V
Maximum current	15 A
Output frequency	60 Hz
Output power	900 W
Surge energy rating	1500 J
Output power capacity	1.5 kVA
Input frequency	57/63 Hz
Output frequency regulation	1 Hz
Efficiency	95%
Output voltage regulation	5%

Technical details

Compliance certificates	RoHS, UL, cUL, Federal Communications Commission (FCC)

Weight & dimensions

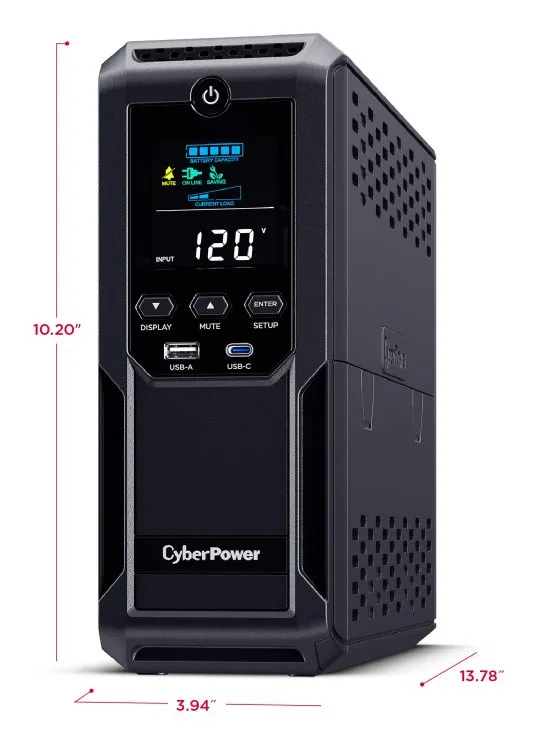

Width	3.94" (100 mm)
Height	10.2" (259 mm)
Depth	13.8" (350 mm)
Package width	7.48" (190 mm)
Package height	14.5" (368.1 mm)
Package depth	17.7" (450.1 mm)
Package weight	25.4 lbs (11.5 kg)
Package type	Box
