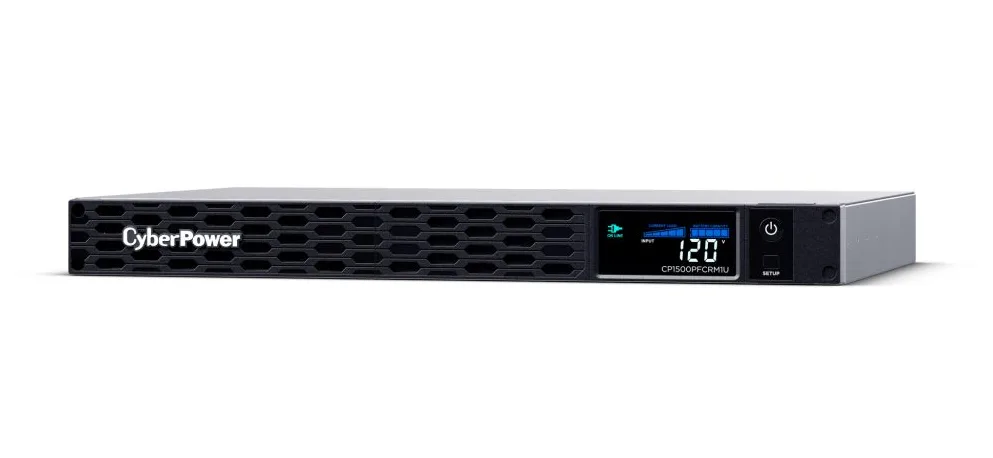

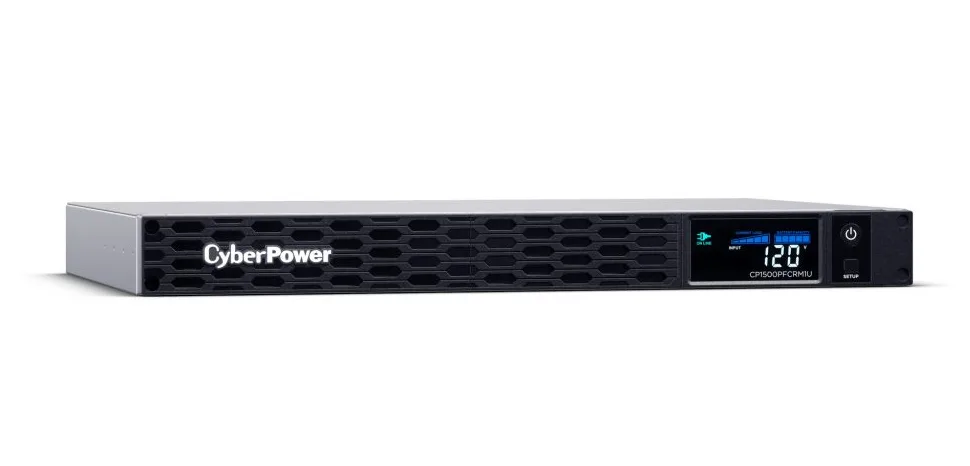

CyberPower CP1500PFCRM1U UPS

Cyberpower

CyberPower CP1500PFCRM1U UPS

Part #: CP1500PFCRM1U Uninterruptible Power Supplies (UPSs)

$643.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

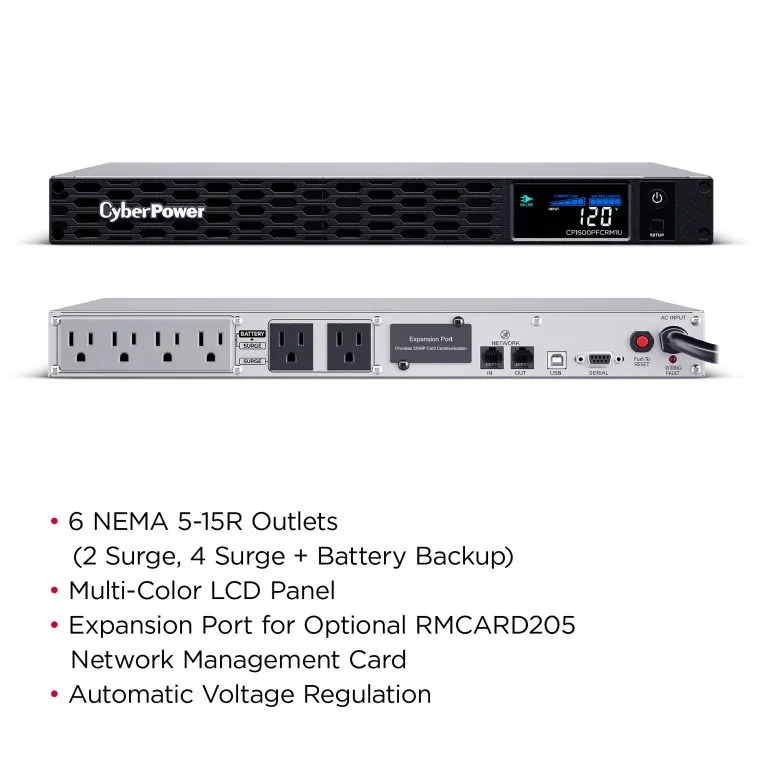

6 NEMA 5-15R, NEMA 5-15P, 3 Yr Wty

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery capacity	9 Ah
Typical backup time at half load	10 min
Typical backup time at full load	1.6 min
Hot-swap battery	Yes
Replacement battery cartridge	RB0690X4
Battery replacement accessibility	End-user
Battery voltage	6 V

Design

Form factor	Rackmount
Rack capacity	1U
Product colour	Black
Display type	LCD
Housing material	Metal
Control type	Buttons

General

Manufacturer Part Number	CP1500PFCRM1U
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)

Packaging content

Cables included	USB cable

Performance

LED indicators	Power, Fault
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Response time	8 ms
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes

Physical

Weight	33.99 lb

Ports & interfaces

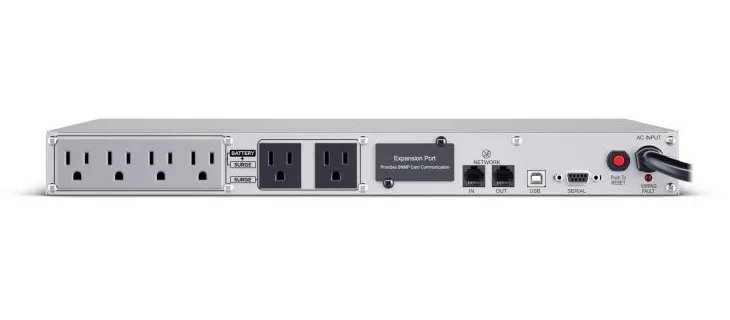

AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Cable length	118.1" (3 m)
Serial ports quantity	1
Serial interface type	RJ-45
Serial interface	Yes

Power

Input operation voltage (min)	97 V
Input operation voltage (max)	144 V
Output operation voltage (max)	120 V
Maximum current	15 A
Output power	900 W
Surge energy rating	1150 J
Output power capacity	1.5 kVA
Input frequency	57/63 Hz
Power factor	0.6

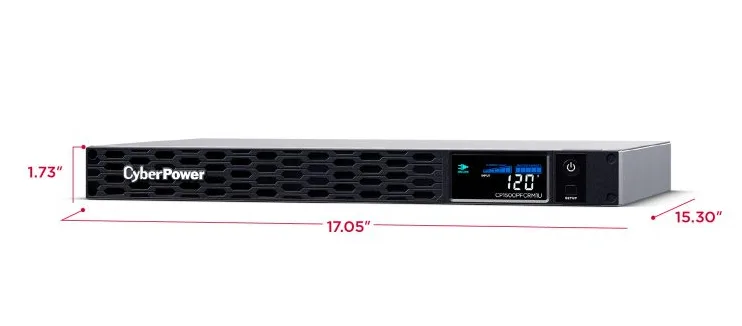

Weight & dimensions

Width	17" (433 mm)
Height	1.73" (44 mm)
Depth	15.3" (389 mm)
Package width	207.5" (5270 mm)
Package height	58.7" (1492 mm)
Package depth	197.5" (5016 mm)
