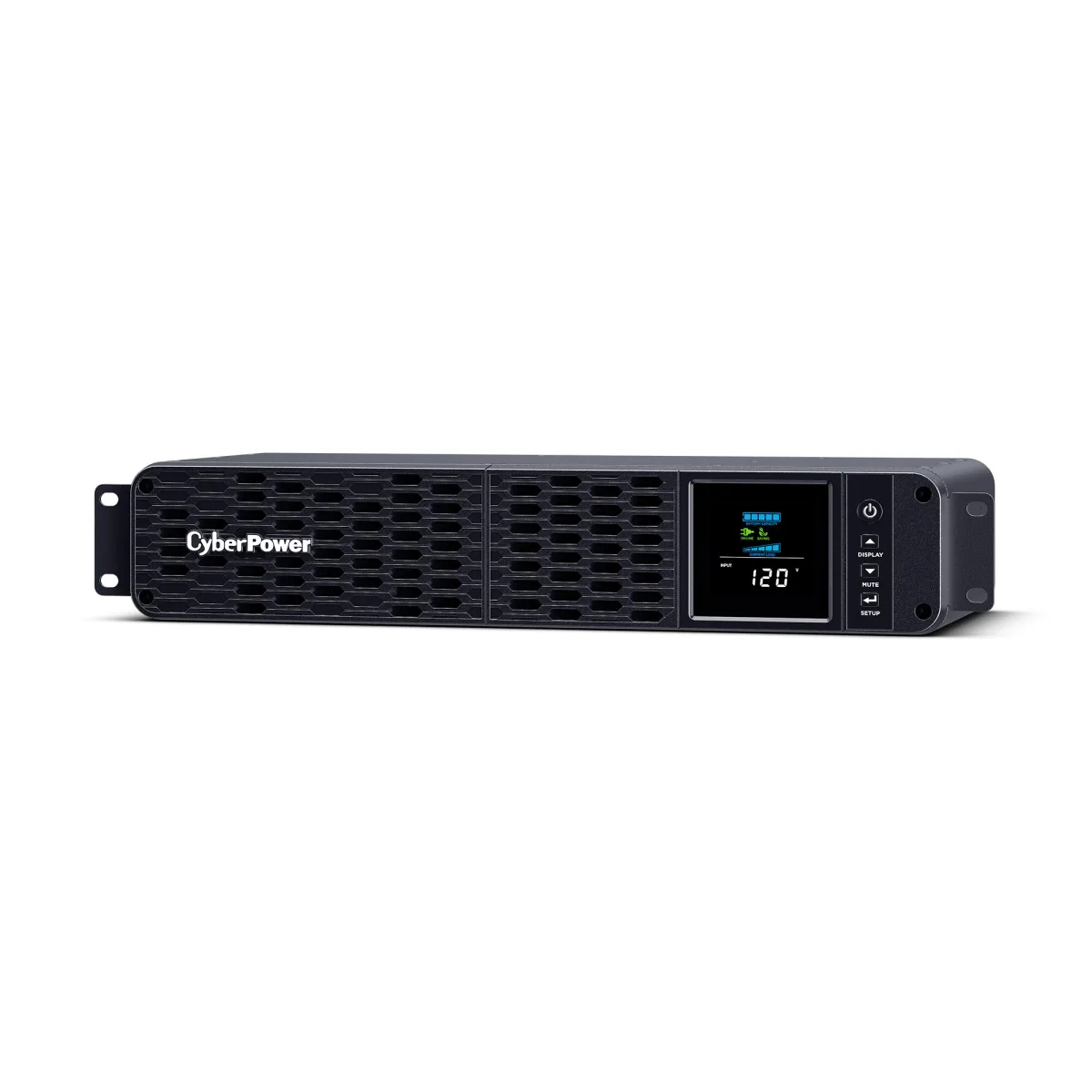

1500VA/100W 2U Rackmount UPS

Cyberpower

1500VA/100W 2U Rackmount UPS

Part #: CP1500PFCRM2U Uninterruptible Power Supplies (UPSs)

$359.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

Sinewave, AVR, LCD, SNMP, 3-Yr Wty

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery capacity	9 Ah
Number of batteries supported	2
Typical backup time at half load	10.2 min
Typical backup time at full load	3.1 min
Hot-swap battery	Yes
Battery voltage	12 V

Design

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display type	LCD
Housing material	Plastic

General

Manufacturer Part Number	CP1500PFCRM2U
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%

Performance

Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Audible alarm(s)	Yes

Physical

Weight	29.6 lb

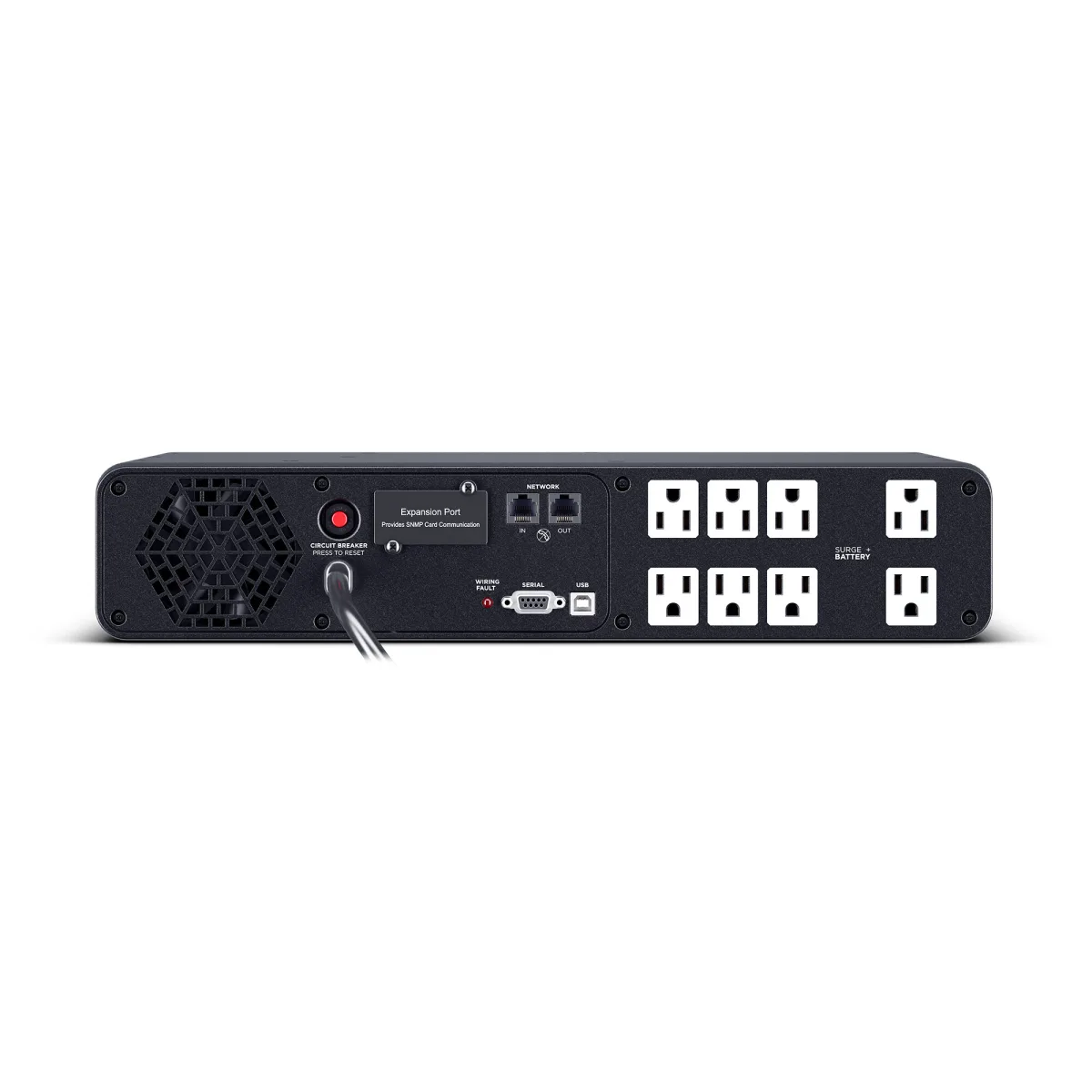

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB port	Yes
Serial interface	Yes

Power

Input operation voltage (min)	88 V
Input operation voltage (max)	144 V
Output power	1000 W
Surge energy rating	1500 J
Output power capacity	1.5 kVA
Input frequency	57/63 Hz
Output voltage regulation	11%
Output power factor	0.7

Technical details

Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR

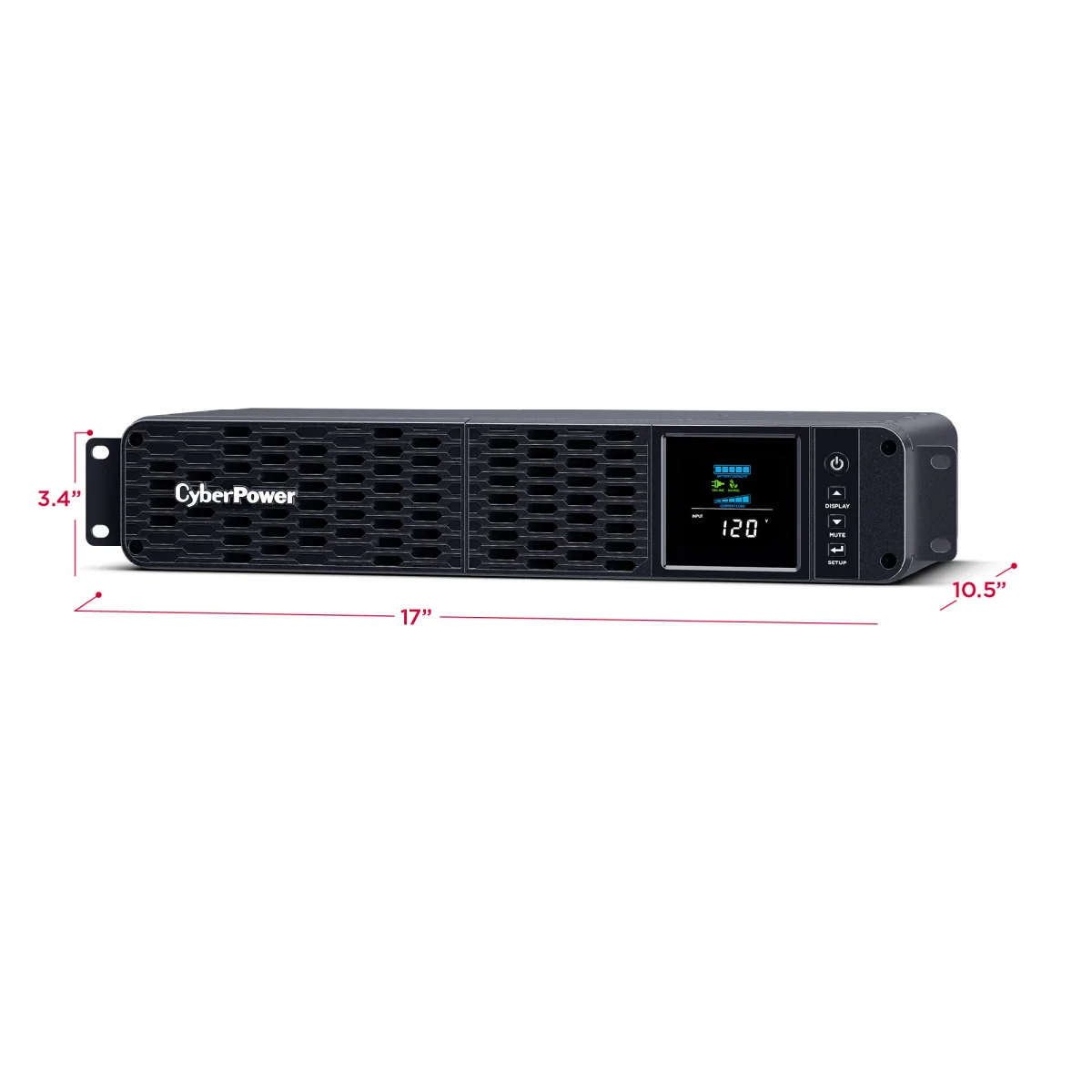

Weight & dimensions

Width	17" (432 mm)
Height	3.39" (86 mm)
Depth	10.5" (267 mm)
Package width	14.7" (373.4 mm)
Package height	6.4" (162.6 mm)
Package depth	20.6" (523.2 mm)
Package weight	29.5 lbs (13.4 kg)
