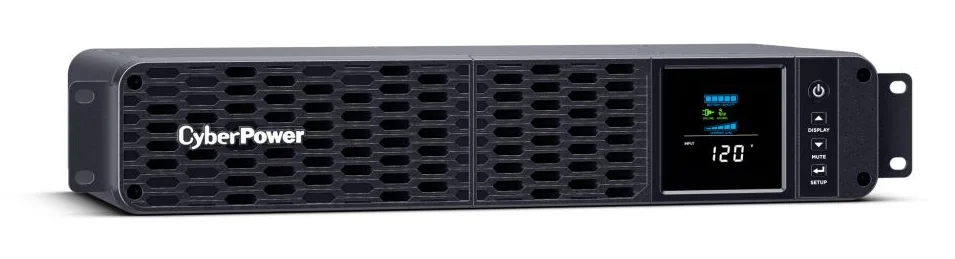

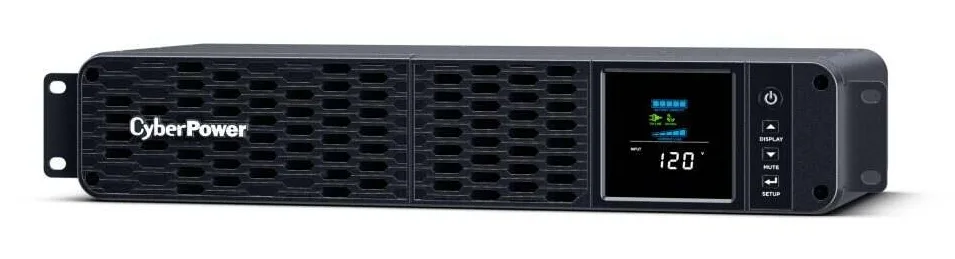

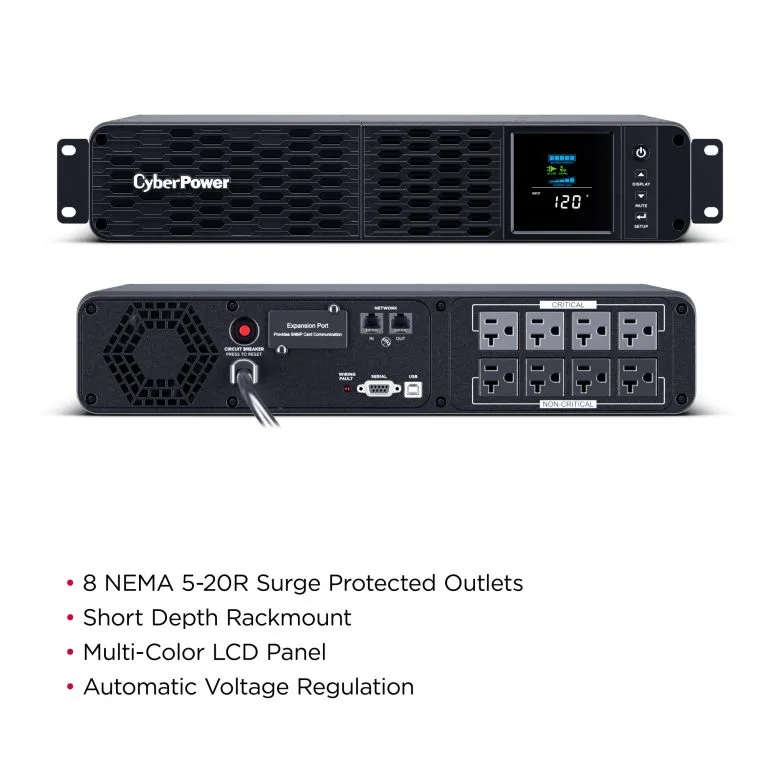

CP2000PFCRM2U UPS

Cyberpower

CP2000PFCRM2U UPS

Part #: CP2000PFCRM2U Uninterruptible Power Supplies (UPSs)

$449.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

2U, 8 NEMA 5-20R, 5-15P, 6Ft Cord, 3Yr Wty

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	6 year(s)
Battery recharge time	8 h
Battery capacity	18 Ah, 18000 mAh
Number of batteries supported	2
Typical backup time at half load	9 min
Typical backup time at full load	2.2 min
Cold start	Yes
Hot-swap battery	Yes
Automatic battery test	Yes
Replacement battery cartridge	RB1290X2G
Battery replacement accessibility	End-user
Battery voltage	24 V
Number of batteries included	2 pc(s)

Design

Form factor	Rackmount
Rack capacity	2U
Product colour	Black

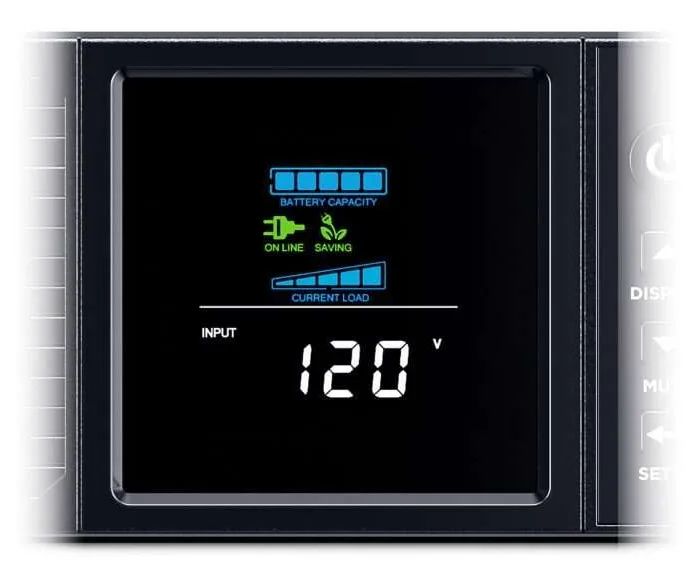

Display type	LCD
Housing material	Plastic
Control type	Buttons

Features

Heat dissipation	57.6 BTU/h

General

Manufacturer Part Number	CP2000PFCRM2U
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)

Performance

LED indicators	Fault
UPS topology	Line-Interactive
Waveform	Sine
Response time	8 ms
Surge protection	Yes
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1

Physical

Weight	28.68 lb

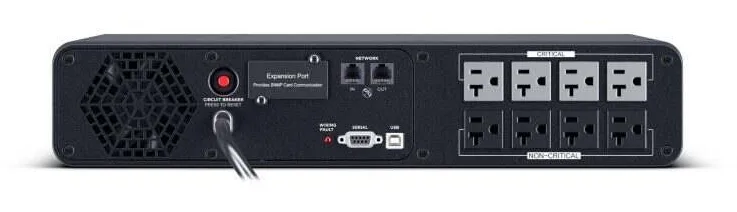

Ports & interfaces

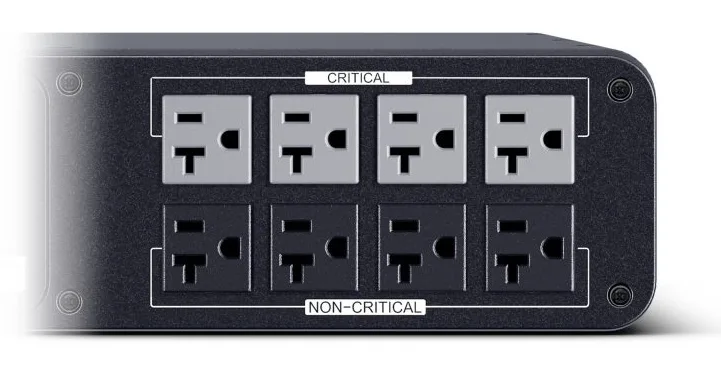

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-20R
Power plug	NEMA 5-20P
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port	Yes
USB port type	USB Type-B

Power

Input operation voltage (min)	89 V
Input operation voltage (max)	139 V
Output operation voltage (min)	114 V
Output operation voltage (max)	126 V
Maximum current	16.7 A
Output frequency	60 Hz
Output power	1200 W
Surge energy rating	1500 J
Output power capacity	2 kVA
Input frequency	50/60 Hz
Output frequency regulation	1 Hz
Efficiency	95%
Output voltage regulation	5%

Technical details

Compliance certificates	UL, cUL, RoHS

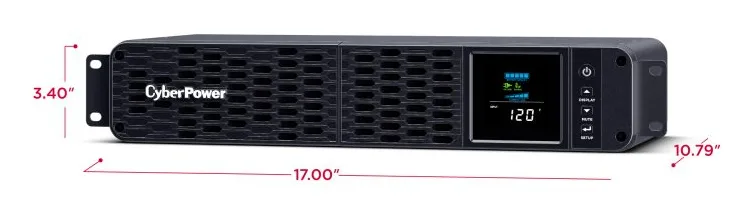

Weight & dimensions

Width	17" (433 mm)
Height	3.39" (86 mm)
Depth	10.8" (274 mm)
