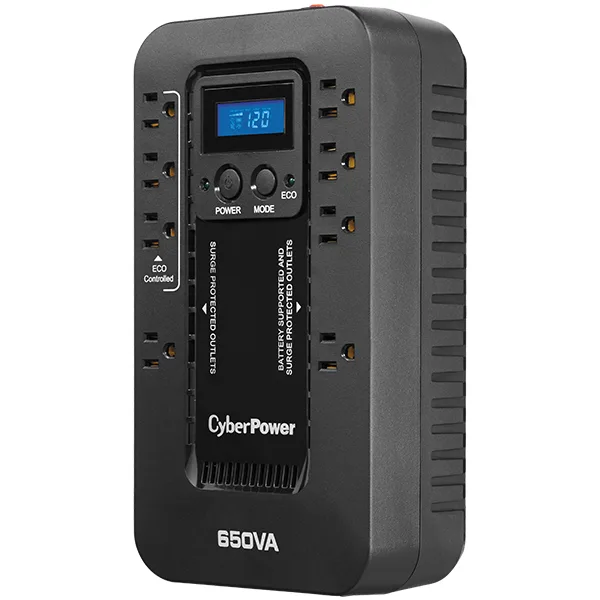

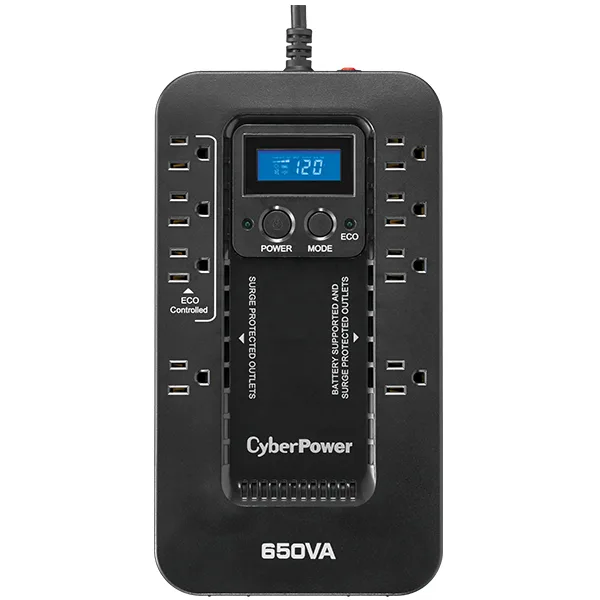

650VA EC UPS Standby

Cyberpower

650VA EC UPS Standby

Part #: EC650LCD Uninterruptible Power Supplies (UPSs)

$96.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

LCD 8 OUT 5-15R 5FT CORD 120V ECO RJ11 3YR WTY

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	10.7 min
Typical backup time at full load	2.8 min
Battery voltage	12 V

Design

Form factor	Compact
Product colour	Black
Certification	UL1778, cUL 107.3, FCC
Display type	LCD

General

Manufacturer Part Number	EC650LCD
Country of Origin	VN

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Other features

Nominal output voltage	120 V

Packaging data

Package weight	6.5 lbs (2.95 kg)
Package dimensions (WxDxH)	13.2 x 8.1 x 4.3" (335.3 x 205.7 x 109.2 mm)
Bundled software	PowerPanel

Performance

LED indicators	Yes
UPS topology	Standby (Offline)
Waveform	Sine
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Modem, Telephone
Power protection features	Overload

Physical

Weight	7.15 lb

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15R
Cable length	59.1" (1.5 m)
USB 2.0 ports quantity	1
Modem (RJ-11) ports	2

Power

Input operation voltage (min)	96 V
Input operation voltage (max)	140 V
Output power	390 W
Surge energy rating	526 J
Output power capacity	0.65 kVA
Input frequency	47/63 Hz

Technical details

Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR

Weight & dimensions

Width	10.6" (269.2 mm)
Height	3.1" (78.7 mm)
Depth	5.9" (149.9 mm)
