1000VA SMART APP

Cyberpower

1000VA SMART APP

Part #: OL1000RTXL2U Uninterruptible Power Supplies (UPSs)

$1,095.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

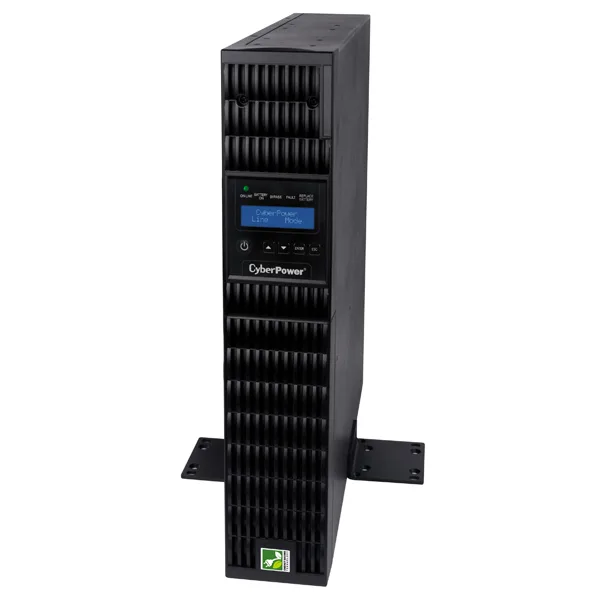

1KVA SMART APP. ONLINE UPS PURESINE 100-125V LCD 5-15P 2U RT 3YR

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h
Typical backup time at half load	18 min
Typical backup time at full load	6 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X3
Battery type	12V/9Ah
Number of battery cells	3

Design

Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL1778, CSA C22.2 NO.107.3-05, FCC DOC A
Display type	LCD
Housing material	Steel

General

Manufacturer Part Number	OL1000RTXL2U
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Packaging data

Package weight	53.8 lbs (24.4 kg)
Package dimensions (WxDxH)	21.7 x 23.2 x 9.45" (550 x 590 x 240 mm)

Performance

UPS topology	Double-conversion (Online)
Response time	0 ms
Noise level	50 dB
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Network
Power protection features	Overload

Physical

Weight	45 lb

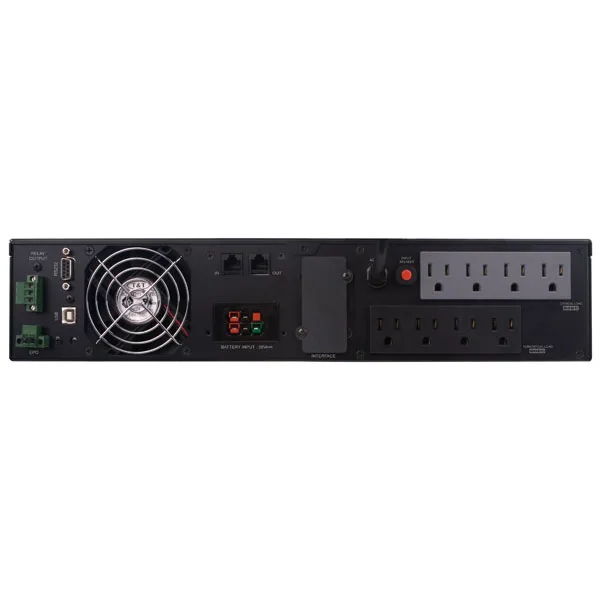

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 1-15P
Cable length	120.1" (3.05 m)
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
Serial ports quantity	1
Modem (RJ-11) ports	2

Power

Input operation voltage (min)	100 V
Input operation voltage (max)	125 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Output power	900 W
Output power capacity	1 kVA
Input frequency	40/70 Hz
Efficiency	93%
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3%
Power factor	0.9

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	17" (433 mm)
Height	3.46" (88 mm)
Depth	16.9" (430 mm)
