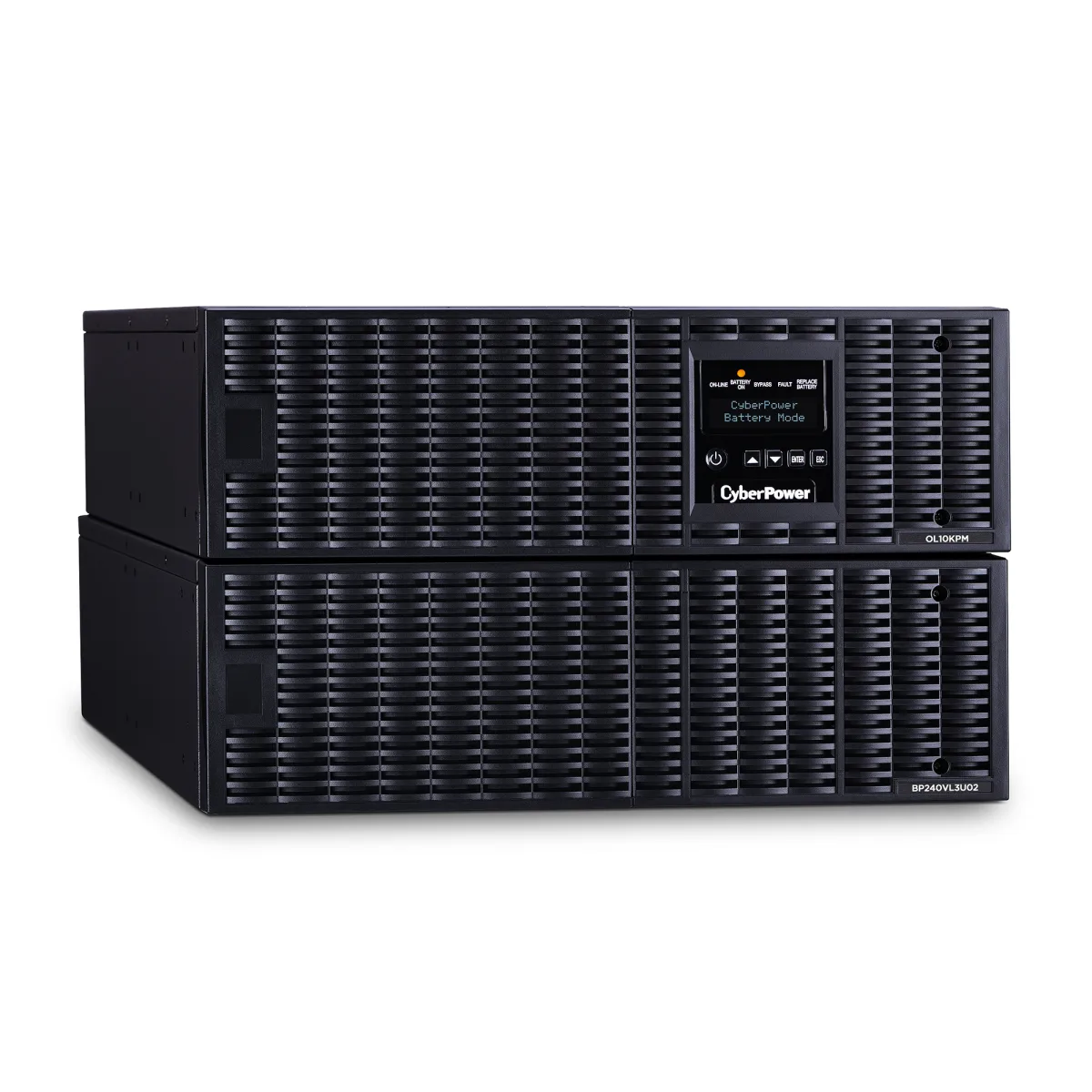

SMART APP UPS 10KVA RT 200/240

Cyberpower

SMART APP UPS 10KVA RT 200/240

Part #: OL10KRT Uninterruptible Power Supplies (UPSs)

$7,782.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

10000VA/10000W, Pure Sine Wave, LCD Rack Tower with RMCARD

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Number of batteries supported	20
Typical backup time at half load	10 min
Typical backup time at full load	3.6 min
Cold start	Yes
Hot-swap battery	Yes
Battery voltage	12 V
Battery recharge time(90%)	5 h

Design

Form factor	Rackmount/Tower
Rack capacity	6U
Product colour	Black
Safety	UL 1778 5th Ed., CSA C22.2 NO.107.3-05, FCC 5 A
Display type	LCD
Housing material	Steel

General

Manufacturer Part Number	OL10KRT
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Packaging data

Cables included	Phone (RJ-11), Serial, USB cable
Rack mount kit	Yes
Quick installation guide	Yes
Rubber feet	Yes

Performance

LED indicators	Yes
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	65 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Power protection features	Overload, Short circuit
Overload capacity (1 minute)	125%
Overload capacity (10 seconds)	130%

Physical

Weight	260 lb

Ports & interfaces

AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-30R, Terminal
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB port	Yes
USB port type	USB Type-B
Emergency Power Off (EPO) connector	Yes
Serial interface type	RS-232
Modem (RJ-11) ports	2
Serial interface	Yes
RS-232 ports	1

Power

Input operation voltage (min)	120 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output power	10000 W
Surge energy rating	2430 J
Output power capacity	10 kVA
Input frequency	40 - 70 Hz
Crest factor	3:1
Emergency Power Off (EPO)	Yes
ECO mode	Yes
Input power factor	0.99
Output power factor	1

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	17" (433 mm)
Height	10.5" (266 mm)
Depth	26" (660 mm)
