2.2KVA ONLINE UPS 2U

Cyberpower

2.2KVA ONLINE UPS 2U

Part #: OL2200RTXL2UN Uninterruptible Power Supplies (UPSs)

$2,309.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

SINEWAVE LCD 5-20R 100-125V RMCARD205 RT 3YR WTY

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Battery capacity	9 Ah
Typical backup time at half load	20 min
Typical backup time at full load	6.5 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X6A
Battery voltage	12 V
Number of battery cells	6

Design

Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A
Display type	LCD
Housing material	Metal
Built-in fan	Yes

General

Manufacturer Part Number	OL2200RTXL2UN
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%

Packaging data

Cables included	Phone (RJ-11), Serial, USB cable
Rack mount kit	Yes

Performance

LED indicators	Yes
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	55 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Automatic Voltage Regulation (AVR)	Yes

Physical

Weight	85 lb

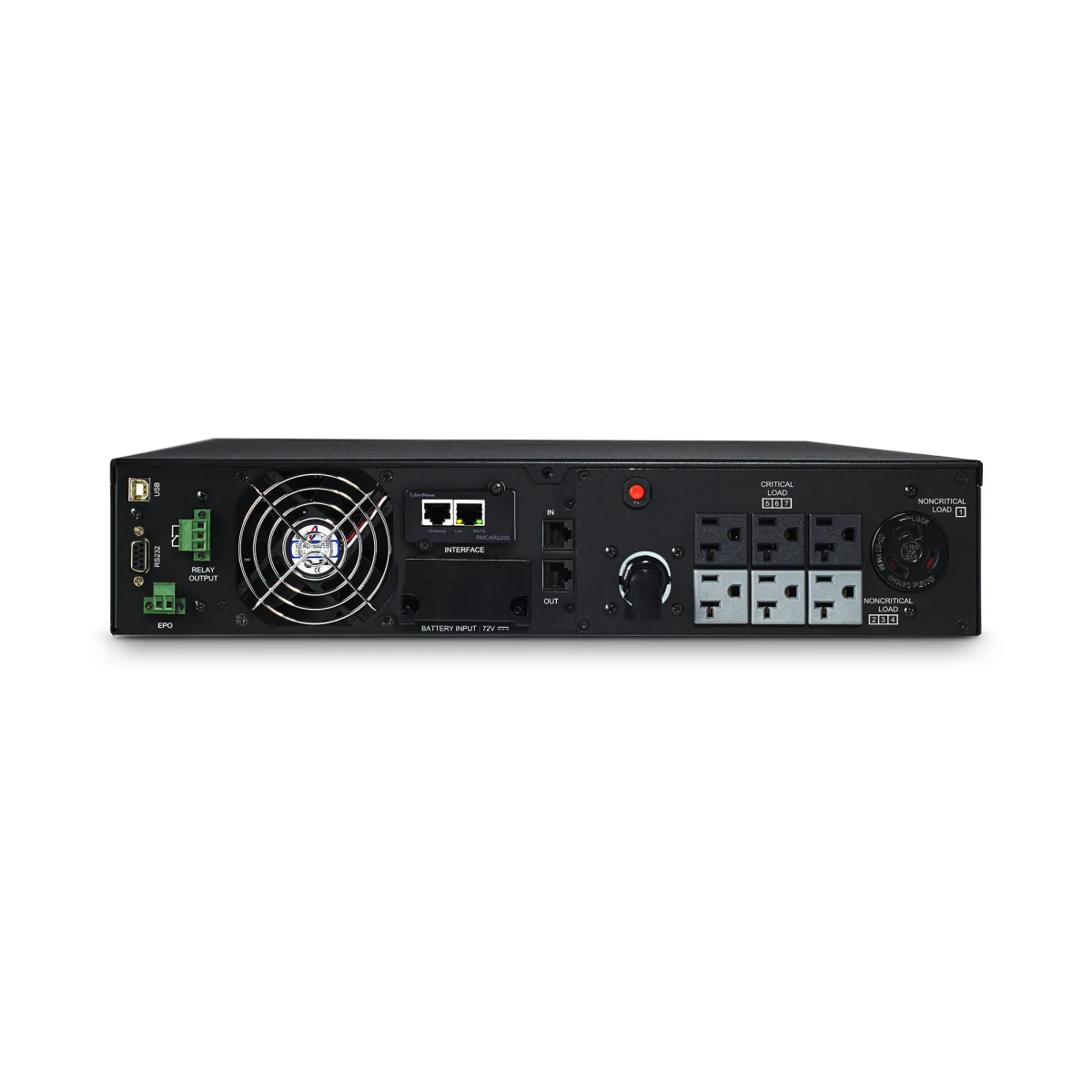

Ports & interfaces

AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-20R
Power plug	NEMA 5-20P
Cable length	118.1" (3 m)
Ethernet LAN (RJ-45) ports	1
Serial ports quantity	1
USB port	Yes
Emergency Power Off (EPO) connector	Yes
Serial interface type	RJ-45
Modem (RJ-11) ports	1
Serial interface	Yes

Power

Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Output frequency	50/60 Hz
Output power	1800 W
Surge energy rating	1335 J
Output power capacity	2.2 kVA
Input frequency	40/70 Hz
Output frequency regulation	0.25 Hz
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Output voltage regulation	2%
Output voltage Total Harmonic Distortion (THD)	3%
ECO mode	Yes
Input power factor	0.99
Efficiency (ECO mode)	95%
Output power factor	0.82

Technical details

Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR

Weight & dimensions

Width	17" (432 mm)
Height	3.5" (89 mm)
Depth	23.6" (600 mm)
Package width	22" (558.8 mm)
Package height	9.25" (234.9 mm)
Package depth	34.7" (882.6 mm)
Package weight	77.6 lbs (35.2 kg)
