Cyberpower

3KVA ONLINE UPS 2U

Part #: OL3000RTXL2UN Uninterruptible Power Supplies (UPSs)

$2,995.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

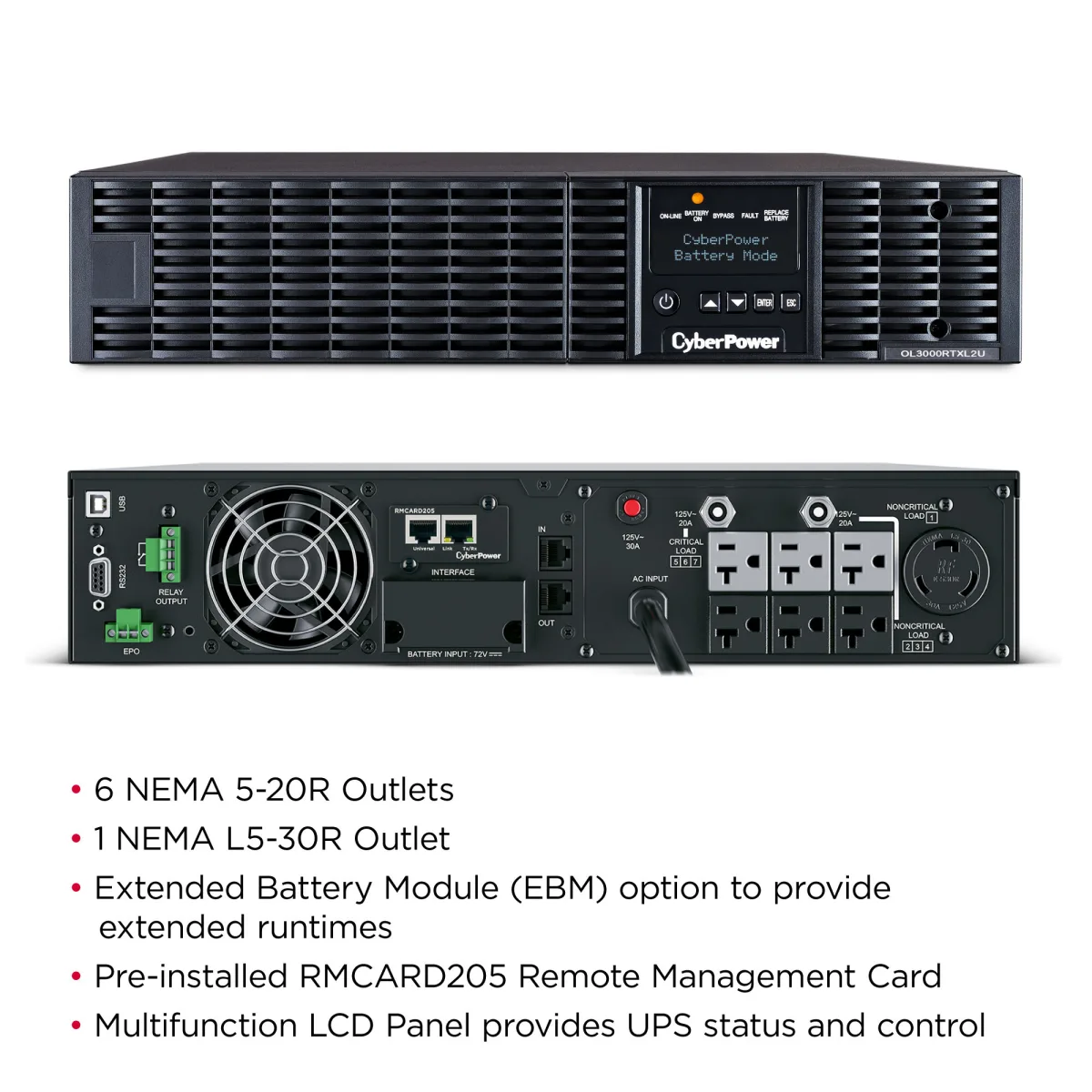

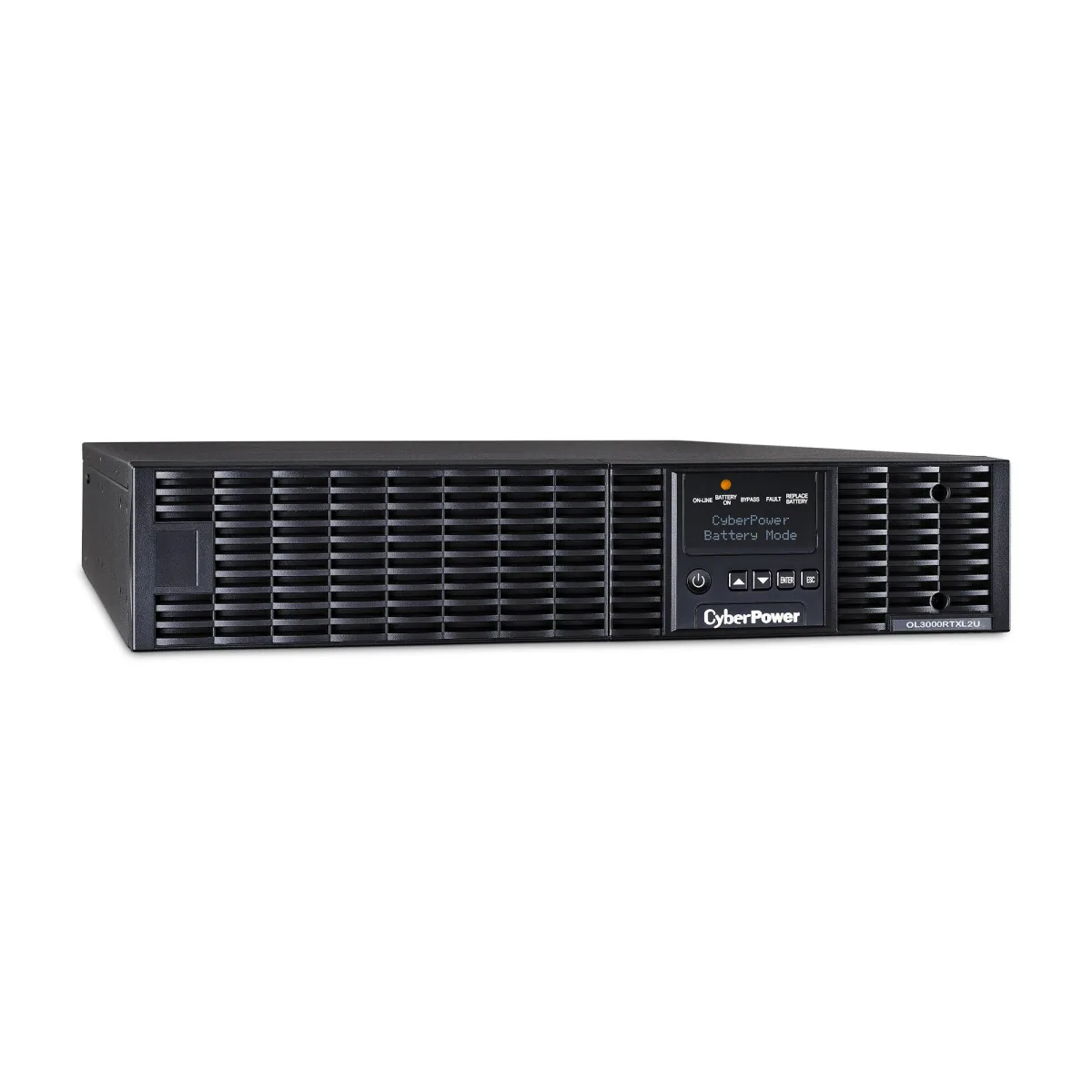

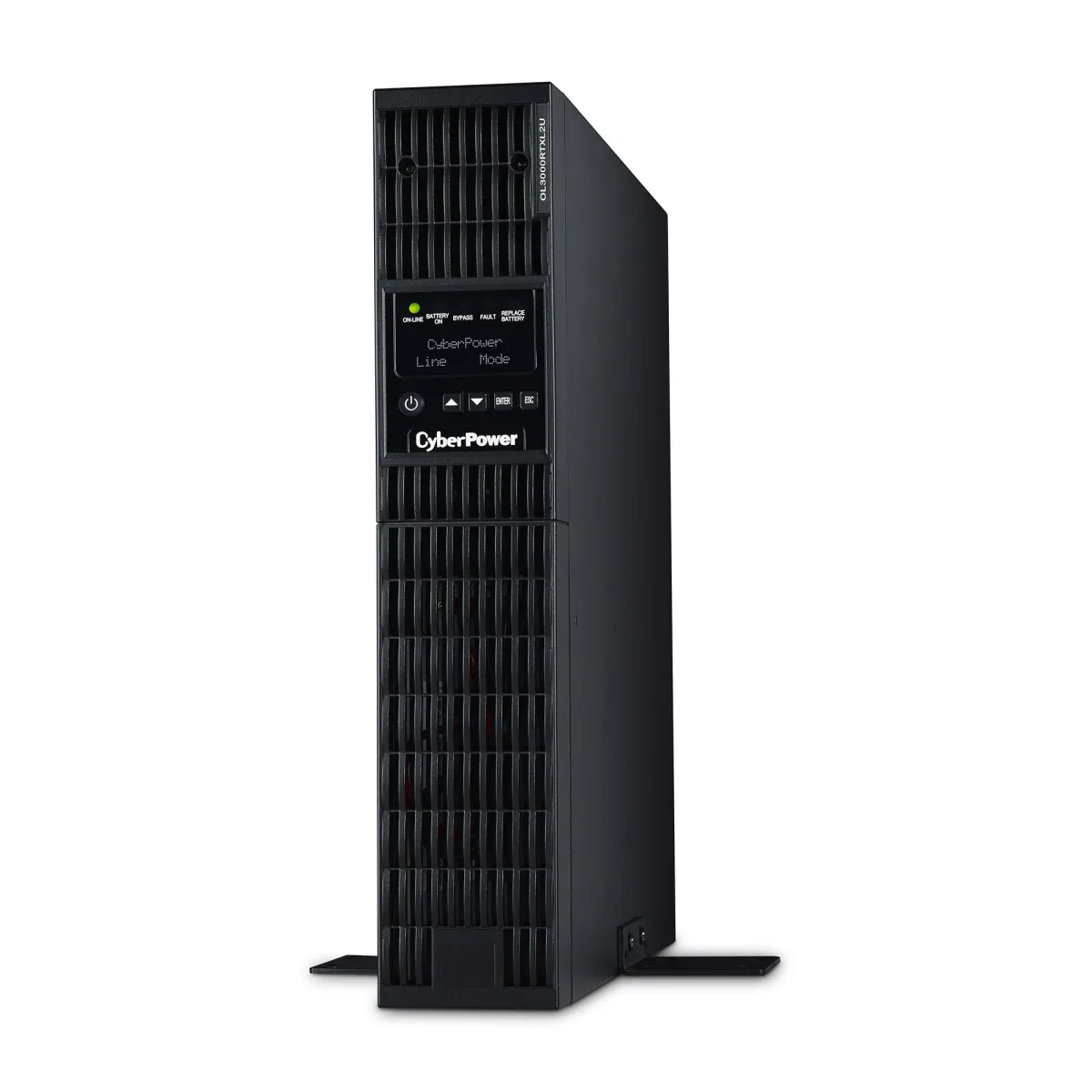

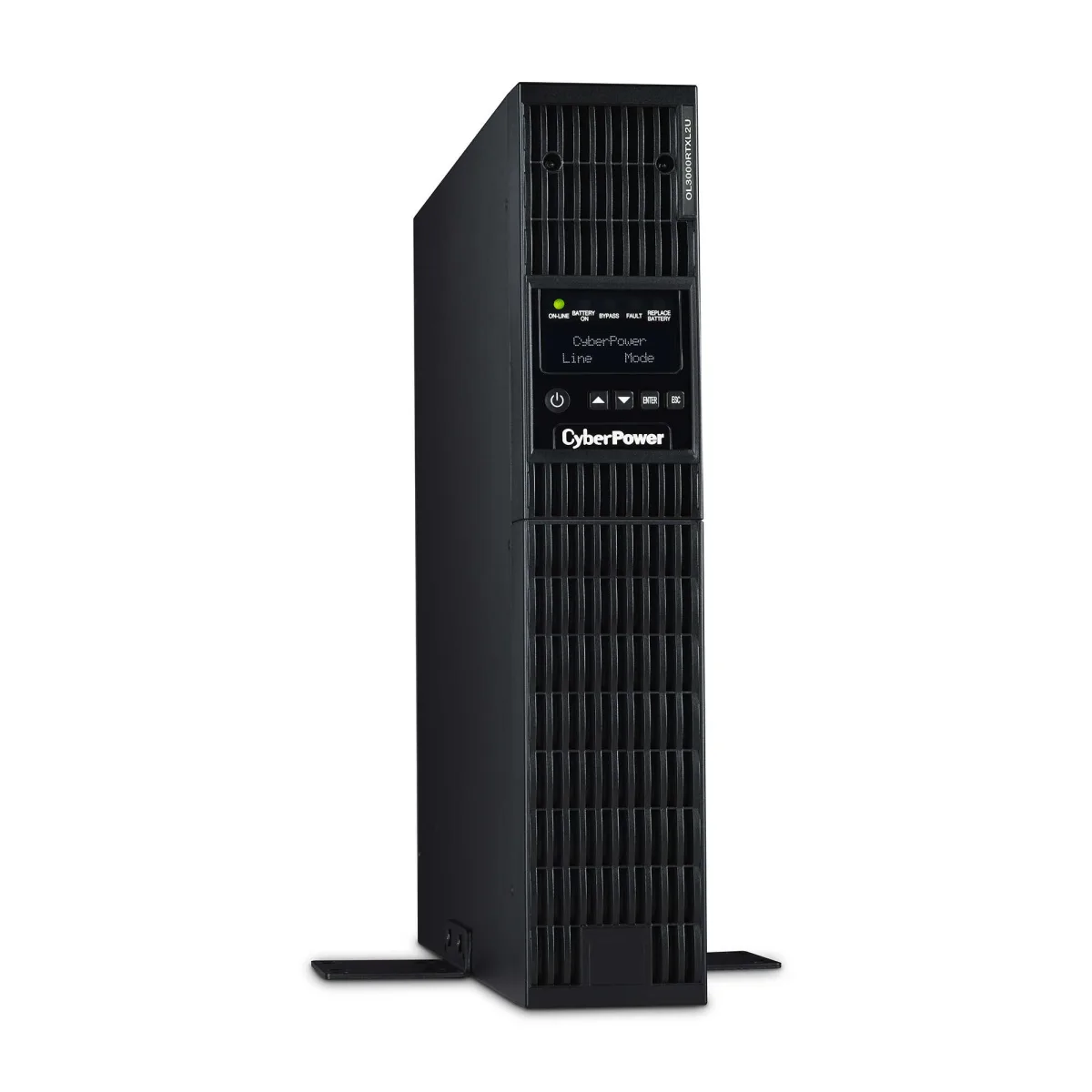

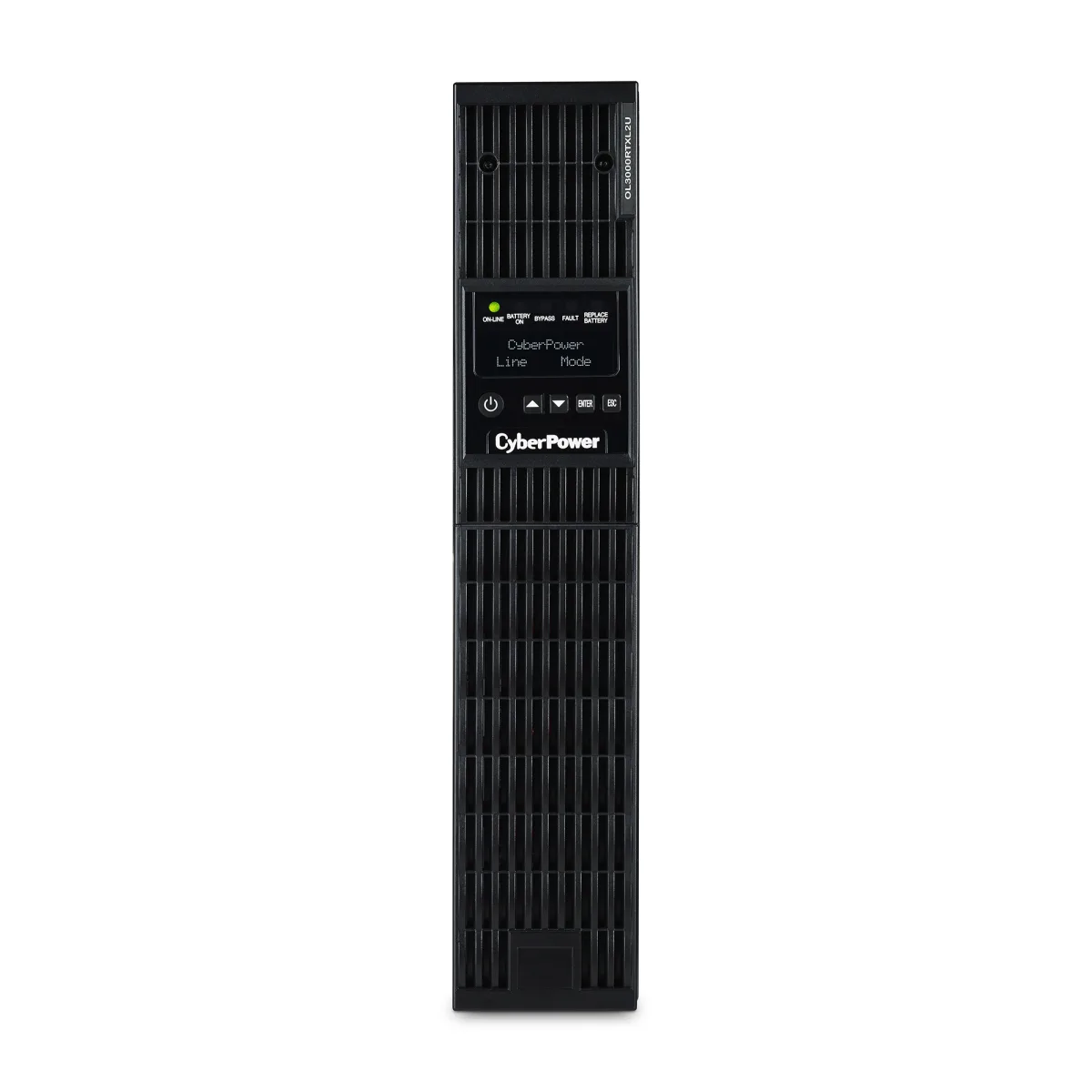

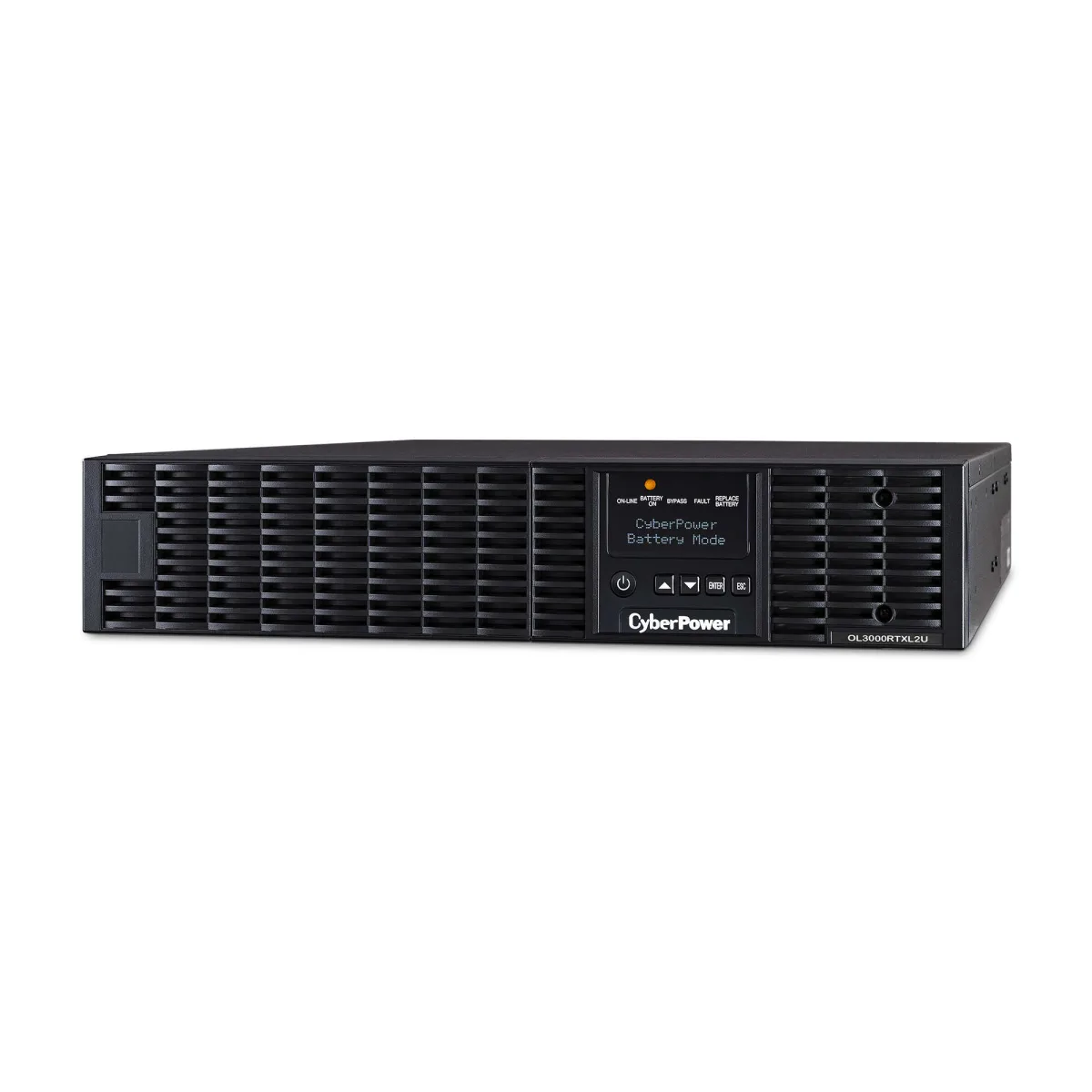

3KVA ONLINE UPS 2U. SINEWAVE LCD 5-20R 100-125V RMCARD205 RT 3YR WTY

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Battery capacity	9 Ah
Number of batteries supported	12
Cold start	Yes
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X6A
Battery voltage	12 V

Design

Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Display type	LCD
Housing material	Steel

General

Manufacturer Part Number	OL3000RTXL2UN
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Packaging data

Manual	Yes
Cables included	Phone (RJ-11), RJ-45, USB cable
Rack mount kit	Yes

Performance

LED indicators	Battery replacement, Fault, Power
Audible alarm modes	Fault, Low battery alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Noise level	65 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload, Short circuit

Physical

Weight	88 lb

Ports & interfaces

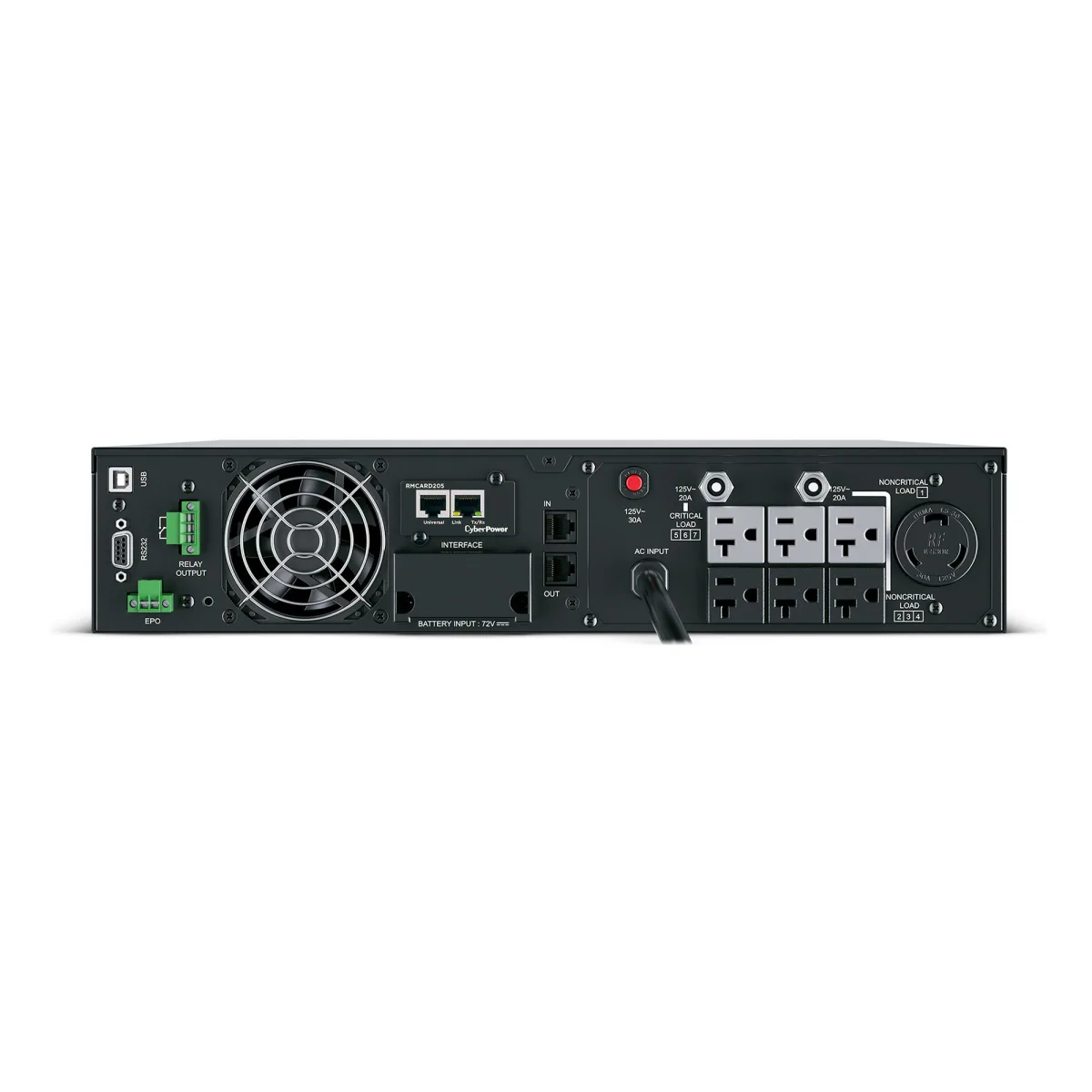

AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-30R
Power plug	NEMA 5-20R

Power

Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Output frequency	50/60 Hz
Output power	2700 W
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	5%
Power factor	0.9
Input power factor	0.99
Output power factor	0.9

Technical details

Compliance certificates	RoHS
Sustainability compliance	Yes

Weight & dimensions

Width	17" (431 mm)
Height	3.39" (86 mm)
Depth	28.3" (718 mm)
Package width	23.6" (599.4 mm)
Package height	8.5" (215.9 mm)
Package depth	43.3" (1099.8 mm)
Package weight	87.1 lbs (39.5 kg)
