6KVA/5.4KW, SINE WAVE, 8U RACK/TOWER
Cyberpower

6KVA/5.4KW, SINE WAVE, 8U RACK/TOWER

Part #: OL6KRTF Uninterruptible Power Supplies (UPSs)

$5,331.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

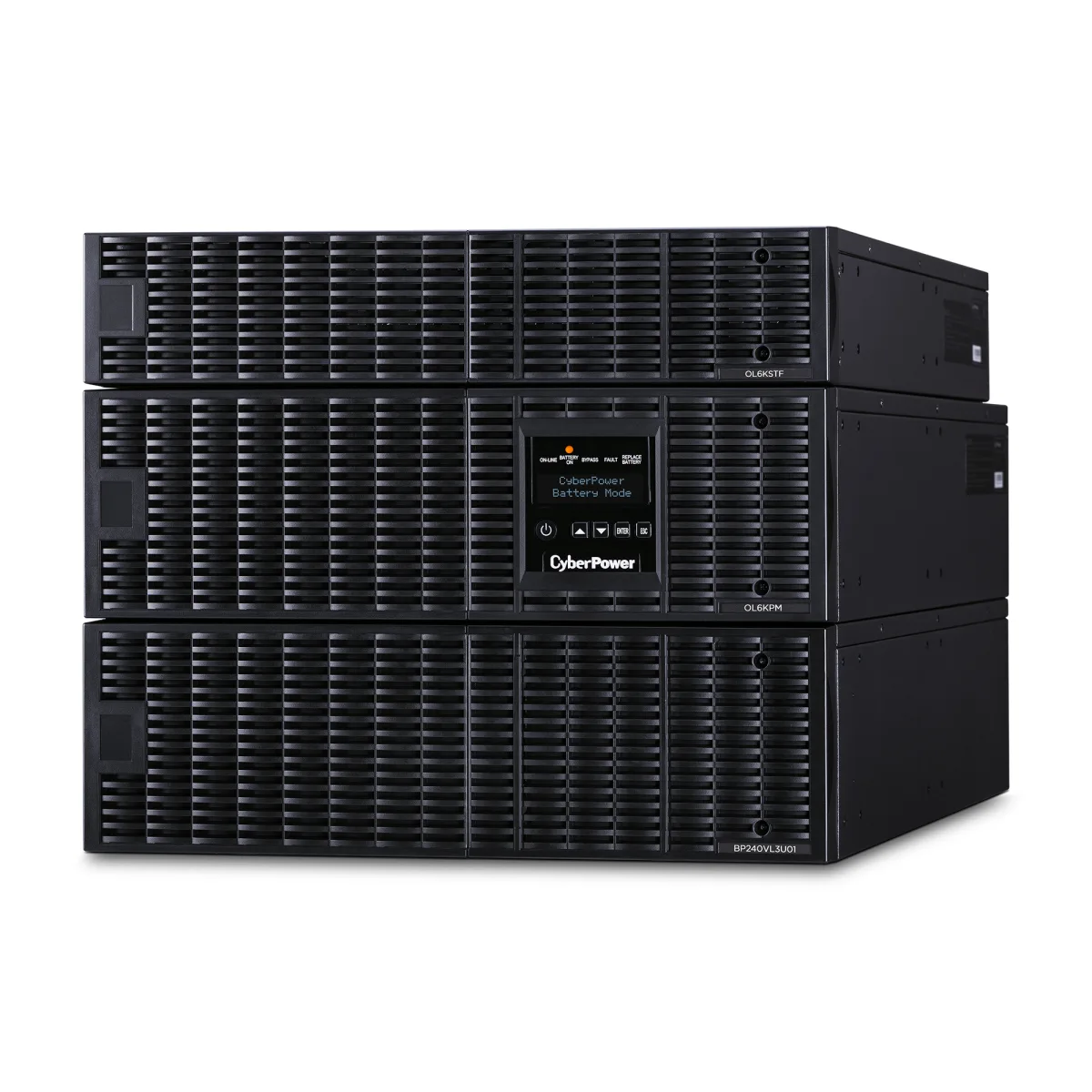

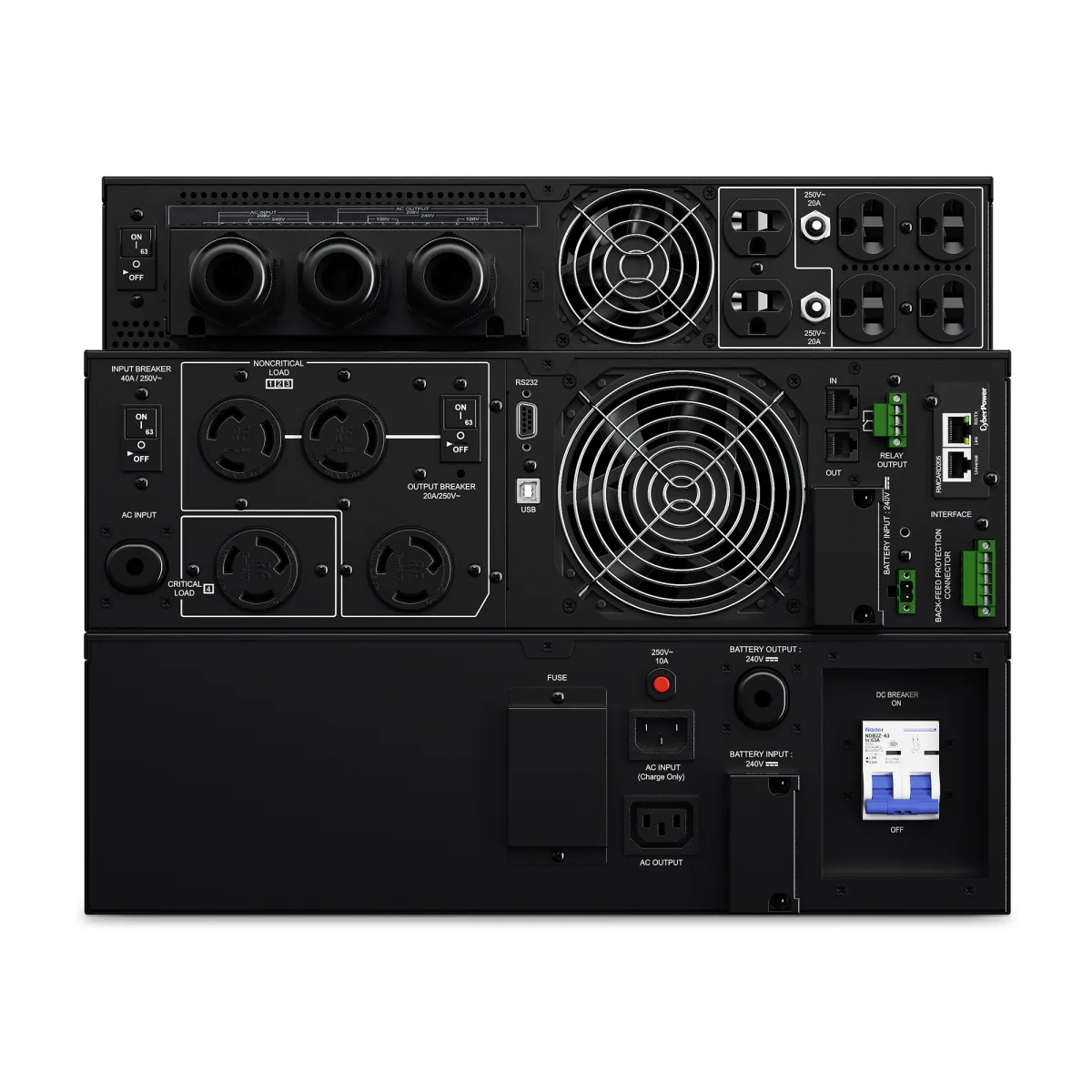

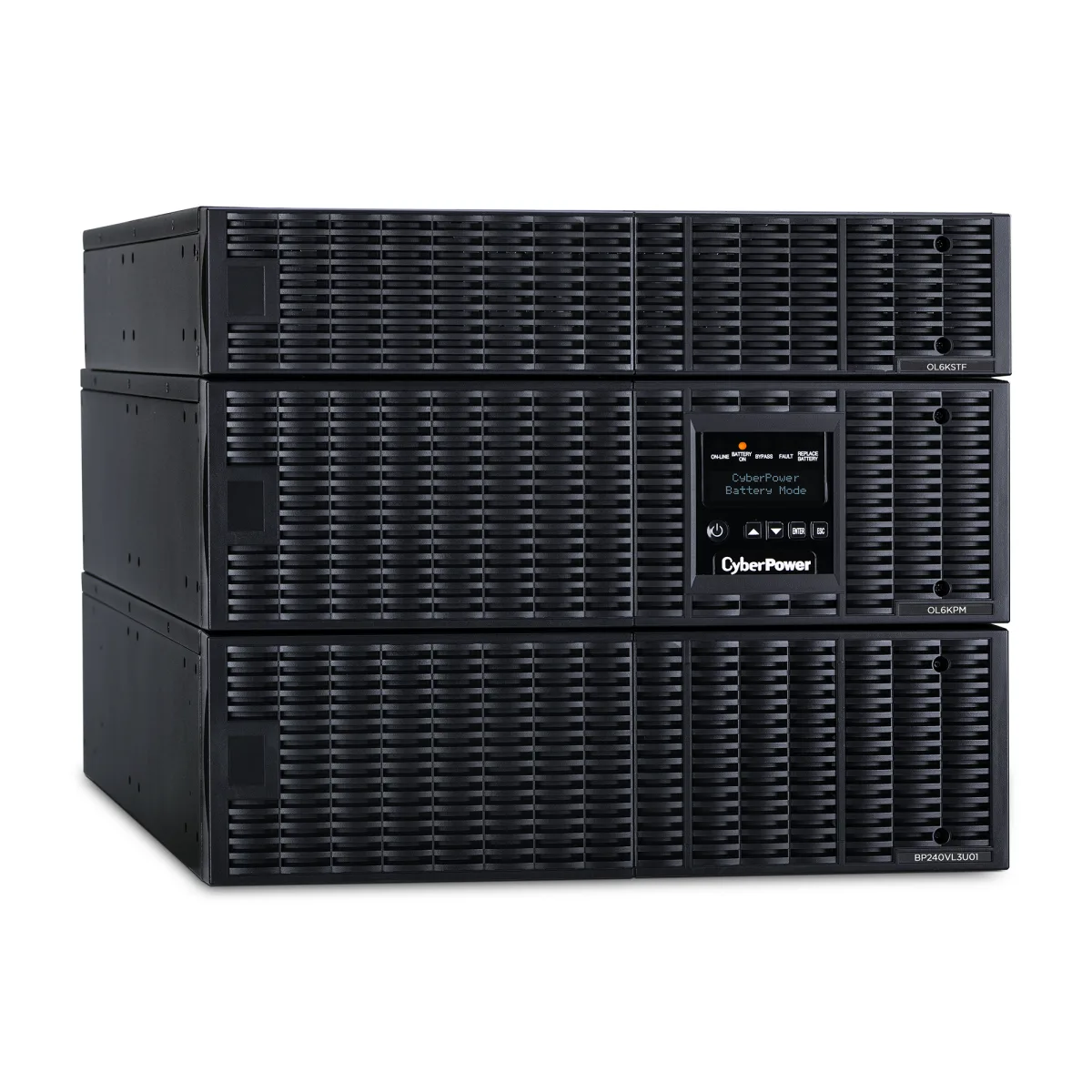

6KVA/5.4KW, online double-conversion UPS, 6KW step-down transformer included, Sine wave output, 8U rack/tower convertible,200-240V input, 120V/208V output, 10ft NEMA L6-30P input powercord, (6) NEMA 5-20R, (2) NEMA L6-20R, (1) NEMA L6-30R outletsand (1) hardwire output, LCD control panel, RMCARD205 preinstalled,EPO, RS-232/USB, 3 year warranty

Specifications

Battery

Battery technology Sealed Lead Acid (VRLA)
Battery capacity 7 Ah
Number of batteries supported 20
Typical backup time at half load 15 min
Typical backup time at full load 5.4 min
Cold start Yes
Hot-swap battery Yes
Battery voltage 12 V

Design

Form factor Rackmount/Tower
Rack capacity 8U
Product colour Black
Safety UL 1778 5th Ed., CSA C22.2 NO.107.3-05, FCC 15 A
Display type LCD
Housing material Steel

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 45 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 590551.2" (0 - 15000 m)

Packaging data

Cables included Phone (RJ-11), Serial, USB cable
Rack mount kit Yes
Quick installation guide Yes

Performance

LED indicators Yes
Audible alarm modes Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology Double-conversion (Online)
Waveform Sine
Noise level 65 dB
Audible alarm(s) Yes
EMI/RFI noise filtering Yes
Overload capacity - line mode (1 minute) 125%

Ports & interfaces

AC outlets quantity 10 AC outlet(s)
AC outlet types NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
Power plug NEMA L6-30P
Cable length 118.1" (3 m)
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 1
Serial ports quantity 1
USB port Yes
USB port type USB Type-B
Serial interface type RS-232
Modem (RJ-11) ports 2
Serial interface Yes
Socket circuit breaker Yes

Power

Input operation voltage (min) 120 V
Input operation voltage (max) 280 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Output power 5400 W
Surge energy rating 2430 J
Output power capacity 6 kVA
Input frequency 40 - 70 Hz
Crest factor 3:1
ECO mode Yes
Input power factor 0.99
Efficiency (ECO mode) 96%
Output power factor 0.9

Technical details

Compliance certificates RoHS

Weight & dimensions

Weight 318.3 lbs (144.4 kg)
Width 17" (433 mm)
Height 14" (355.6 mm)
Depth 26" (660 mm)
Package width 23.6" (600 mm)
Package height 38.1" (968 mm)
Package depth 35.4" (900 mm)
Package weight 410.1 lbs (186 kg)
