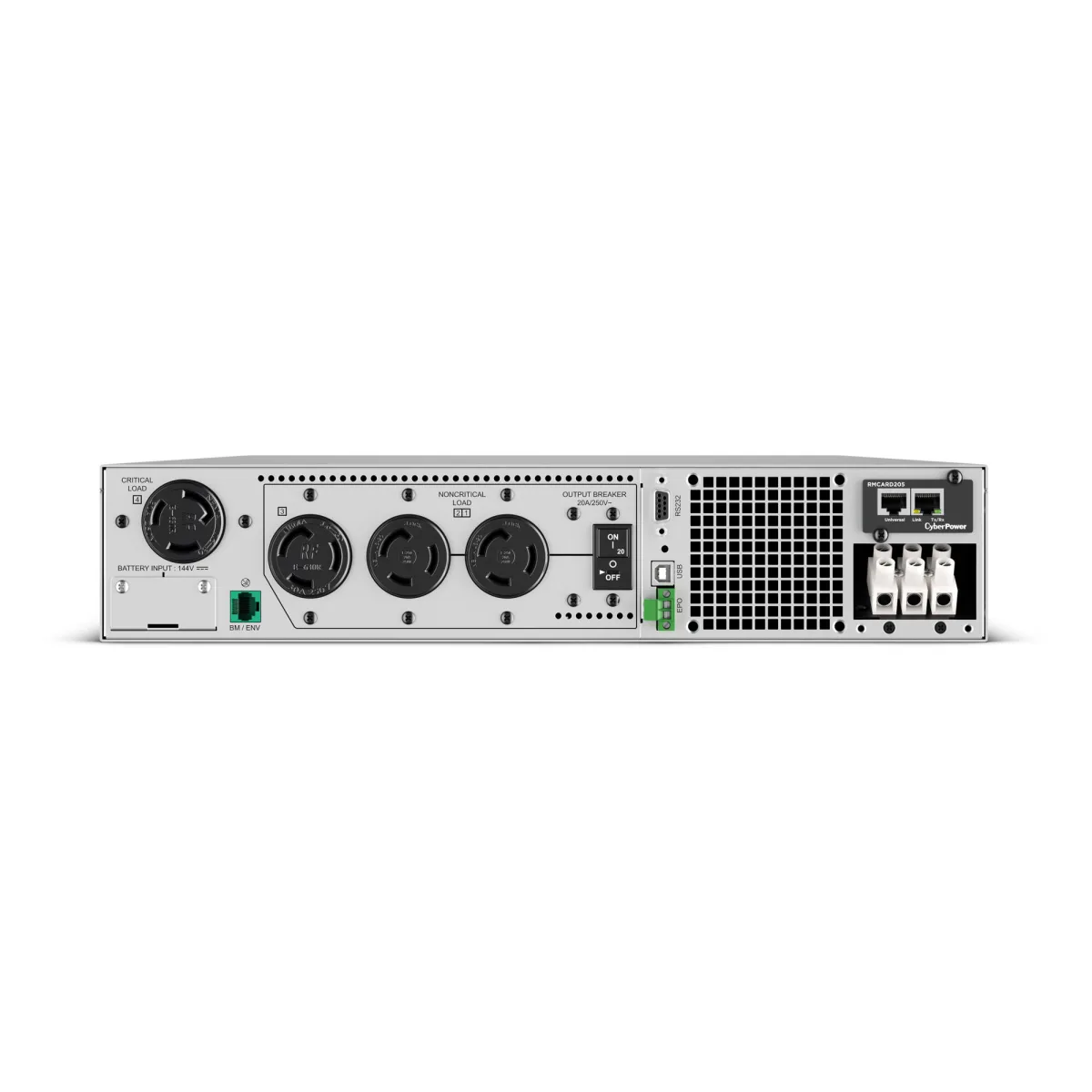

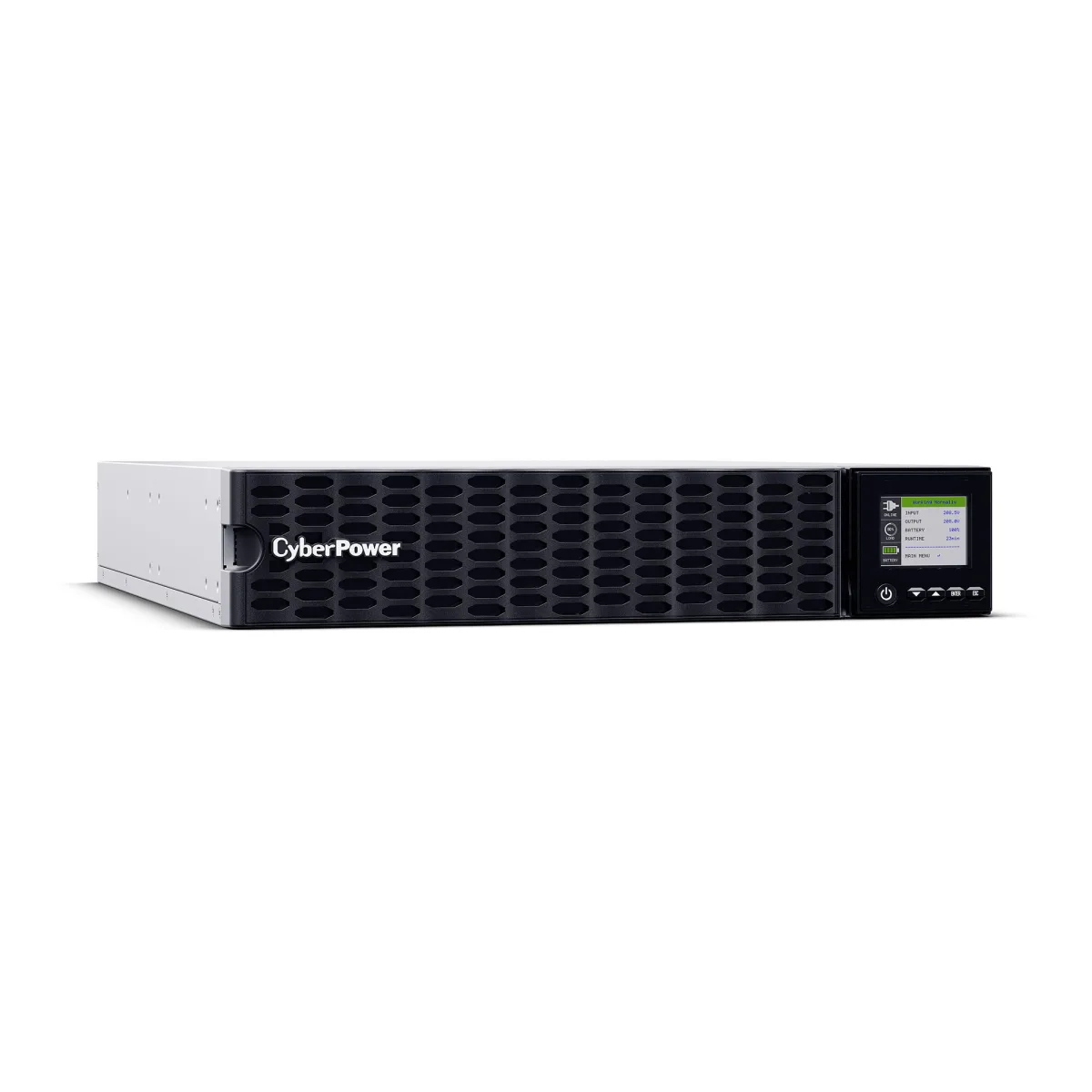

Cyberpower

6KVA 6KW ONLINE UPS PF 1 2U

Part #: OL6KRTHD Uninterruptible Power Supplies (UPSs)

$5,722.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

HD LCD 200-240V HW OR CORD RMCARD205 RT 3YR WTY Item is NOT TAA compliant

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Battery capacity	6 Ah
Number of batteries supported	12
Cold start	Yes
Hot-swap battery	Yes
Replacement battery cartridge	RB1260X12
Battery voltage	12 V

Design

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display type	LCD
Housing material	Steel

General

Manufacturer Part Number	OL6KRTHD
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Packaging data

Manual	Yes
Cables included	RJ-45, USB cable
Rack mount kit	Yes

Performance

LED indicators	Battery replacement, Fault, Power
Audible alarm modes	Fault, Low battery alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	65 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload, Short circuit

Physical

Weight	92.4 lb

Ports & interfaces

AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA 6–20R, NEMA 6–30R
Power plug	Hardwire
Ethernet LAN (RJ-45) ports	1
Modem (RJ-11) ports	1

Power

Input operation voltage (min)	120 V
Input operation voltage (max)	280 V
Output operation voltage (min)	120 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output power	6000 W
Output power capacity	6 kVA
Input frequency	40/70 Hz
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	5%
Power factor	1
Input power factor	0.99
Output power factor	1

Technical details

Compliance certificates	RoHS
Sustainability compliance	Yes

Weight & dimensions

Width	17" (431 mm)
Height	3.39" (86 mm)
Depth	28.3" (718 mm)
Package width	23.6" (599.4 mm)
Package height	8.5" (215.9 mm)
Package depth	43.3" (1099.8 mm)
Package weight	114.6 lbs (52 kg)
