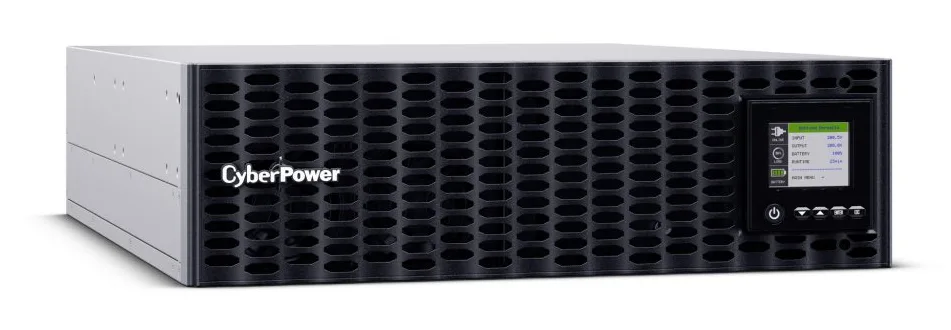

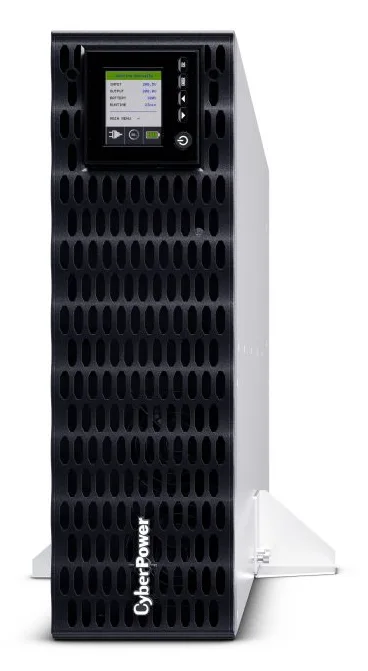

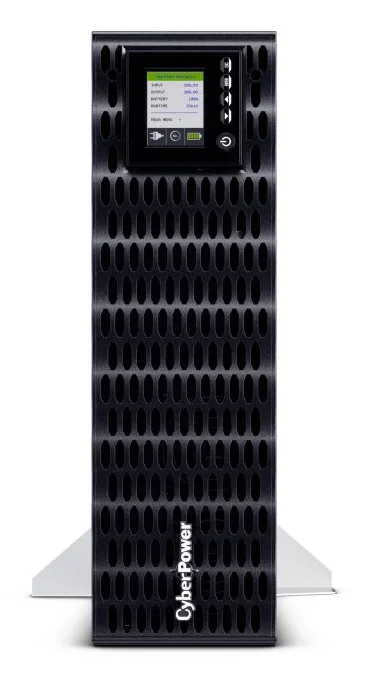

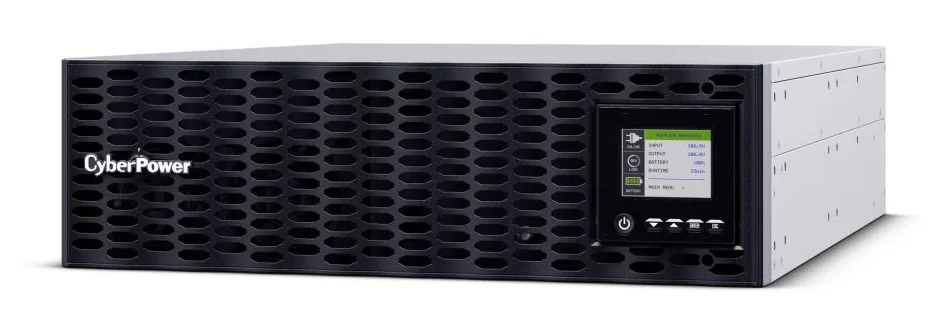

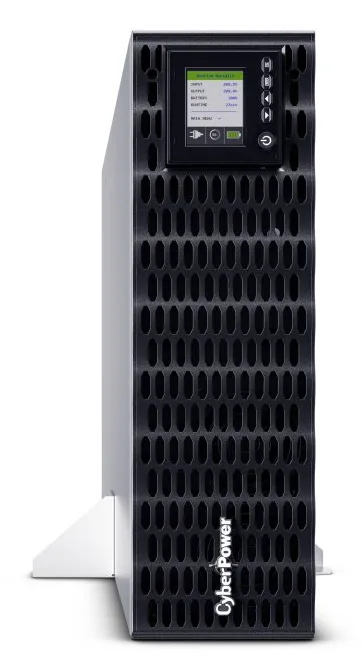

6KVA 6KW ONLINE UPS 3U

Cyberpower

6KVA 6KW ONLINE UPS 3U

Part #: OL6KRTHDL Uninterruptible Power Supplies (UPSs)

$7,553.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

L6-30P 200-240V PF=1 RMCARD RT 3YR WTY

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	10.4 min
Typical backup time at full load	3.1 min
Cold start	Yes
Hot-swap battery	Yes
Automatic battery test	Yes
Replacement battery cartridge	RB1290X12
Battery replacement accessibility	End-user

Design

Form factor	Rackmount
Rack capacity	3U
Product colour	Black
Display type	LCD

Features

Heat dissipation	1307 BTU/h

General

Manufacturer Part Number	OL6KRTHDL
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)

Performance

LED indicators	Power
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	66 dB
EMI/RFI noise filtering	Yes
Number of output phases	1
Number of input phases	1

Physical

Weight	143.25 lb

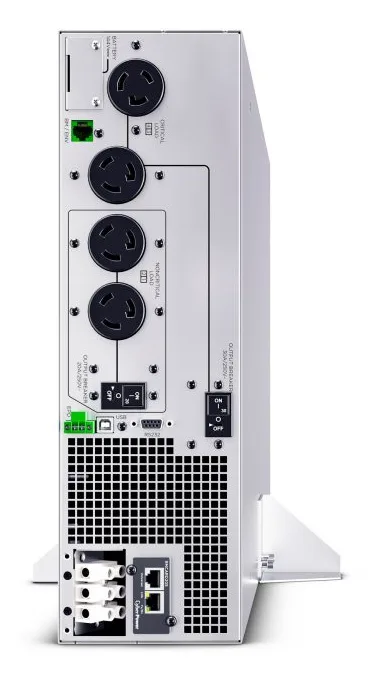

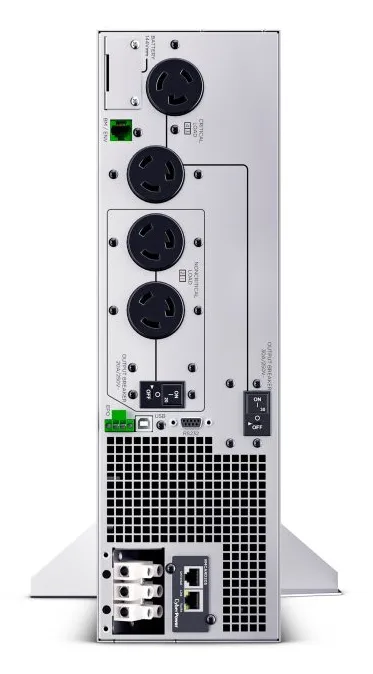

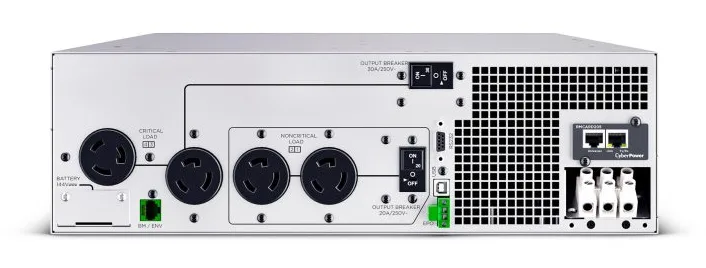

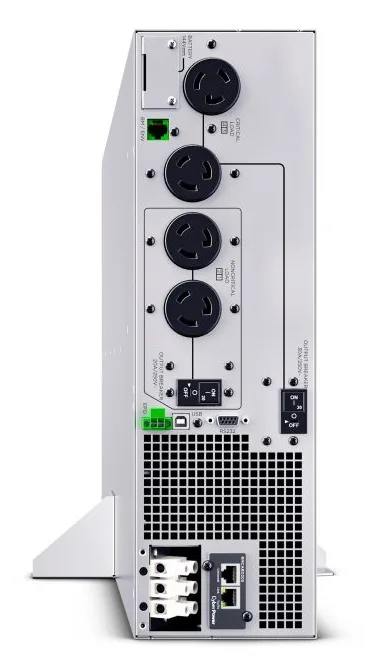

Ports & interfaces

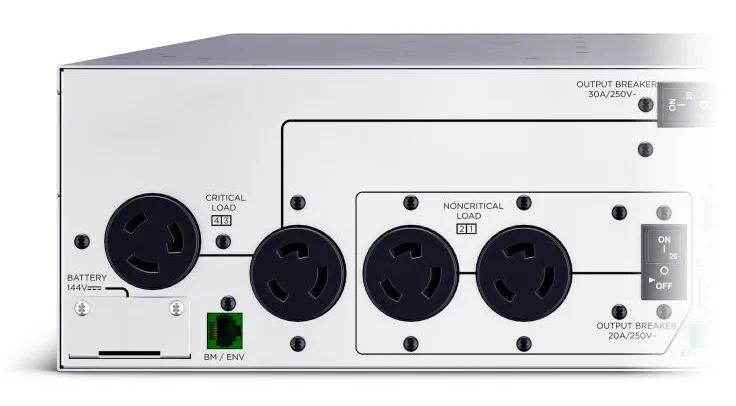

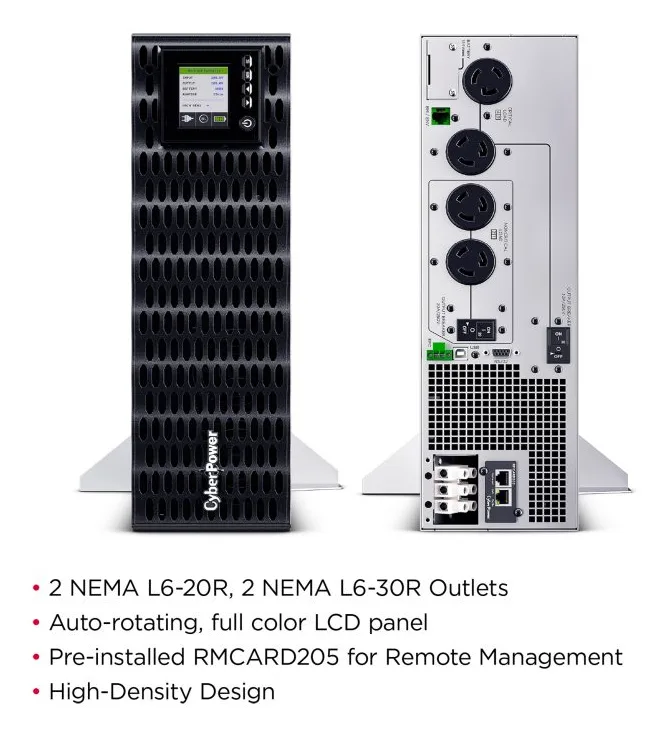

AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P

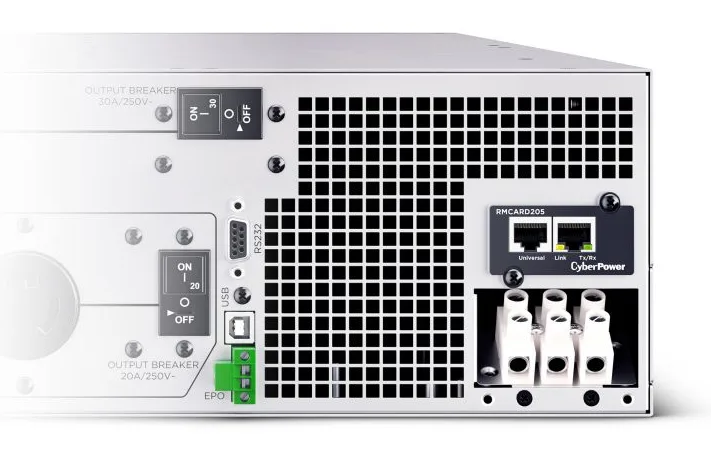

USB 2.0 ports quantity	1
Serial ports quantity	1
USB port	Yes
USB port type	USB Type-B
Serial interface type	RS-232
Serial interface	Yes
RS-232 ports	1

Power

Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	196 V
Output operation voltage (max)	245 V
Maximum current	30 A
Output frequency	50/60 Hz
Output power	6000 W
Surge energy rating	2430 J
Output power capacity	6 kVA
Input frequency	50/60 Hz
Output frequency regulation	1 Hz
Efficiency	96%
Output voltage regulation	2%

Technical details

Compliance certificates	UL, cUL, CSA, Federal Communications Commission (FCC)

Weight & dimensions

Width	23.6" (599.4 mm)
Height	11.4" (289.6 mm)
Depth	43.3" (1099.8 mm)
