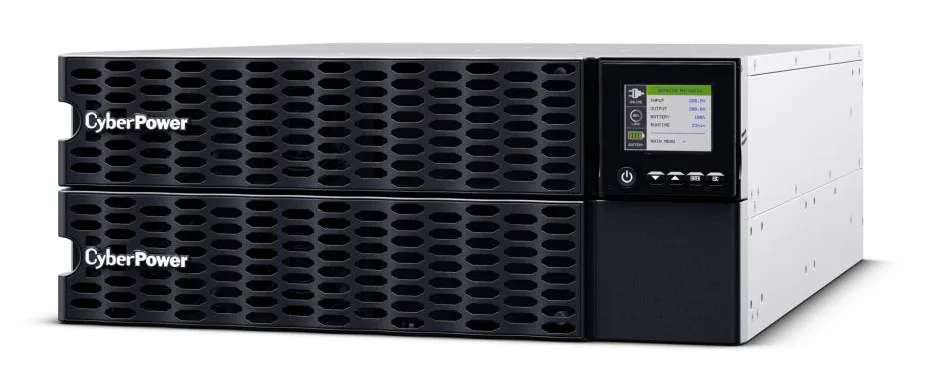

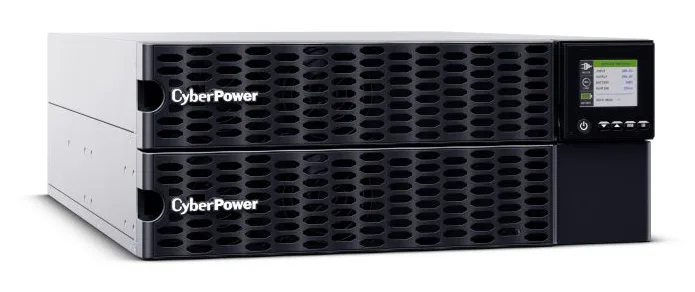

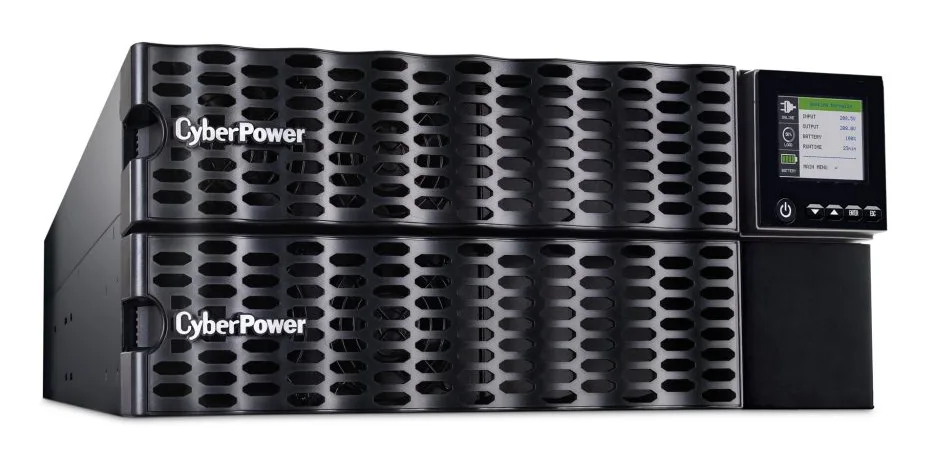

8KVA/8KW ONLINE UPS PF=1 4U

Cyberpower

8KVA/8KW ONLINE UPS PF=1 4U

Part #: OL8KRTHD Uninterruptible Power Supplies (UPSs)

$8,011.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

HARDWIRE 200-240V RMCARD RT 3YR WTY

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Battery capacity	9 Ah
Number of batteries supported	16
Typical backup time at half load	11 min
Typical backup time at full load	3.8 min
Cold start	Yes
Hot-swap battery	Yes
Automatic battery test	Yes
Replacement battery cartridge	BP192VL2U01
Battery replacement accessibility	Non-removable
Battery voltage	12 V

Design

Form factor	Rackmount
Rack capacity	4U
Product colour	Black

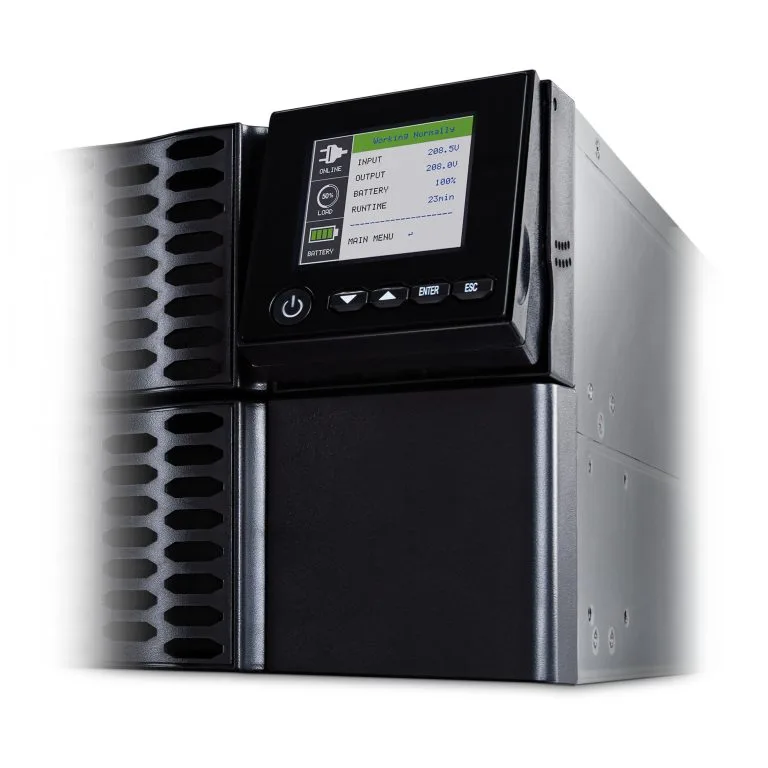

Display type	LCD
Control type	Buttons

Features

Heat dissipation	1589 BTU/h

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)

Packaging content

Cables included	USB cable

Performance

LED indicators	Power
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	66 dB
EMI/RFI noise filtering	Yes
Number of output phases	1
Number of input phases	1

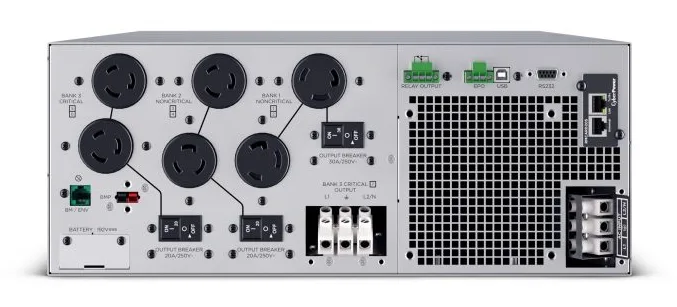

Ports & interfaces

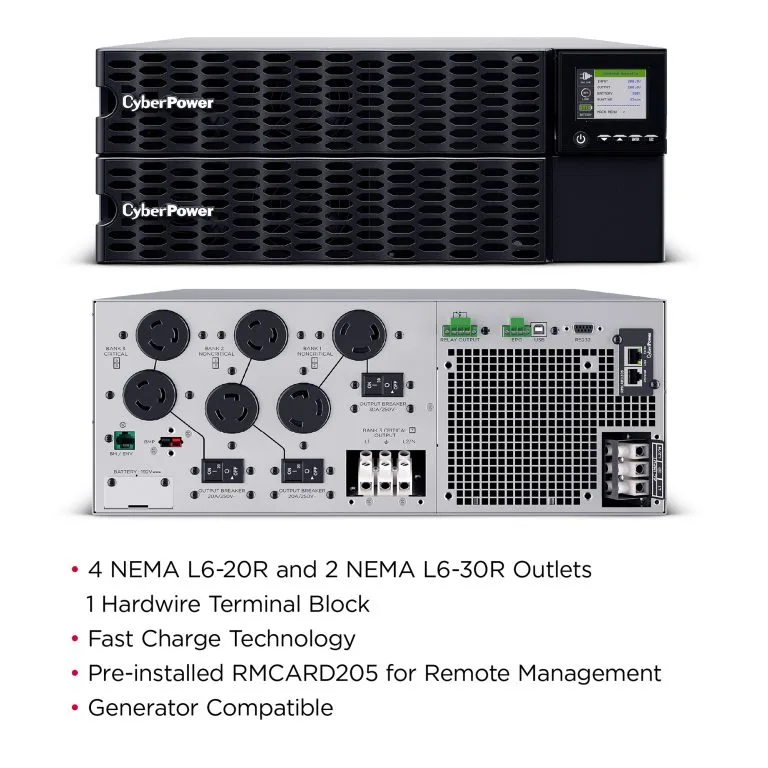

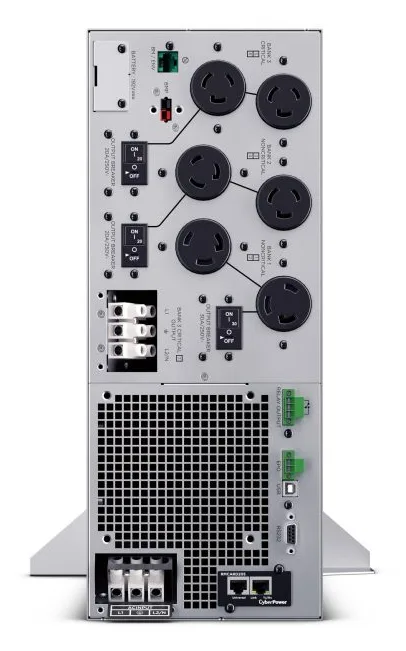

AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port	Yes
USB port type	USB Type-B
Serial interface type	RS-232
Serial interface	Yes
RS-232 ports	1

Power

Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	196 V
Output operation voltage (max)	245 V
Maximum current	60 A
Output frequency	50/60 Hz
Output power	8000 W
Surge energy rating	2430 J
Output power capacity	8 kVA
Input frequency	50/60 Hz
Output frequency regulation	1 Hz
Efficiency	98%
Output voltage regulation	2%

Technical details

Compliance certificates	UL, cUL, CSA, Federal Communications Commission (FCC), RoHS

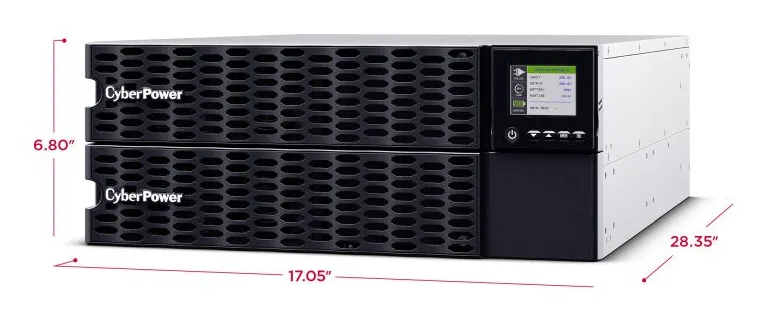

Weight & dimensions

Weight	157 lbs (71.2 kg)
Width	17" (433 mm)
Height	6.81" (173 mm)
Depth	28.3" (720 mm)
Package width	35" (890 mm)
Package height	17.8" (452.1 mm)
Package depth	23.2" (590 mm)
Package weight	200 lbs (90.7 kg)
Package type	Box
