20A METERED PDU 0U 26 OUT 5-20R 120V 26F OUT L5-20P 10FT CORD
Cyberpower

20A METERED PDU 0U 26 OUT 5-20R 120V 26F OUT L5-20P 10FT CORD

Part #: PDU20MVT26F Power Distribution Units (PDUs)

$279.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

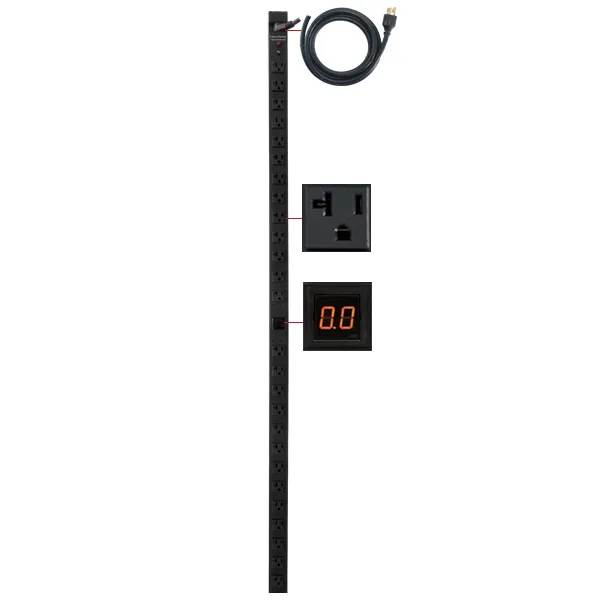

The CyberPower 26-outlet (26 Front) 0U vertical rack mount metered power distribution unit (PDU20MVT26F) provides 120V 20A output. It distributes power to 26 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 26 NEMA 5-20R (26 Front) output receptacles
- Single NEMA L5-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- Front LCD for real-time load monitoring
- 60” 0U vertical rack mount
- 10-ft. power cord

Specifications

Certificates

Compliance certificates RoHS

Design

Rack capacity 0U
Product colour Black
Display LCD
Certification UL1363 CSA C22.2
PDU types Metered
Mounting Horizontal/Vertical

Ergonomics

Cable length 120.1" (3.05 m)

Management features

Monitoring Current

Operational conditions

Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 590551.2" (0 - 15000 m)

Ports & interfaces

AC outlets quantity 26 AC outlet(s)
AC outlet types NEMA 5–20R
Power plug NEMA L5-20P

Power

AC input frequency 50 - 60 Hz
Nominal input voltage 120 V
Nominal output voltage 120 V
Maximum current 20 A
Power protection features Overload

Weight & dimensions

Weight (imperial) 10.5 lbs
Dimensions (W x D x H) (imperial) 1.75 x 2.25 x 60"
