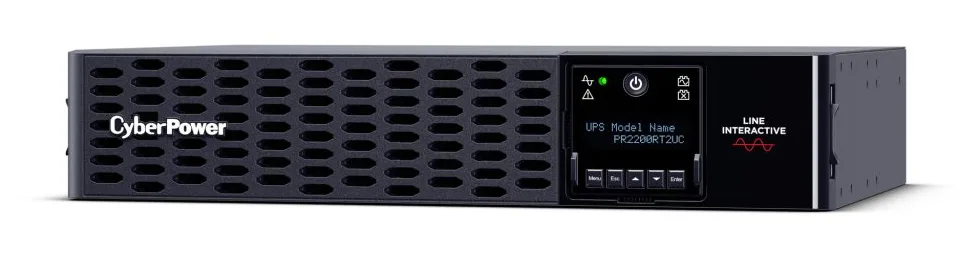

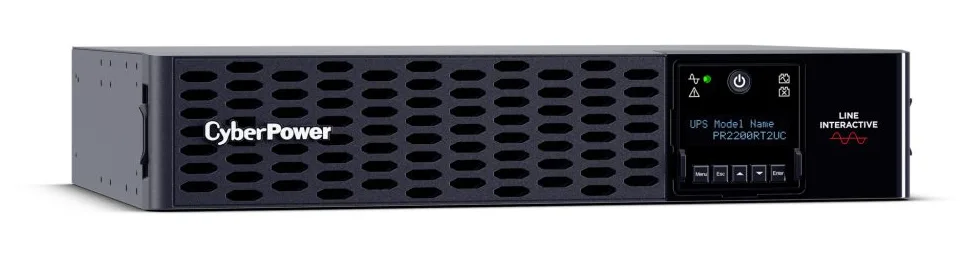

2200VA 2200W Sine Wave UPS

Cyberpower

2200VA 2200W Sine Wave UPS

Part #: PR2200RT2UC Uninterruptible Power Supplies (UPSs)

$1,495.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

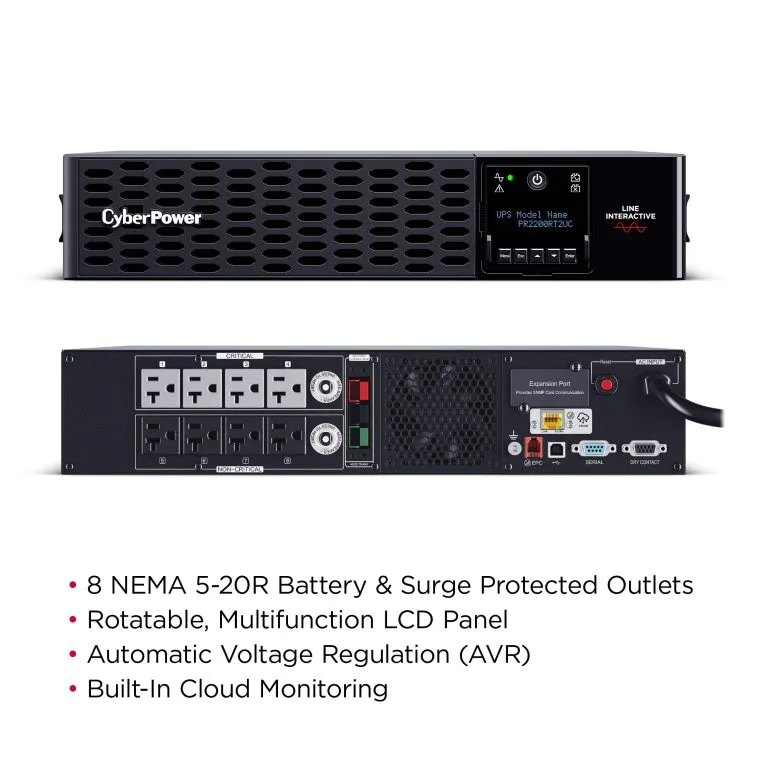

2U 8xNEMA 5-20R 10' Cord Cloud

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Battery capacity	9 Ah
Number of batteries supported	4
Typical backup time at half load	11.8 min
Typical backup time at full load	3.2 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X4J
Battery replacement accessibility	End-user
Battery voltage	12 V

Design

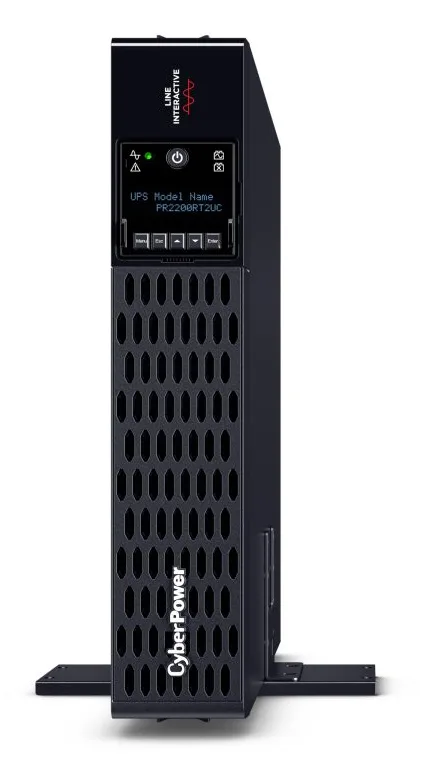

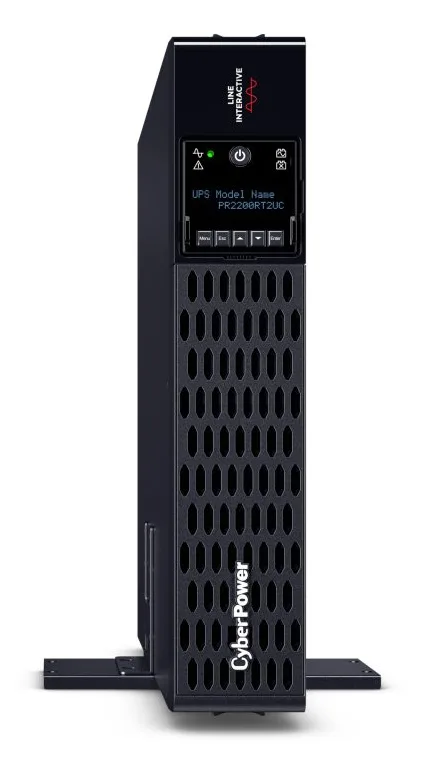

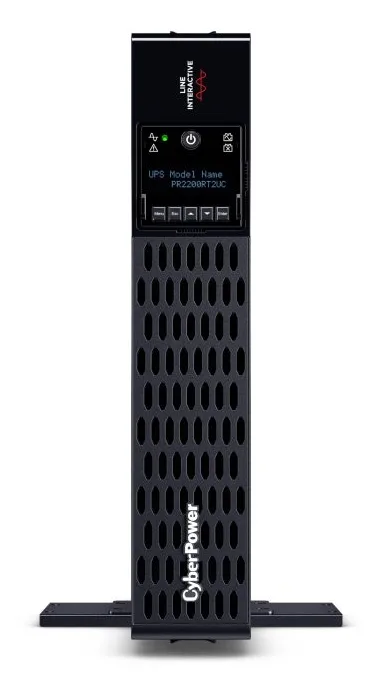

Form factor	Rackmount/Tower

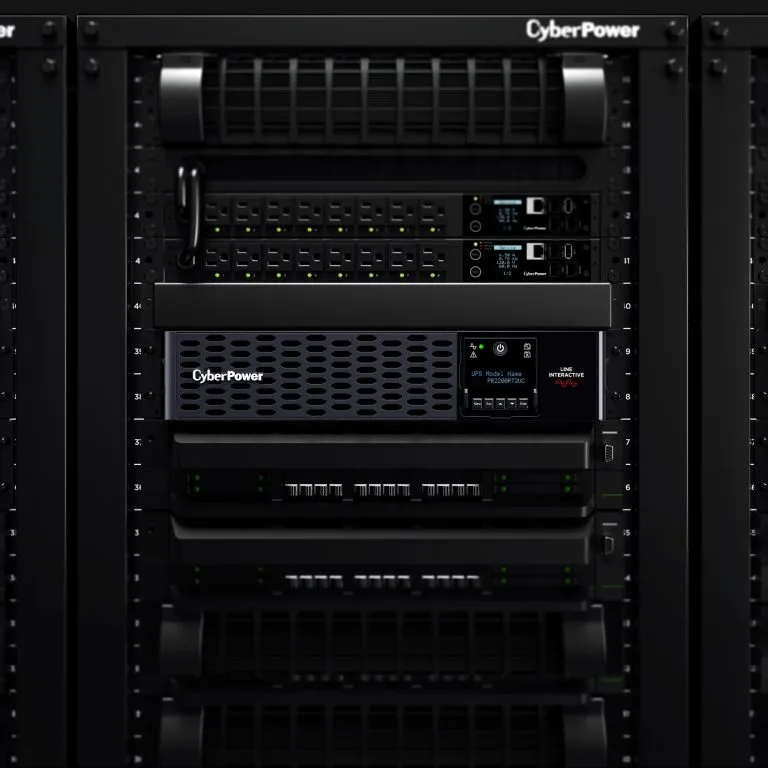

Rack capacity	2U
Product colour	Black

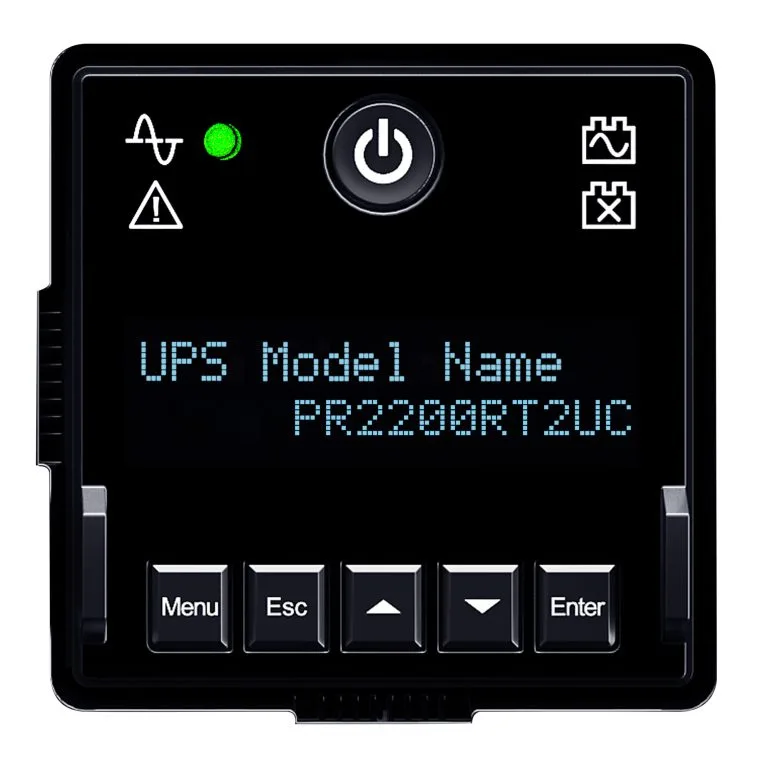

Display type	LCD
Housing material	Metal
Control type	Buttons

Features

Heat dissipation	135 BTU/h

General

Manufacturer Part Number	PR2200RT2UC
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590511.8" (0 - 14999 m)

Packaging content

Cables included	USB cable, Serial

Performance

LED indicators	Power, Fault, Battery level
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Response time	6 ms
Noise level	52.5 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes

Physical

Weight	59.8 lb

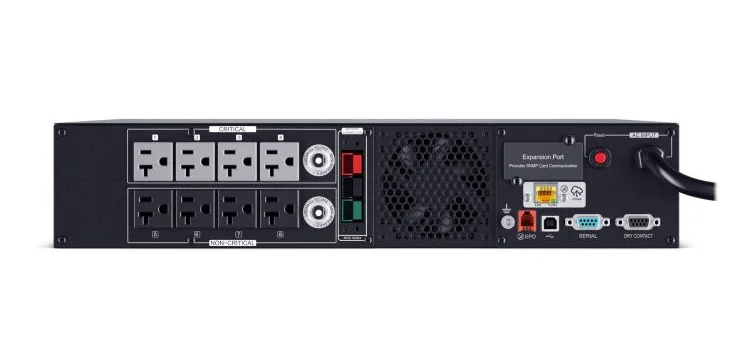

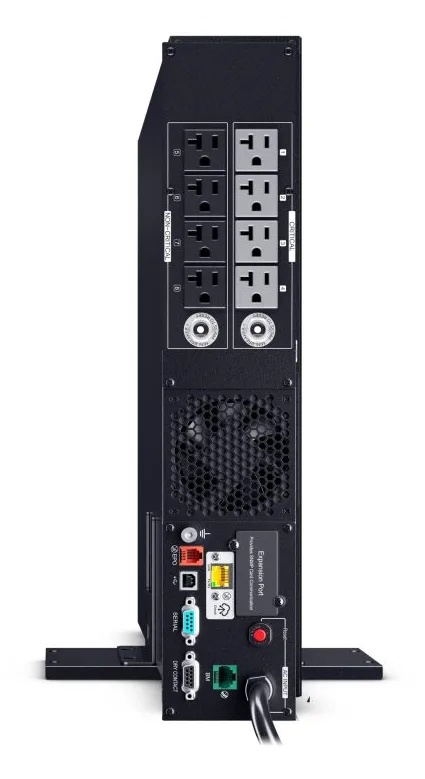

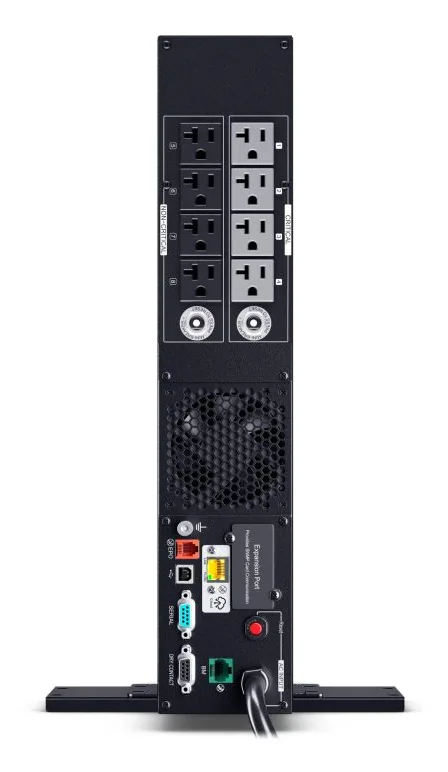

Ports & interfaces

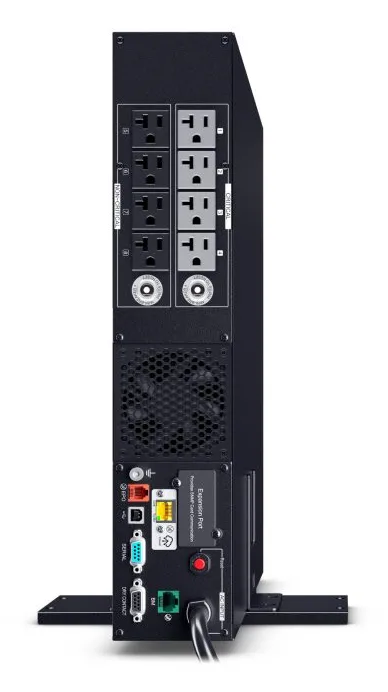

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–30
Power plug	NEMA L5-30P
Cable length	118.1" (3 m)
Serial ports quantity	1
Serial interface type	RJ-45
Serial interface	Yes

Power

Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Maximum current	15 A
Output frequency	50/60 Hz
Output power	2200 W
Surge energy rating	2430 J
Output power capacity	2.2 kVA
Input frequency	47/63 Hz
Power factor	1

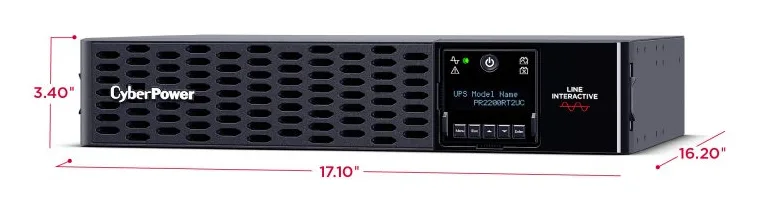

Weight & dimensions

Width	17.1" (434 mm)
Height	3.39" (86 mm)
Depth	16.2" (411 mm)
Package width	221" (5613 mm)
Package height	105" (2667 mm)
Package depth	209" (5308 mm)
Package weight	75.2 lbs (34.1 kg)
