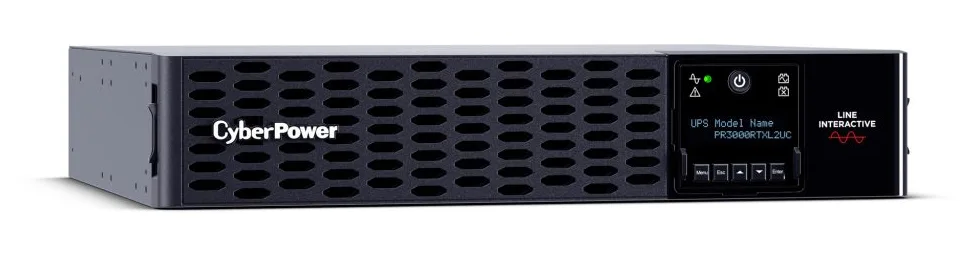

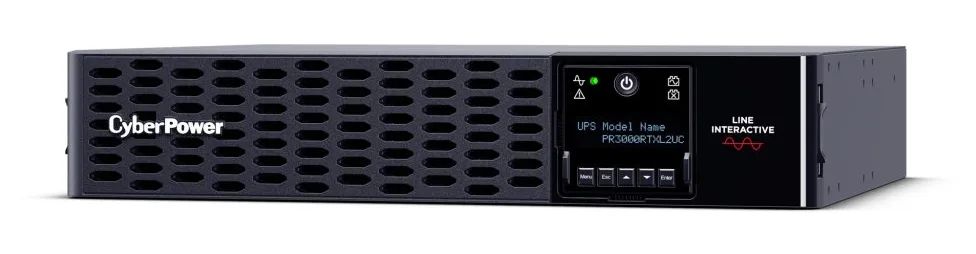

3000VA 3000W Sine Wave UPS

Cyberpower

3000VA 3000W Sine Wave UPS

Part #: PR3000RTXL2UC Uninterruptible Power Supplies (UPSs)

$2,240.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

2U 8x5-20R + 1xL5-30R, Cloud

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Battery capacity	9 Ah
Number of batteries supported	4
Typical backup time at half load	7 min
Typical backup time at full load	1.7 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X4J
Battery replacement accessibility	End-user
Battery voltage	12 V

Design

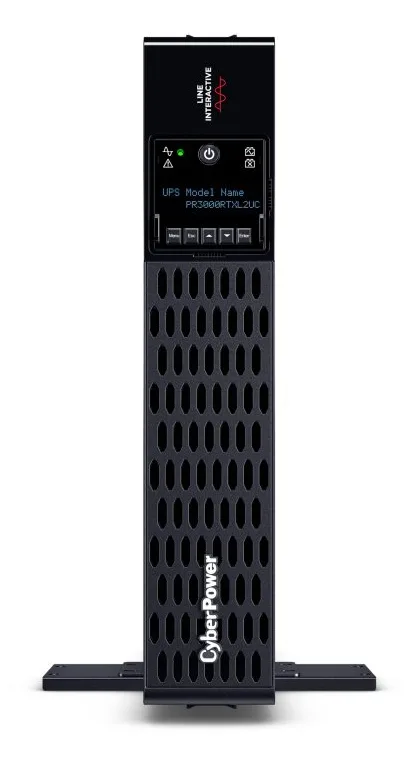

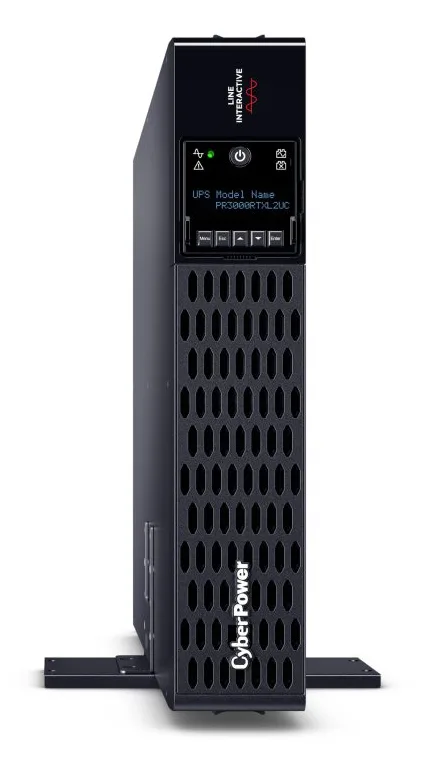

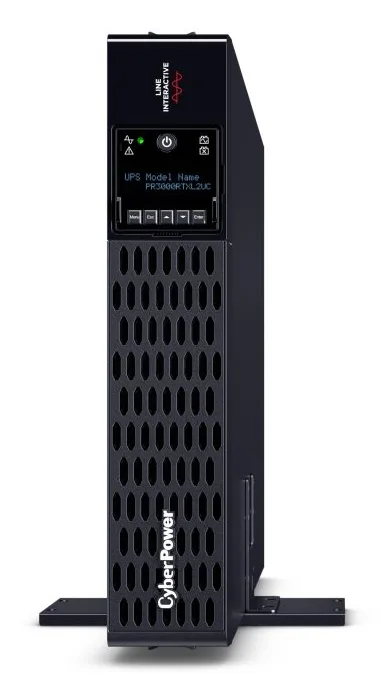

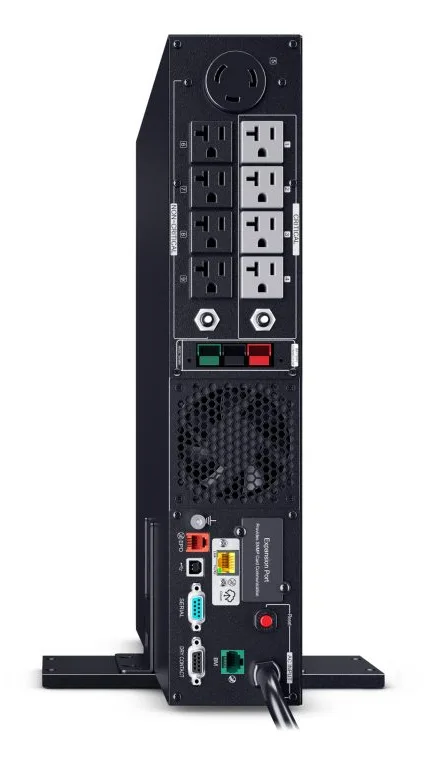

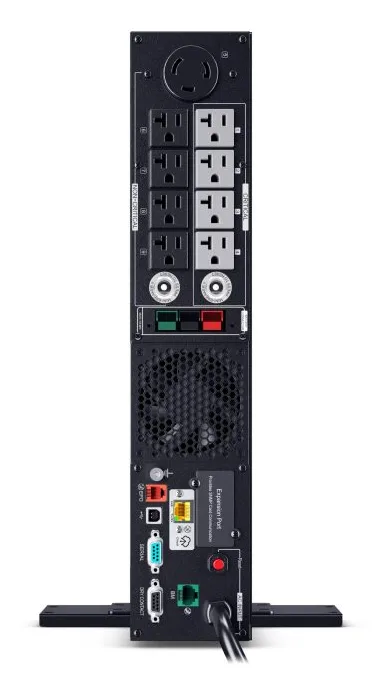

Form factor	Rackmount/Tower

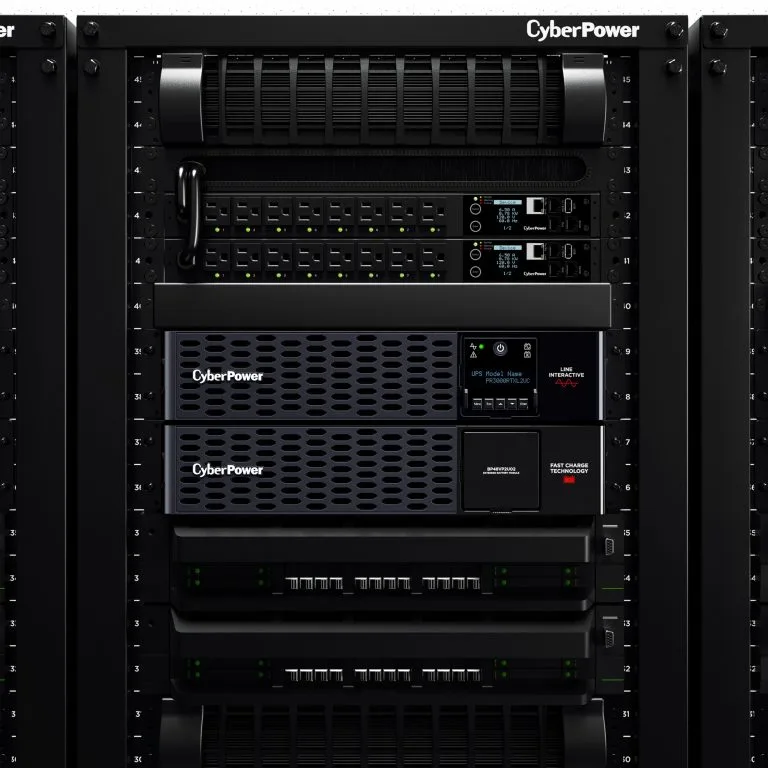

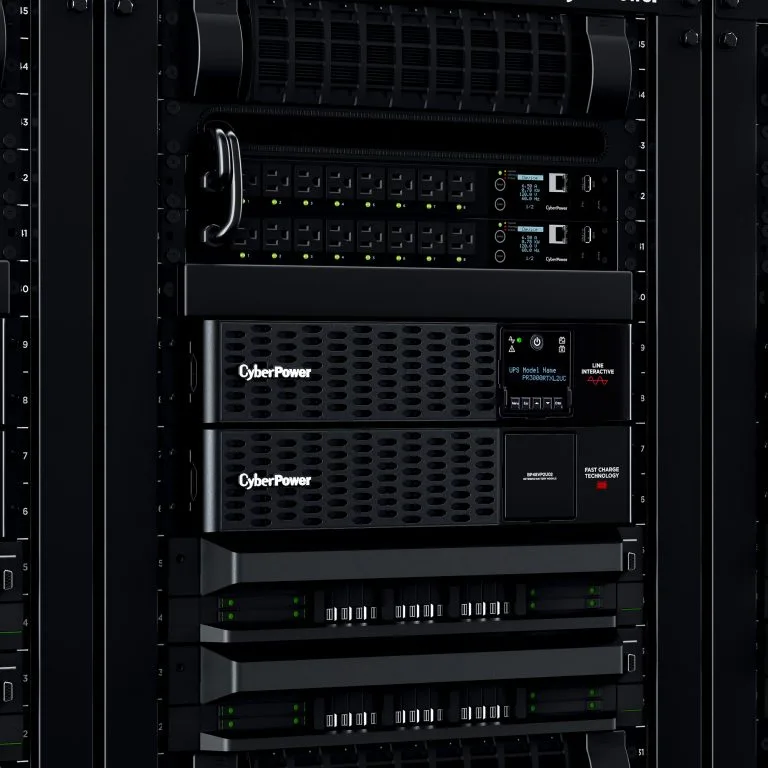

Rack capacity	2U
Product colour	Black

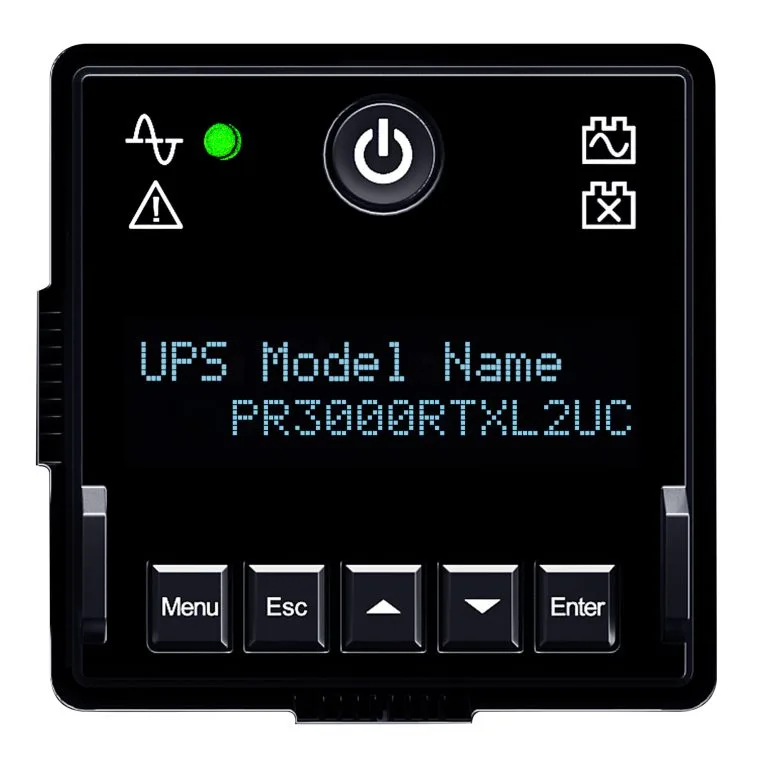

Display type	LCD
Housing material	Metal
Control type	Buttons

Features

Heat dissipation	192.5 BTU/h

General

Manufacturer Part Number	PR3000RTXL2UC
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590511.8" (0 - 14999 m)

Packaging content

Cables included	USB cable, Serial

Performance

LED indicators	Power, Fault, Battery level
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Response time	13 ms
Noise level	57.5 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes

Physical

Weight	89.3 lb

Ports & interfaces

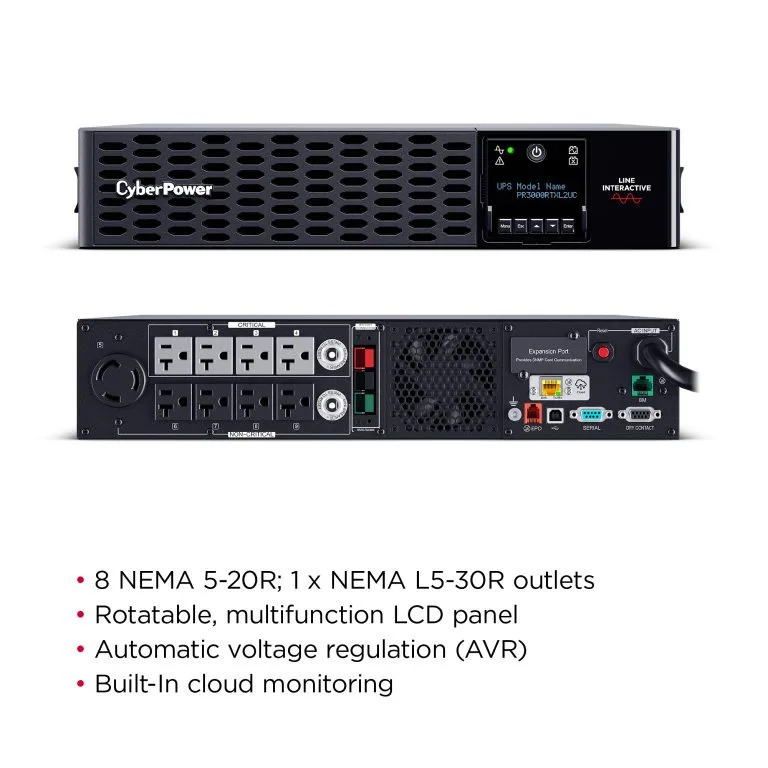

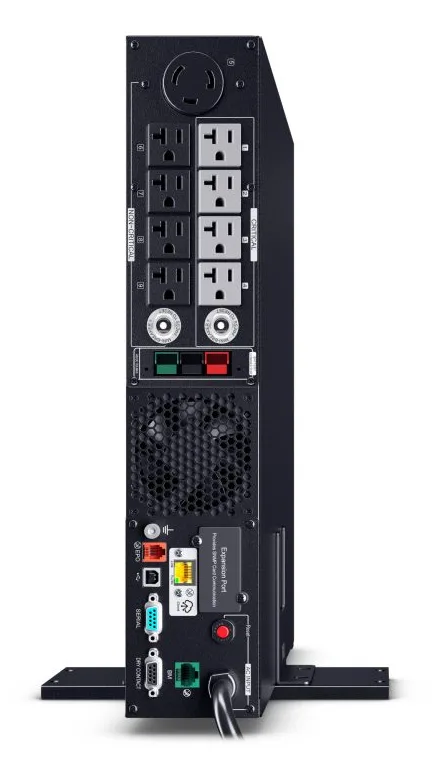

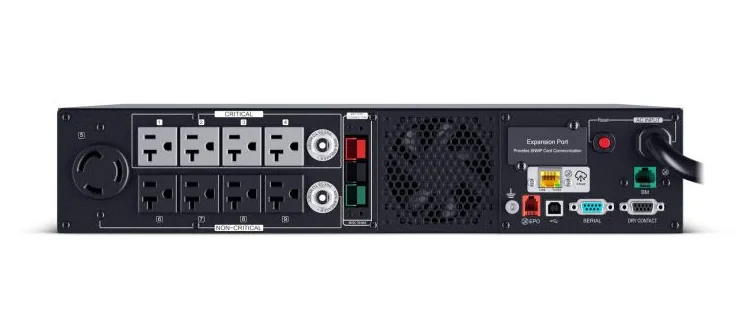

AC outlets quantity	9 AC outlet(s)
AC outlet types	NEMA L5-30R, NEMA 5–20R
Power plug	NEMA 5-20R
Cable length	118.1" (3 m)
Serial ports quantity	1
Serial interface type	RJ-45
Serial interface	Yes

Power

Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Maximum current	15 A
Output frequency	50/60 Hz
Output power	3000 W
Surge energy rating	2430 J
Output power capacity	3 kVA
Input frequency	47/63 Hz
Power factor	1

Weight & dimensions

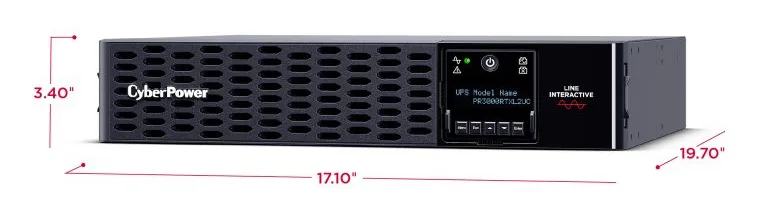

Width	17.1" (434 mm)
Height	3.39" (86 mm)
Depth	19.7" (500 mm)
Package width	217.5" (5524 mm)
Package height	105" (2667 mm)
Package depth	242.5" (6159 mm)
Package weight	89.3 lbs (40.5 kg)
