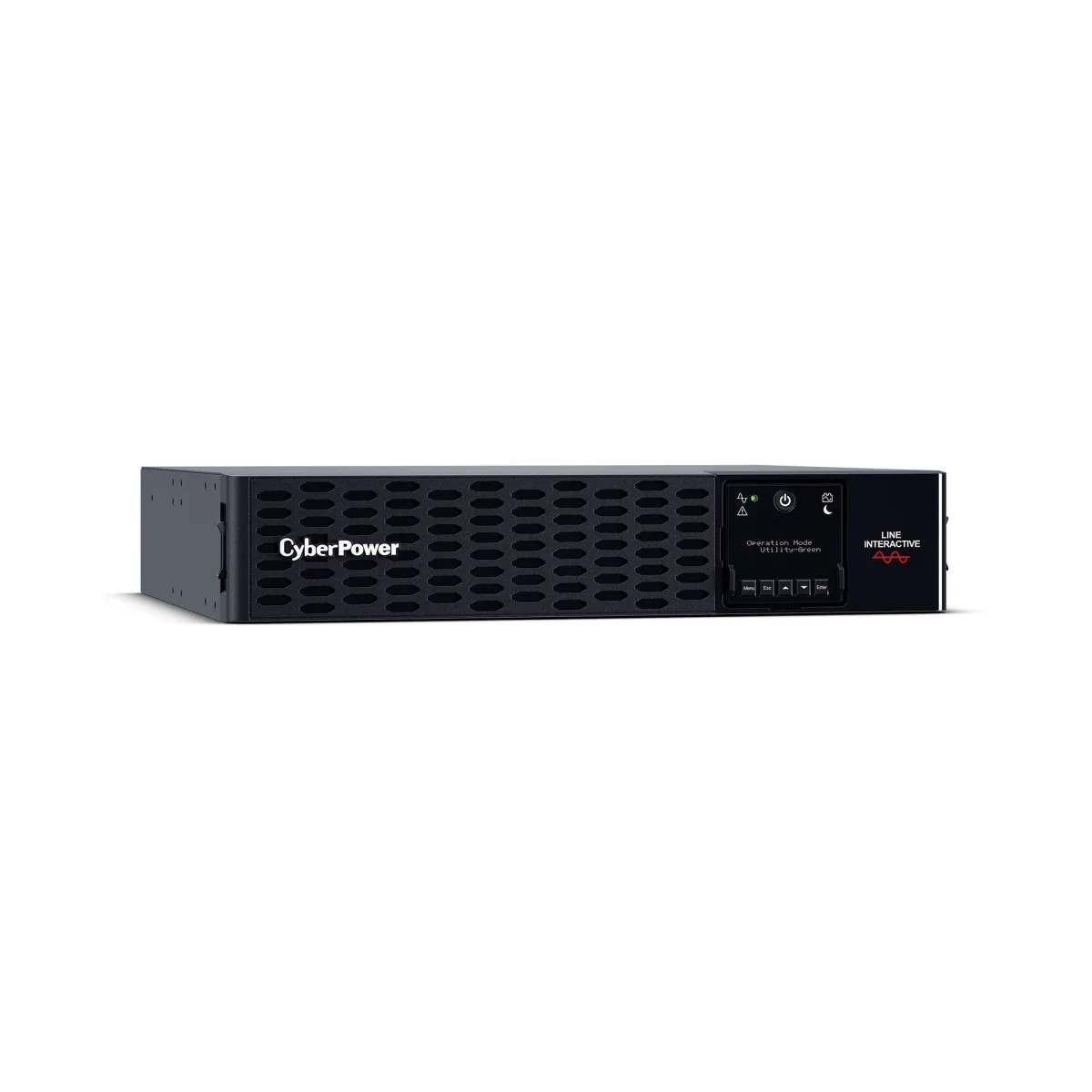

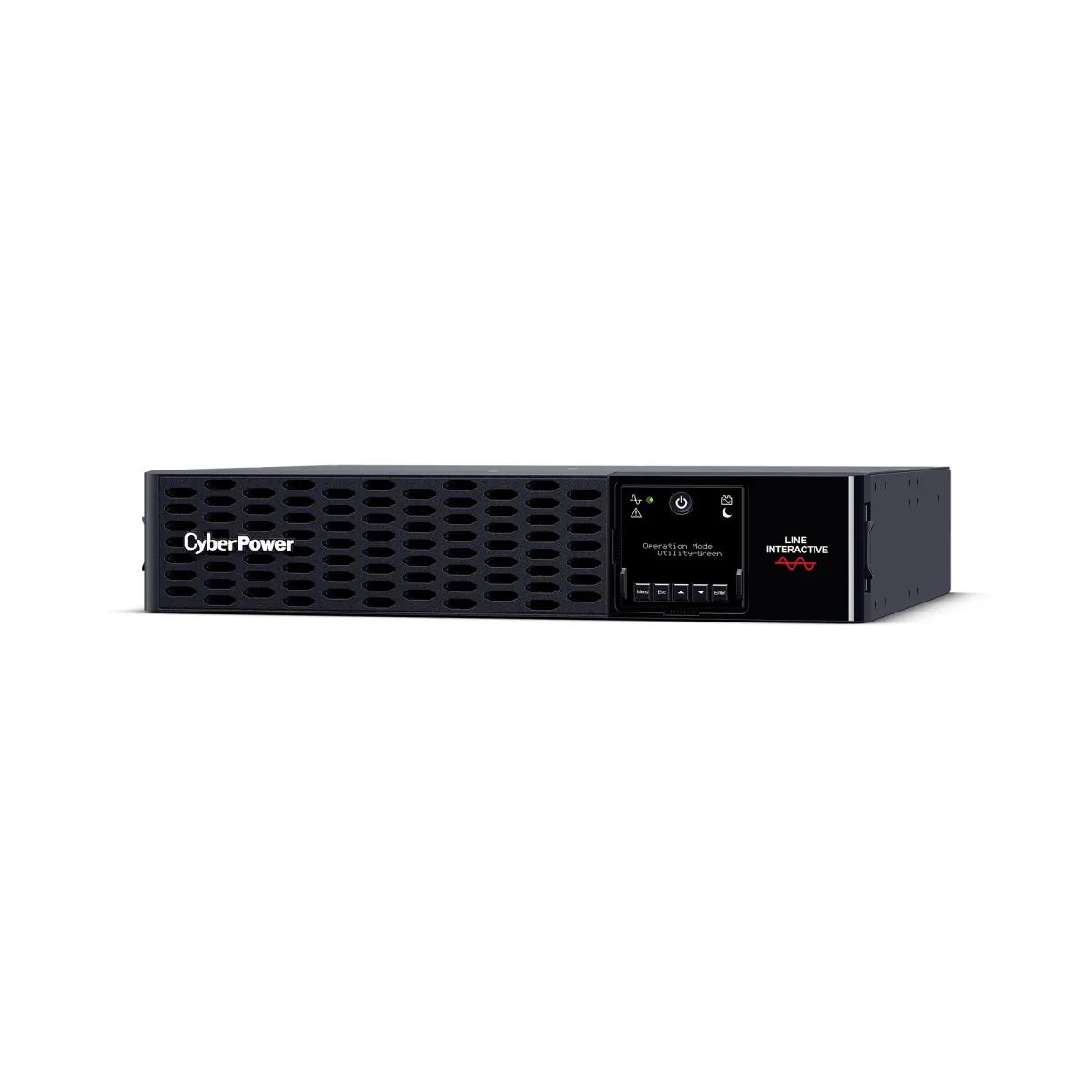

3000VA 3000W Sine Wave UPS
Cyberpower

3000VA 3000W Sine Wave UPS

Part #: PR3000RTXL2UN Uninterruptible Power Supplies (UPSs)

$1,482.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

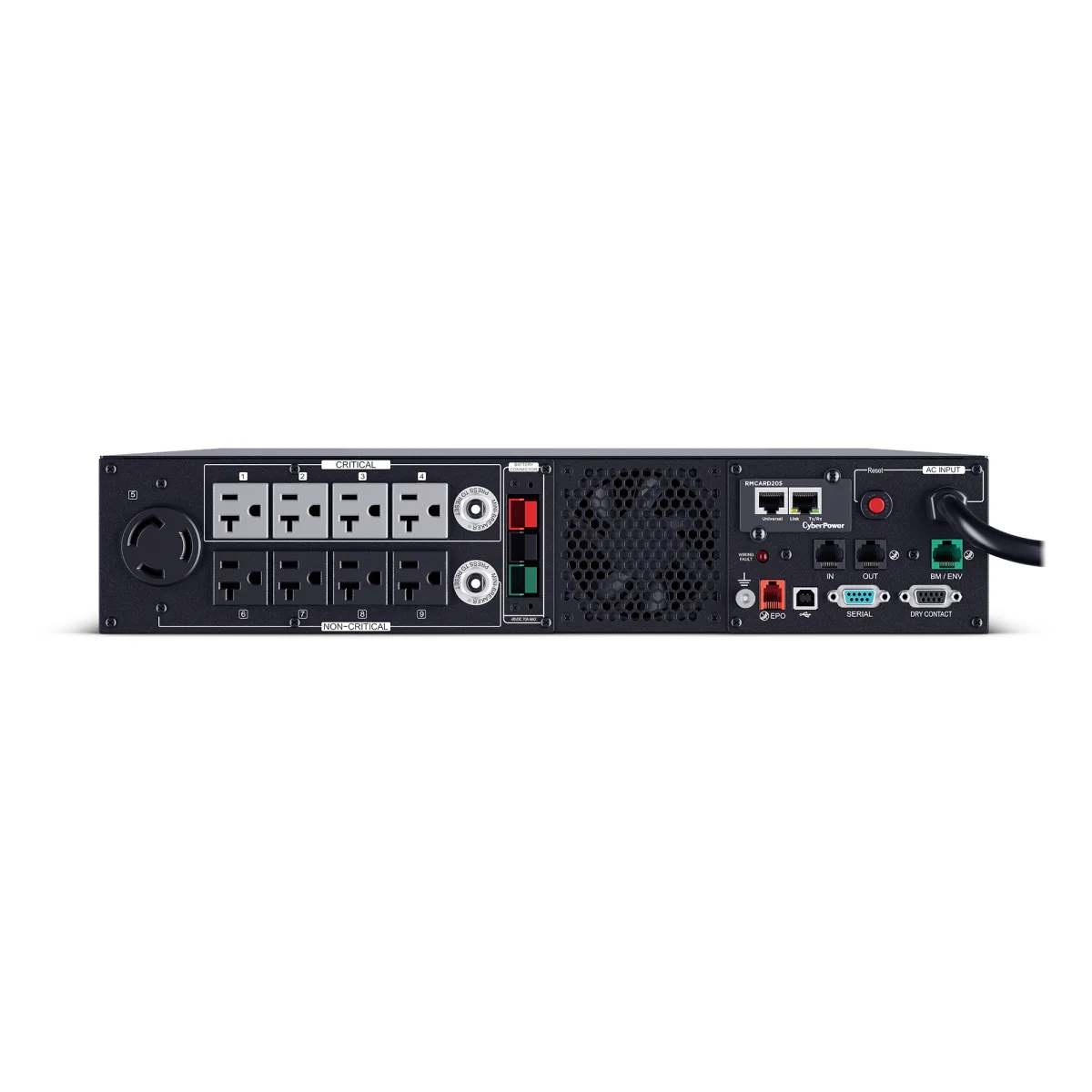

3000VA/3000W Sine Wave UPS. 2U, 8xNEMA 5-20R + 1xNEMA L5-30R, NEMA L5-30P

Specifications

Battery

Battery technology Sealed Lead Acid (VRLA)
Battery recharge time 3 h
Battery capacity 9 Ah
Typical backup time at half load 7 min
Typical backup time at full load 1.7 min
Hot-swap battery Yes
Replacement battery cartridge BP48VP2U02
Battery voltage 12 V
Number of battery cells 4

Design

Form factor Rackmount/Tower
Product colour Black
Safety UL1778, VCCI, FCC Class A
Display type LCD
Housing material Metal

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%

Packaging data

Cables included Input power cable

Performance

LED indicators Yes
Audible alarm modes Low battery alarm, Overload alarm
UPS topology Line-Interactive
Waveform Sine
Noise level 57.5 dB
Audible alarm(s) Yes
EMI/RFI noise filtering Yes
Automatic Voltage Regulation (AVR) Yes

Ports & interfaces

AC outlets quantity 9 AC outlet(s)
Power plug NEMA L5-30P
Cable length 118.1" (3 m)
Ethernet LAN (RJ-45) ports 1
USB port Yes
Emergency Power Off (EPO) connector Yes
Serial interface Yes

Power

Input operation voltage (min) 70 V
Input operation voltage (max) 155 V
Output operation voltage (min) 100 V
Output operation voltage (max) 120 V
Maximum current 30 A
Output frequency 50/60 Hz
Output power 3000 W
Surge energy rating 2430 J
Output power capacity 3 kVA
Input frequency 47/63 Hz
Output voltage regulation 5%

Technical details

Compliance certificates RoHS

Weight & dimensions

Weight 75.4 lbs (34.2 kg)
Width 17.1" (434 mm)
Height 19.7" (500 mm)
Depth 3.39" (86 mm)
Package width 22.1" (561.3 mm)
Package height 10.8" (274.3 mm)
Package depth 24.4" (619.8 mm)
Package weight 89.5 lbs (40.6 kg)
