750VA/750W Smart App UPS

Cyberpower

750VA/750W Smart App UPS

Part #: PR750LCD3C Uninterruptible Power Supplies (UPSs)

$468.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

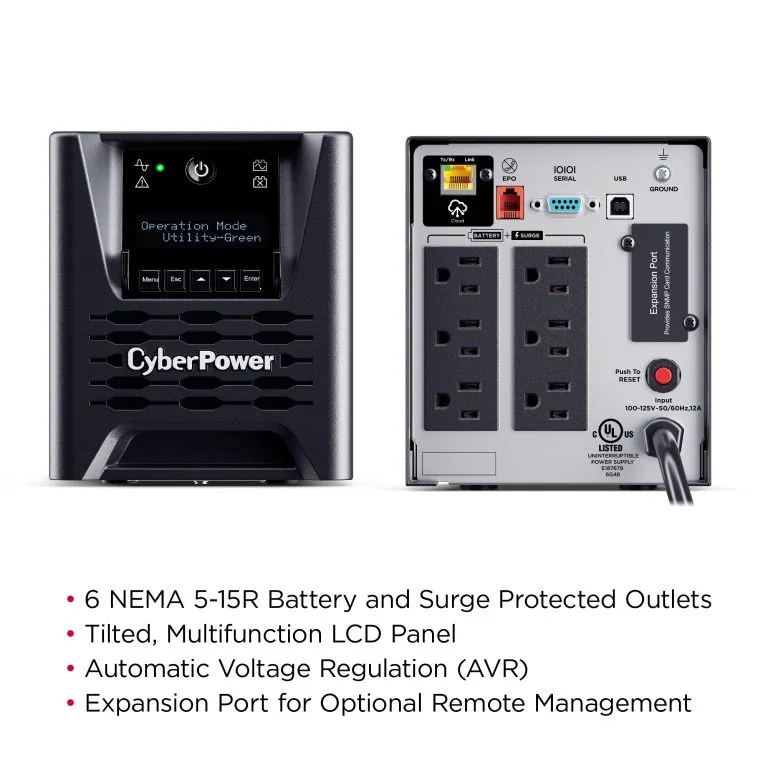

NEMA 5-15P, Tower, Sine Wave, 6 Out

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery capacity	7 Ah
Number of batteries supported	2
Typical backup time at half load	10.7 min
Typical backup time at full load	3.3 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1270X2F
Battery replacement accessibility	End-user
Battery voltage	12 V

Design

Form factor	Tower
Product colour	Black
Display type	LCD
Housing material	Metal
Control type	Buttons

Features

Heat dissipation	192.5 BTU/h

General

Manufacturer Part Number	PR750LCD3C
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)

Packaging content

Cables included	USB cable, Serial

Performance

LED indicators	Power, Fault, Battery level
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Response time	4 ms
Noise level	57.5 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes

Physical

Weight	28.95 lb

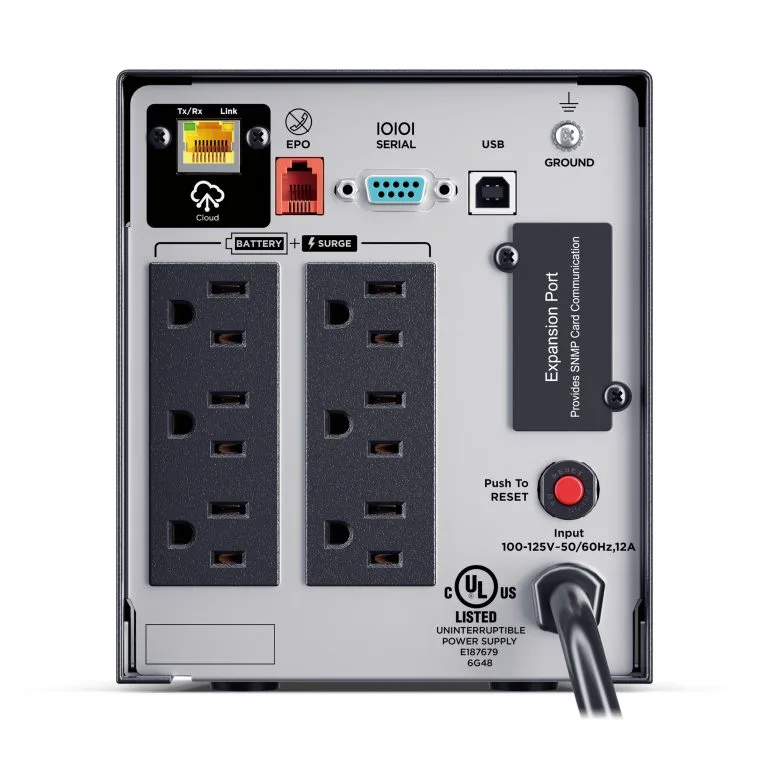

Ports & interfaces

AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Cable length	59.1" (1.5 m)
Serial ports quantity	1
Serial interface type	RJ-45
Serial interface	Yes

Power

Input operation voltage (min)	74 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Maximum current	15 A
Output frequency	50/60 Hz
Output power	750 W
Surge energy rating	1350 J
Output power capacity	0.75 kVA
Input frequency	57/63 Hz
Power factor	1

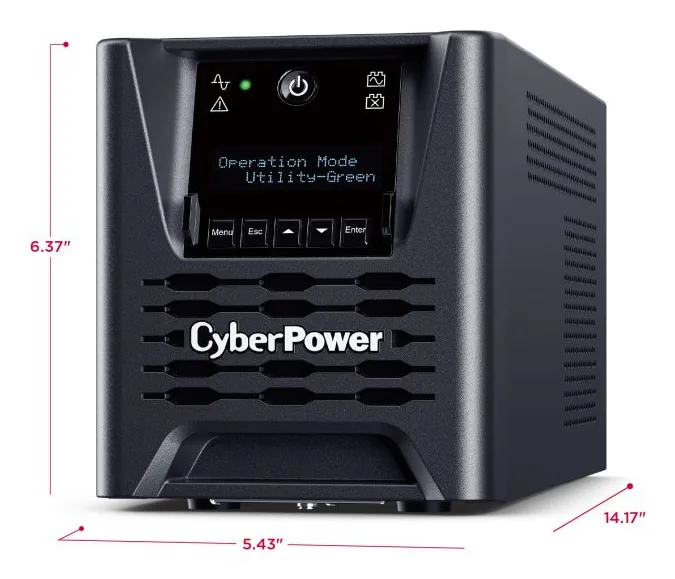

Weight & dimensions

Width	5.43" (138 mm)
Height	14.2" (360 mm)
Depth	6.38" (162 mm)
Package width	104" (2641 mm)
Package height	190" (4826 mm)
Package depth	112" (2844 mm)
Package weight	28.7 lbs (13 kg)
