Cloud Monitoring Card
Cyberpower

Cloud Monitoring Card

Part #: RCCARD100 System Components

$71.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

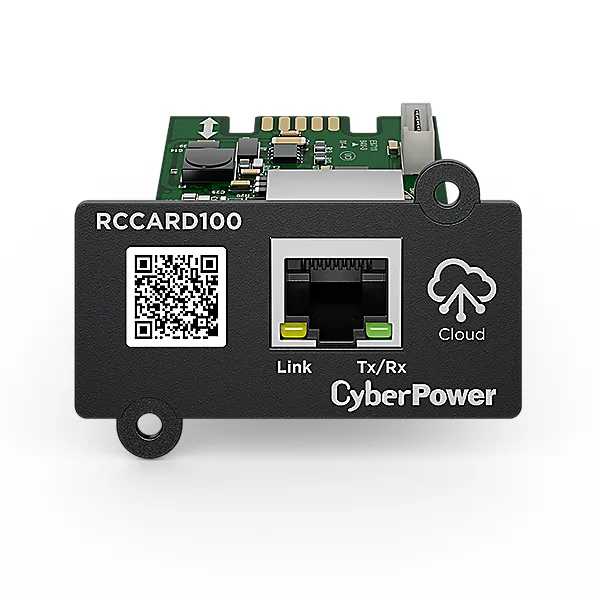

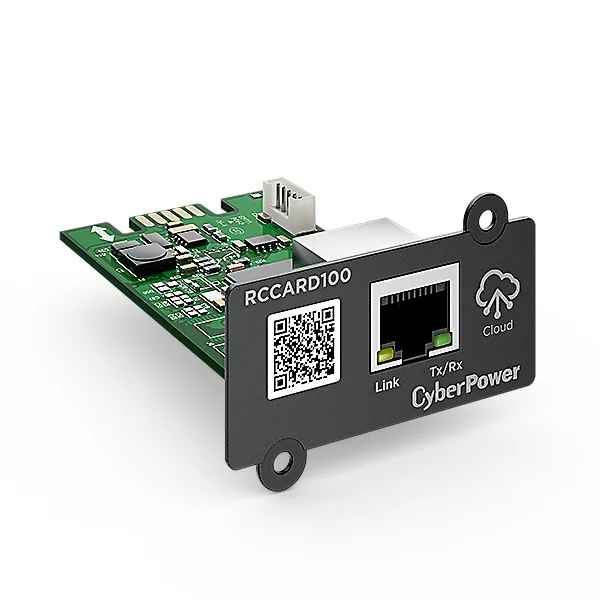

A UPS monitoring card, the CyberPower RCCARD100 monitors the operation of select CyberPower UPS that are setup with PowerPanel Cloud system. A secure web portal or mobile application is used to remotely monitor a UPS and provide notifications on power events. The RCCARD100 is a hot-swappable plug-and-play design, allowing fast installation, or replacement without interrupting the operation of the UPS. An RJ-45 Ethernet connection is used to connect the card to a network and PowerPanel Cloud. The card supports user-upgradeable firmware to keep functionality up to date.

Specifications

Bandwidth

Maximum data transfer rate 100 Mbit/s

Design

Certification CE, FCC Class B, RoHS
LED indicators TX / RX, Link
Component for PC

General

Manufacturer Part Number RCCARD100
Country of Origin PH

Network

Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Cabling technology 10/100BaseT(X)
Networking standards IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates 10,100 Mbit/s

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%

Physical

Weight 0.1 lb

Ports & interfaces

Interface Ethernet
Ethernet LAN (RJ-45) ports 1
Internal Yes
Connectivity technology Wired

Technical details

Harmonized System (HS) code 8473302000
Compliance certificates RoHS
Sustainability compliance Yes
Product colour Black, Green, Metallic
Plug and Play Yes

Weight & dimensions

Width 2.13" (54 mm)
Height 1.42" (36.1 mm)
Depth 3.01" (76.5 mm)
Package width 6.69" (170 mm)
Package height 6.5" (165 mm)
Package depth 2.36" (60 mm)
Package weight 10.6 oz (300 g)
