PWRSURE 800 PNL/HW 5KVA
Part #: T800P-05000
Quote for availability
$89.95
Quote for availability
Listed price is an estimate — this item is quoted before purchase.

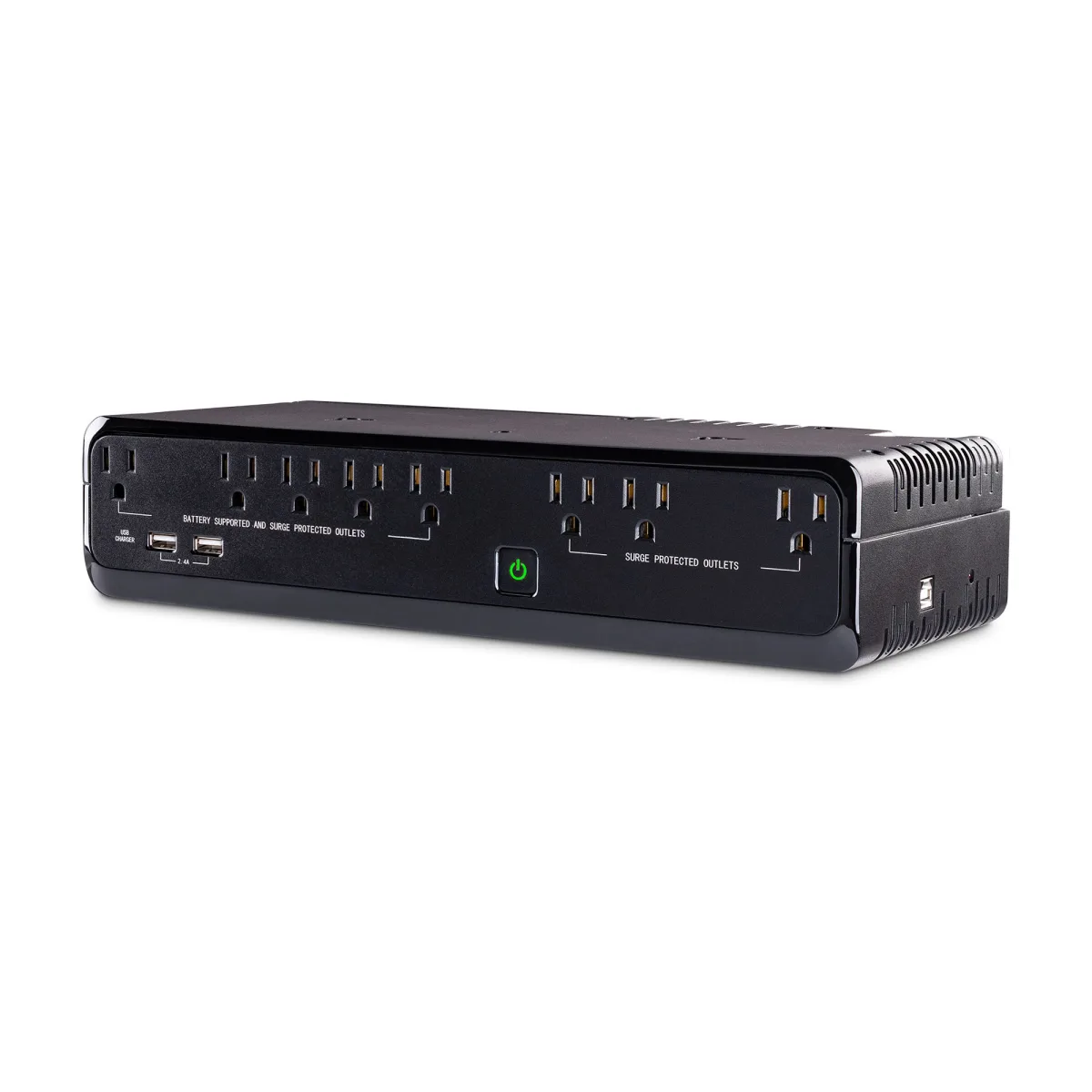

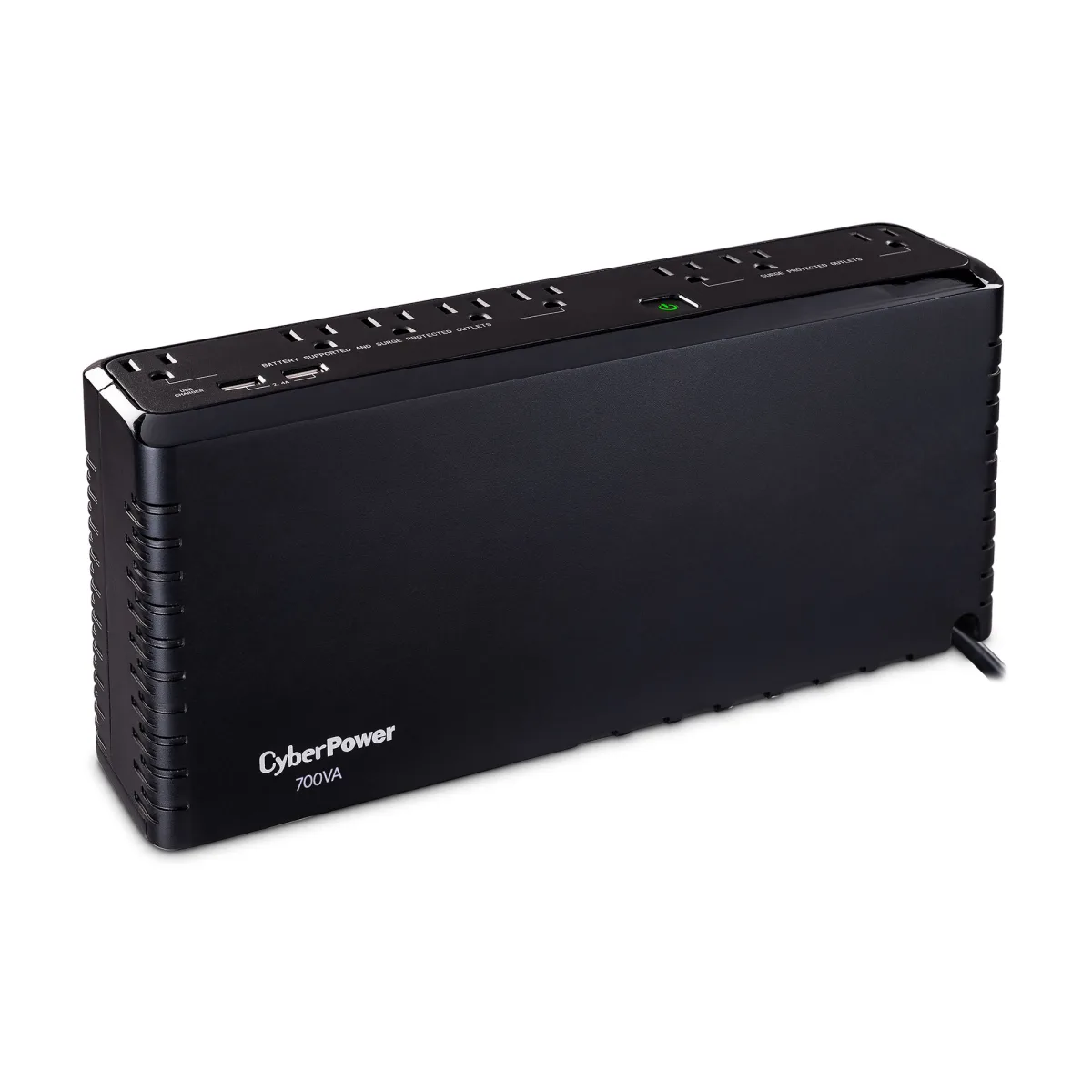

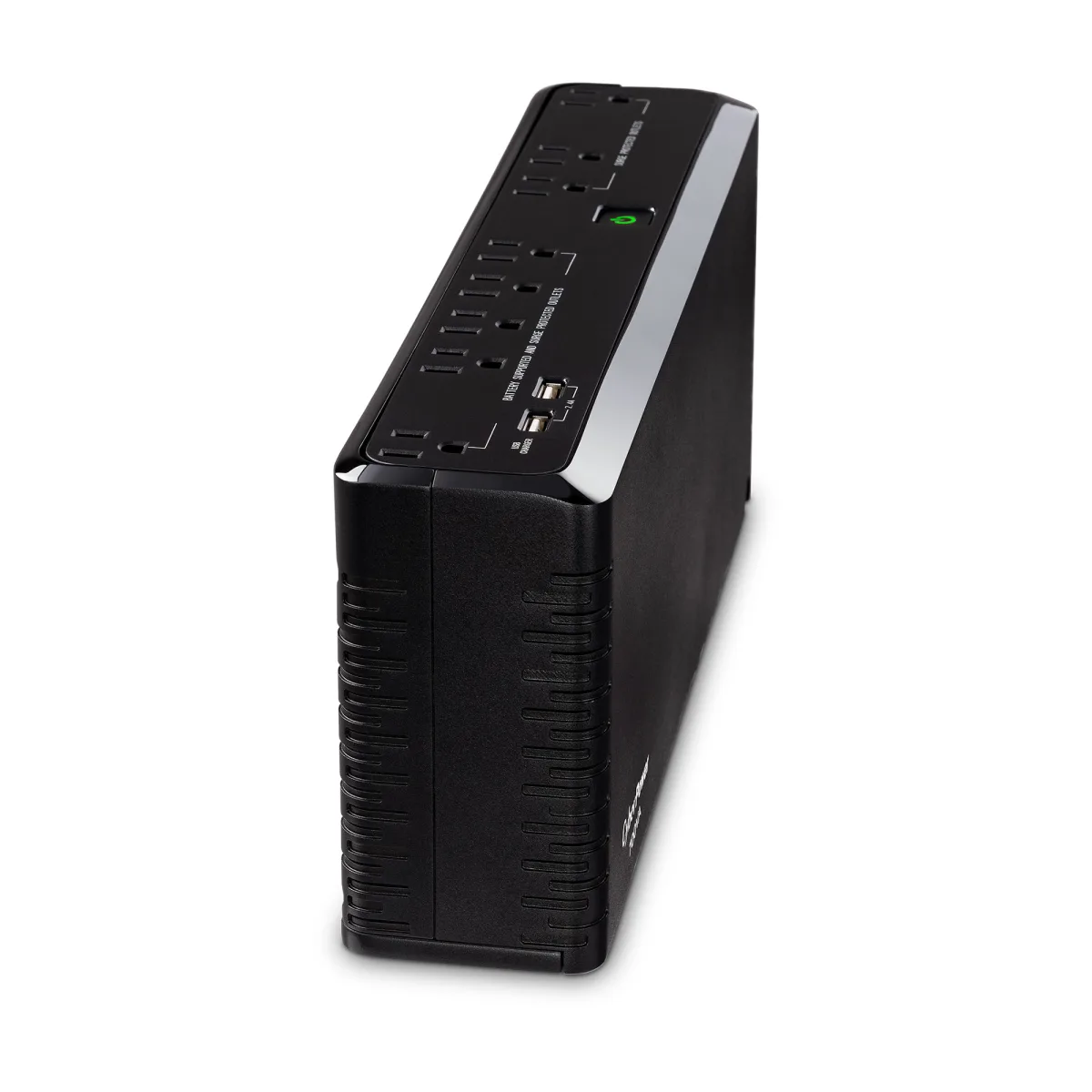

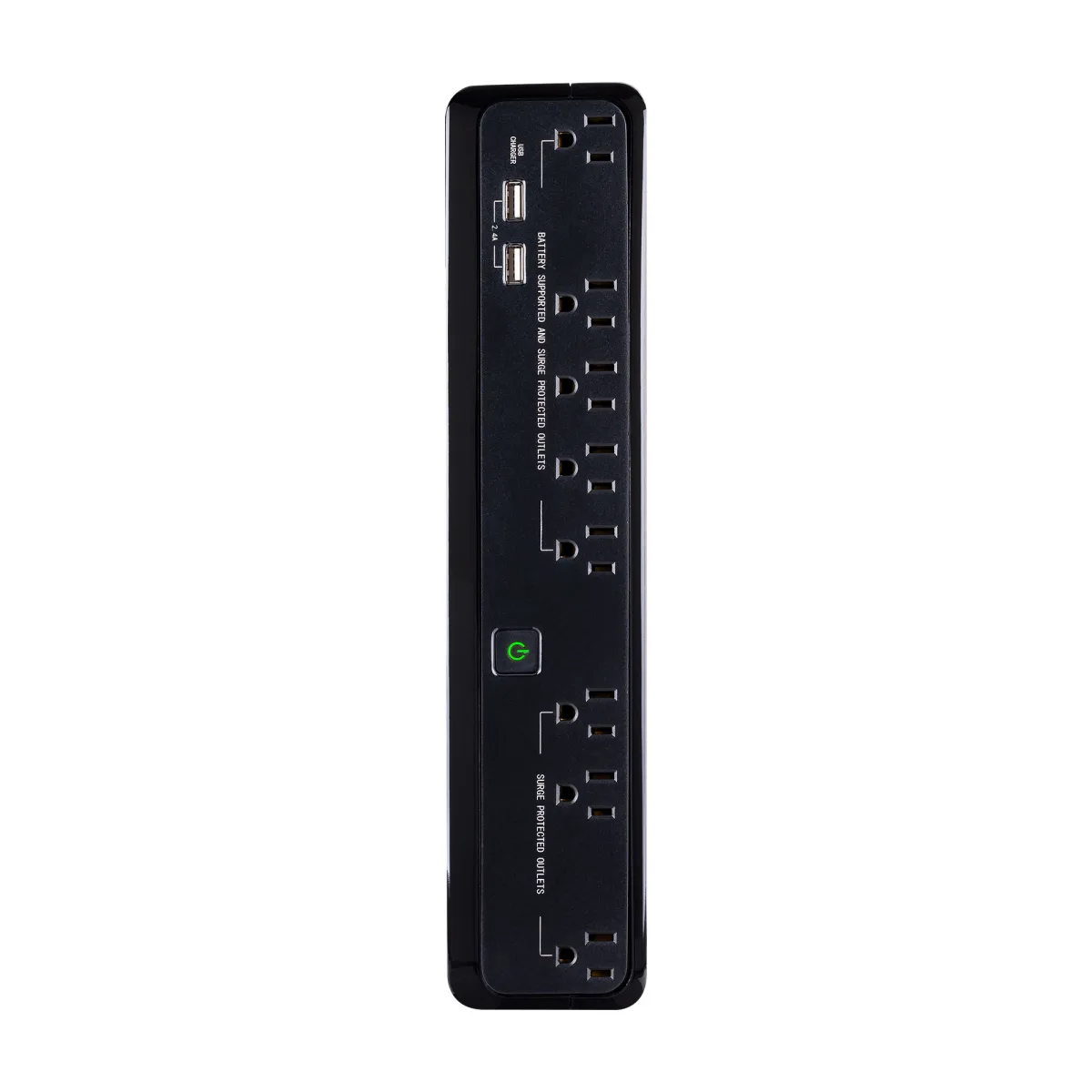

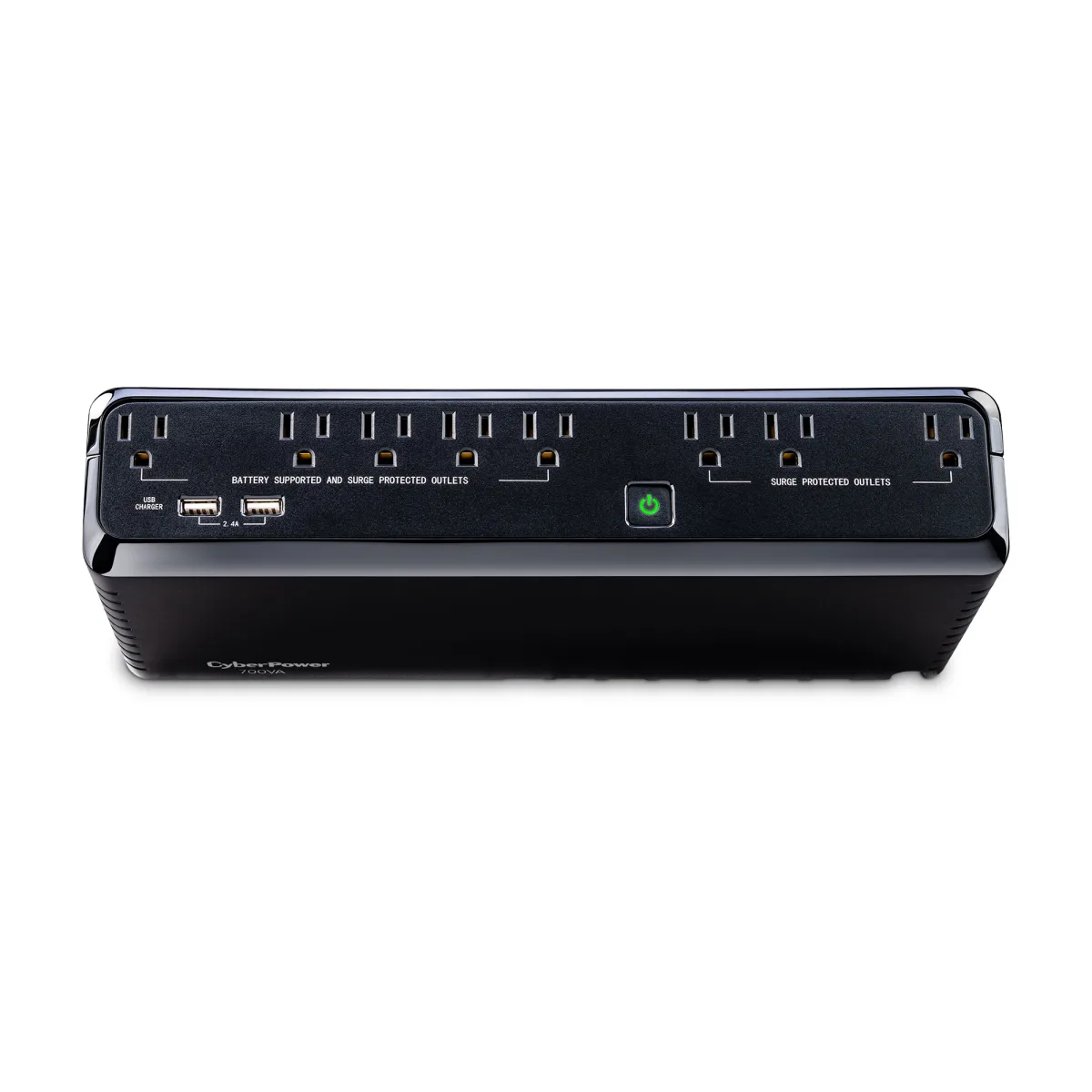

700VA/370W Slim Line Standby UPS, 8 NEMA 5-15R Outlets, NEMA 5-15P Plug, 5 Ft Cord, 2 Type A USB Charging Ports (2.4A Shared), USB, PowerPanel Personal, 3 Yr Warranty
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 8 h |
| Battery capacity | 5.5 Ah |
| Typical backup time at half load | 9 min |
| Typical backup time at full load | 2 min |
| Battery voltage | 12 V |
| Number of battery cells | 1 |
| Form factor | Compact |
|---|---|
| Product colour | Black |
| Safety | UL1778, cUL, FCC DOC Class B, CEC |
| Manufacturer Part Number | SL700U |
|---|---|
| Country of Origin | PH |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Cables included | Input power cable |
|---|
| LED indicators | Yes |
|---|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
| UPS topology | Standby (Offline) |
| Waveform | Sine |
| Response time | 8 ms |
| Audible alarm(s) | Yes |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Weight | 31.9 lb |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|---|
| Power plug | NEMA 5-15P |
| Cable length | 59.1" (1.5 m) |
| USB port | Yes |
| Input operation voltage (min) | 96 V |
|---|---|
| Input operation voltage (max) | 140 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Maximum current | 15 A |
| Output frequency | 50/60 Hz |
| Output power | 370 W |
| Surge energy rating | 890 J |
| Output power capacity | 0.7 kVA |
| Input frequency | 50/60 Hz |
| Output voltage regulation | 5% |
| Width | 12.8" (324 mm) |
|---|---|
| Height | 5.39" (137 mm) |
| Depth | 2.76" (70 mm) |
| Package width | 6" (152.4 mm) |
| Package height | 6.75" (171.4 mm) |
| Package depth | 14.2" (361.9 mm) |
| Package weight | 7.21 lbs (3.27 kg) |
