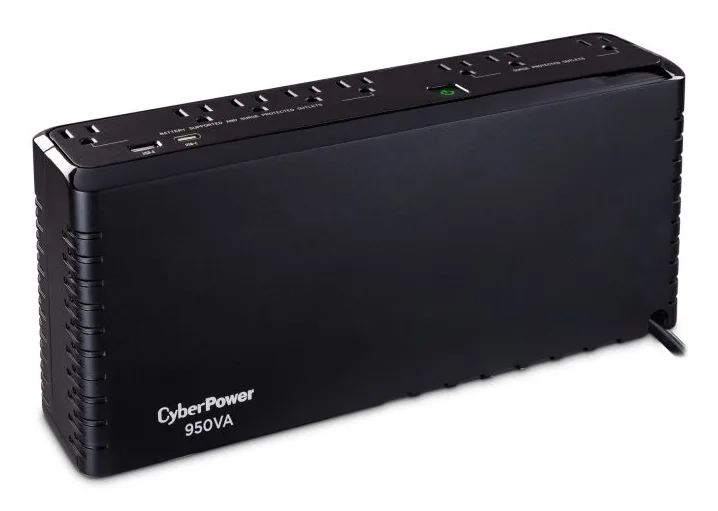

CyberPower SL950U Standby UPS

Cyberpower

CyberPower SL950U Standby UPS

Part #: SL950U Uninterruptible Power Supplies (UPSs)

$115.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

CyberPower SL950U Standby UPS 8 x 5-15R, 5-15P, 3Yr Wty

Specifications

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery capacity	6.5 Ah
Number of batteries supported	1
Typical backup time at half load	8 min
Typical backup time at full load	1 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1270X2F
Battery replacement accessibility	Non-removable
Battery voltage	12 V

Design

Form factor	Compact
Product colour	Black
Display type	LCD
Housing material	Plastic
Control type	Buttons

Features

Heat dissipation	192.5 BTU/h

General

Manufacturer Part Number	SL950U
Country of Origin	PH

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)

Packaging content

Cables included	USB cable, Serial

Performance

LED indicators	Power, Fault, Battery level
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Waveform	Simulated sine
Response time	8 ms
Noise level	57.5 dB
Audible alarm(s)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes

Physical

Weight	7.05 lb

Ports & interfaces

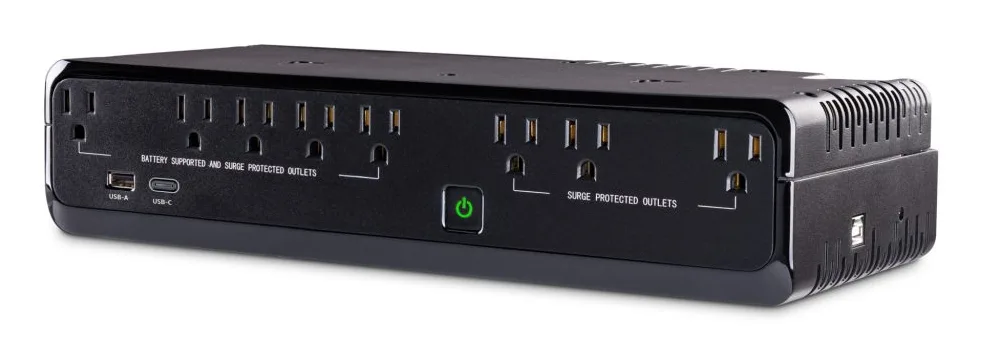

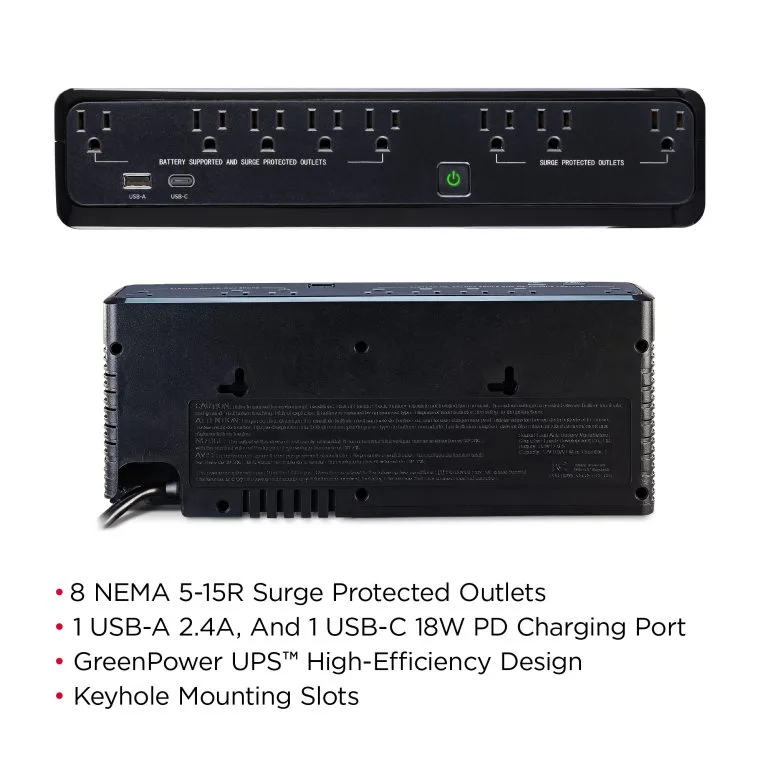

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Cable length	59.1" (1.5 m)
Serial ports quantity	1
USB port	Yes
USB port type	USB Type A/USB Type-C
Serial interface type	RJ-45
Serial interface	Yes

Power

Input operation voltage (min)	74 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Maximum current	15 A
Output frequency	50/60 Hz
Output power	510 W
Surge energy rating	890 J
Output power capacity	0.95 kVA
Input frequency	57/63 Hz
Power factor	1
Charging current	2.4 A

Weight & dimensions

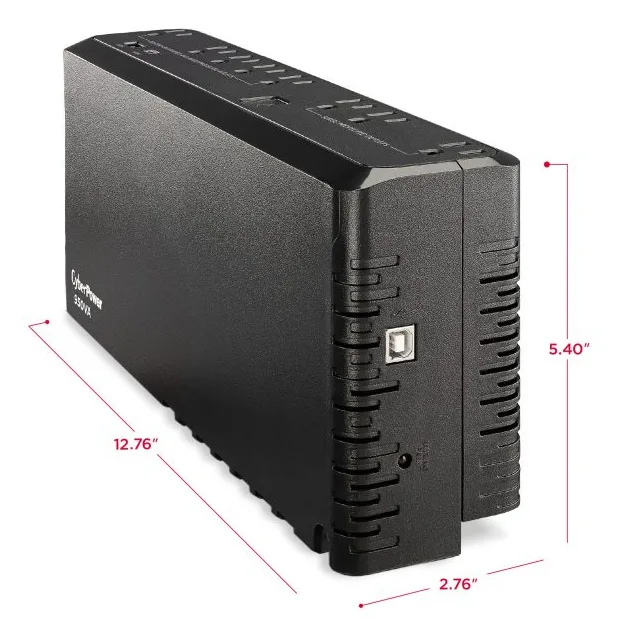

Width	12.8" (324 mm)
Height	2.76" (70 mm)
Depth	5.39" (137 mm)
Package width	141.2" (3587 mm)
Package height	67.5" (1714 mm)
Package depth	58.7" (1492 mm)
Package weight	18.5 lbs (8.4 kg)
