CITRIX 3013936-E2 MM MPO SFP MODULE QSFP 40G SFP TRANSCEIVER

$52.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

40 Gbps | Multi Mode Fiber | MPO | 100 m (328 ft) | Lifetime Warranty

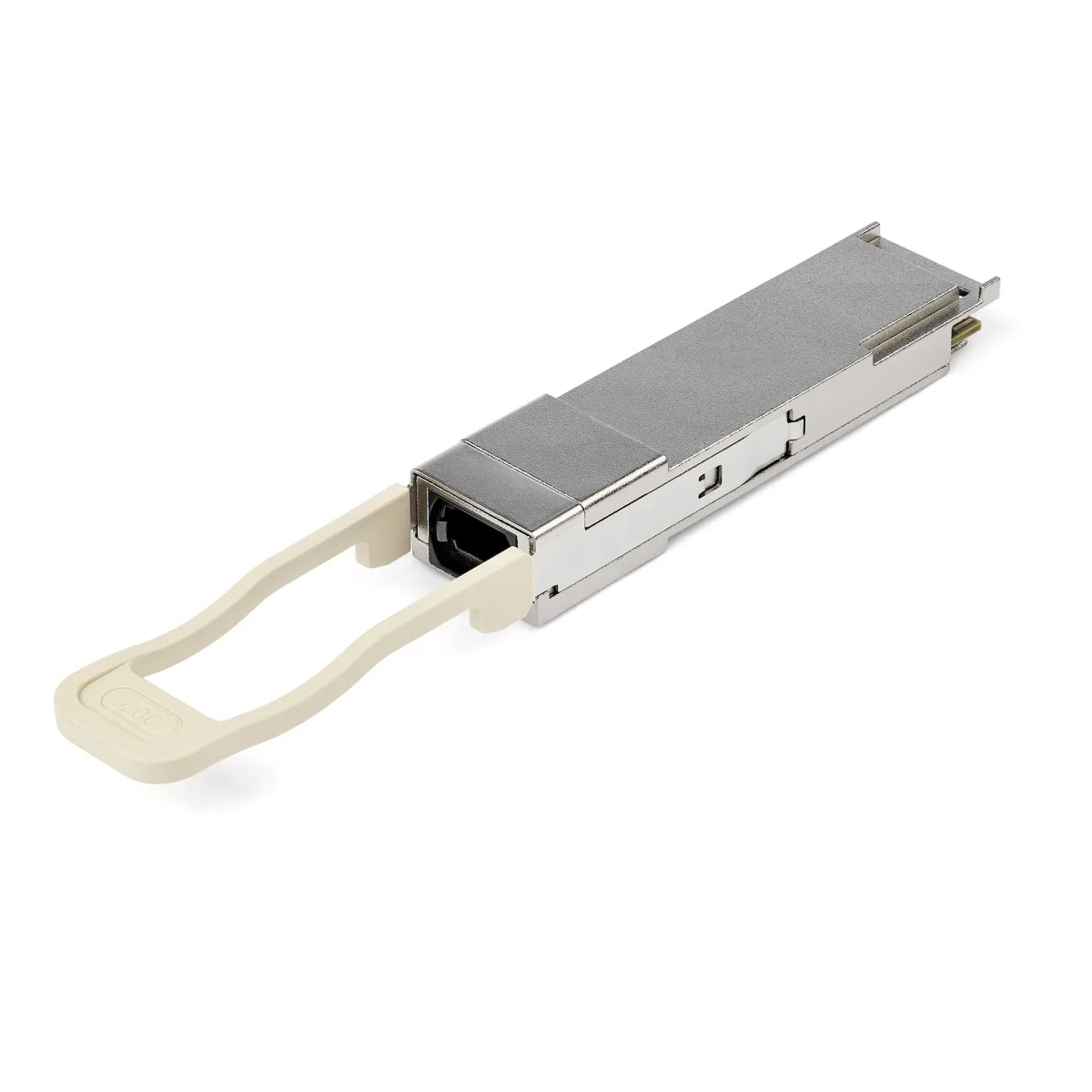

The 3013936-E2-ST is a Citrix® 3013936-E2 compatible fiber transceiver module that has been designed, programmed and tested to work with Citrix brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications :

Wavelength: 850nm

Maximum Data Transfer Rate: 40 Gbps

Type: Multi Mode

Connection Type: MPO

Maximum Transfer Distance: 100 m (328 ft)

MTBF: 244,610,582 hours

Power Consumption:

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Certificates

Certification FCC, CE, UR

Logistics data

Quantity per pack 1 pc(s)
Products per master (outer) case 36 pc(s)
Master (outer) case width 13.4" (340 mm)
Master (outer) case length 16.5" (420 mm)
Master (outer) case height 13.8" (350 mm)

Network

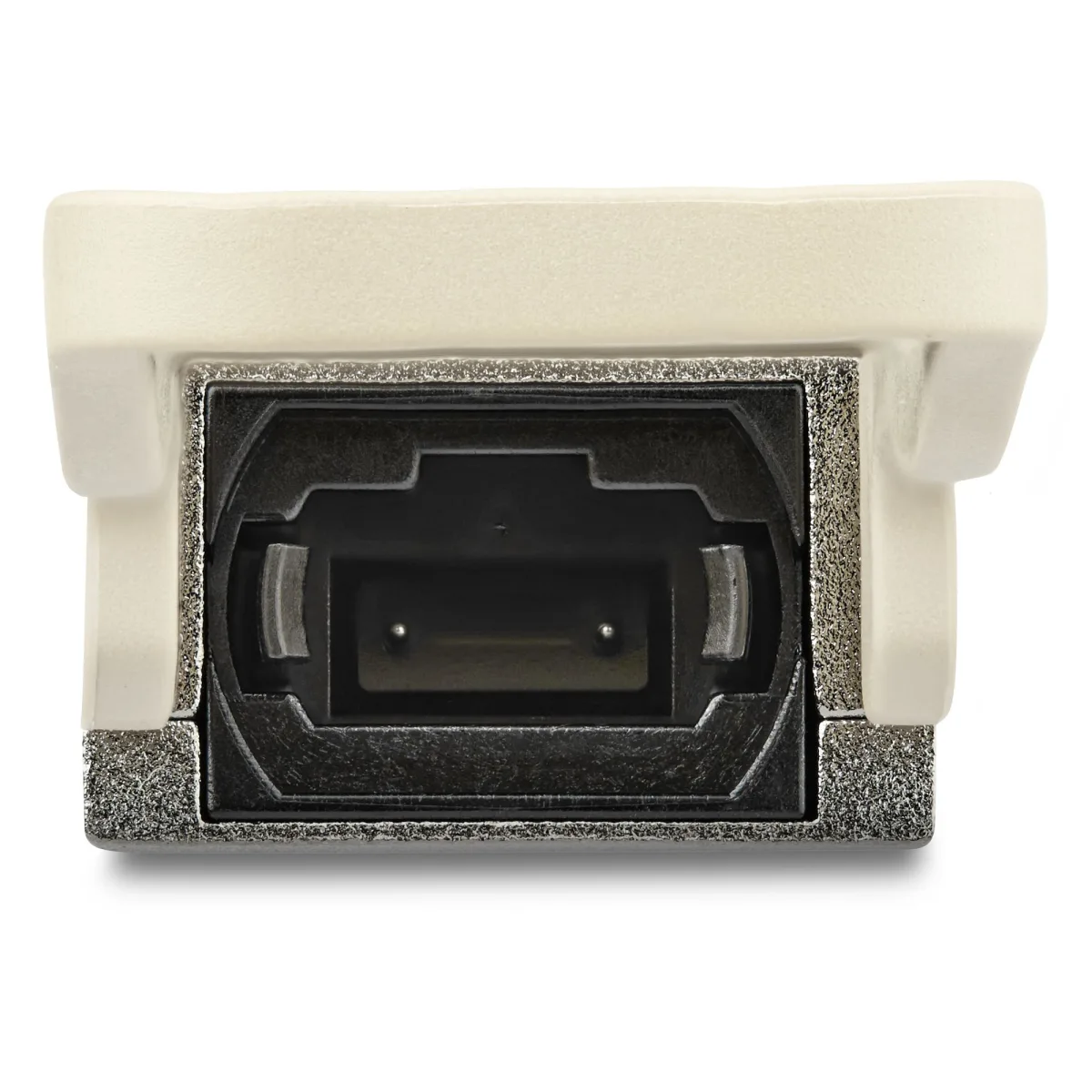

Fiber optic connector MPO
Maximum data transfer rate 40000 Mbit/s
SFP transceiver type Fiber optic
Interface type QSFP+

Performance

Product colour Silver
Compatible products 3013936-E2
Harmonized System (HS) code 85369010
Mean time between failures (MTBF) 244610582 h
Brand compatibility Citrix
Maximum transfer distance 3937" (100 m)
Wavelength 850 nm
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SR4
Fiber ethernet cabling technology 40GBASE
Hot-swap Yes

Power

Power consumption (typical) 0.7 W

Technical details

Compliance certificates RoHS

Weight & dimensions

Weight 1.76 oz (50 g)
Width 3.54" (90 mm)
Height 1.22" (31 mm)
Depth 4.72" (120 mm)
Package width 5.12" (130 mm)
Package height 1.77" (45 mm)
Package depth 7.28" (185 mm)
Package weight 1.32 oz (37.4 g)
