Startech

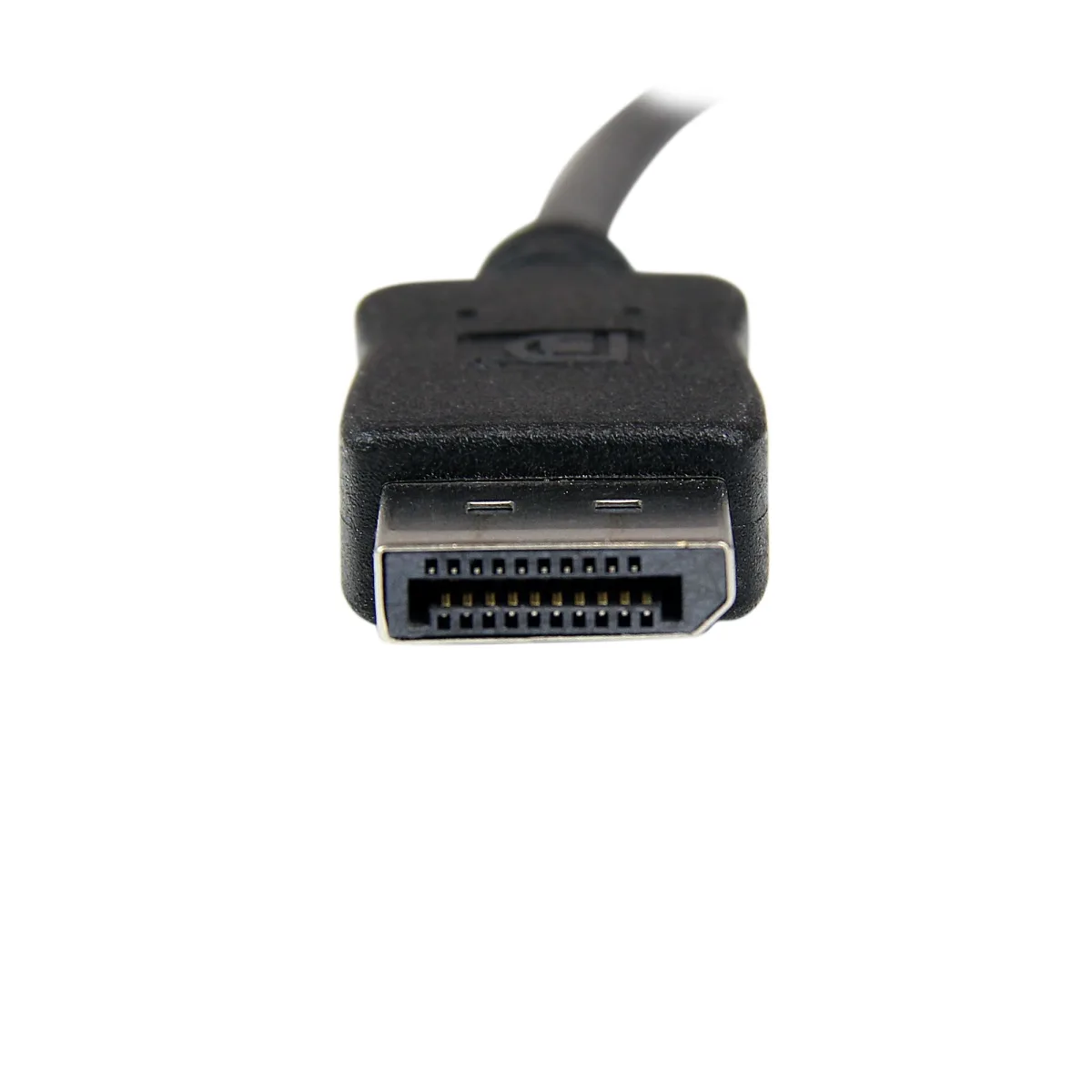

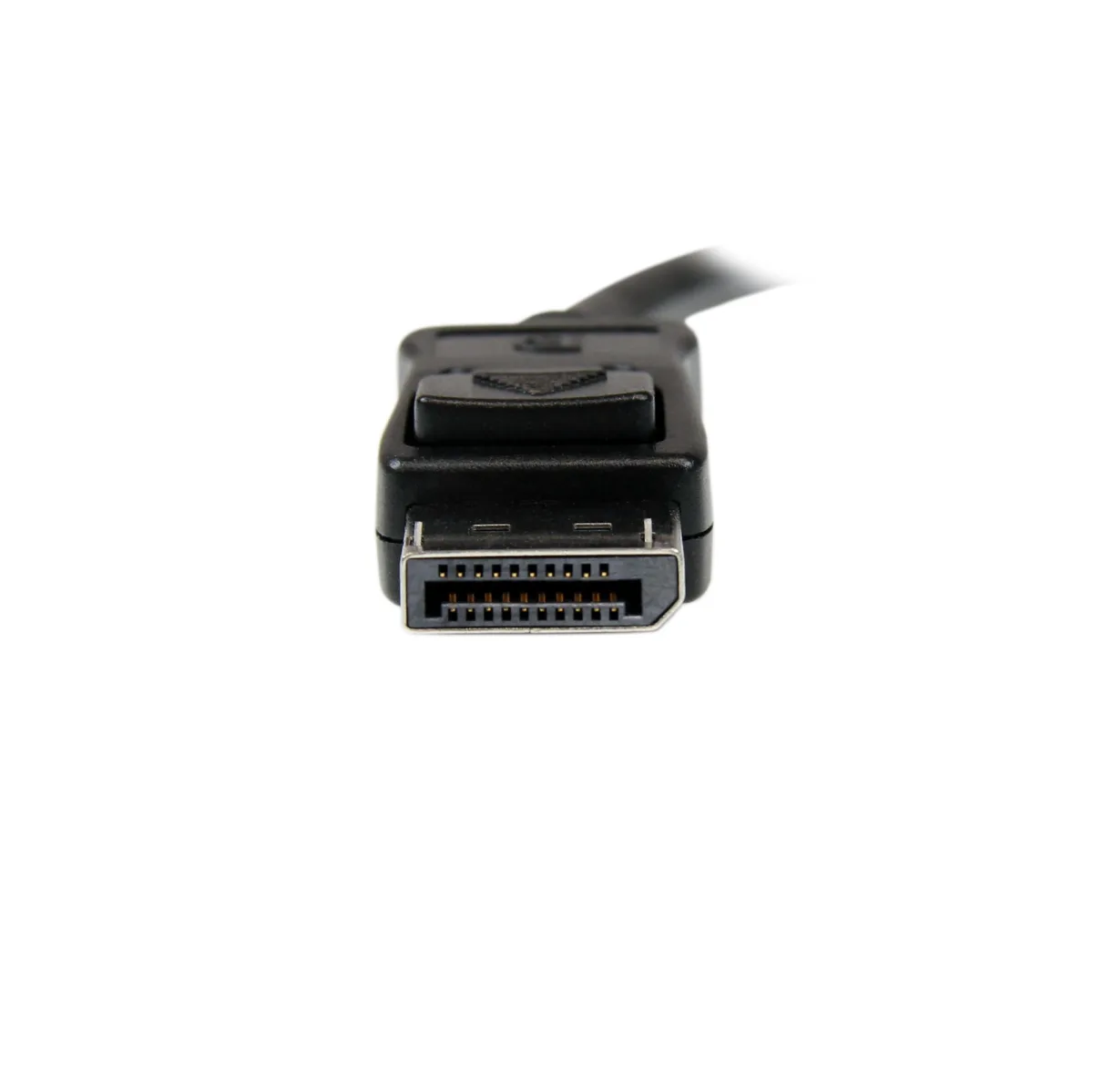

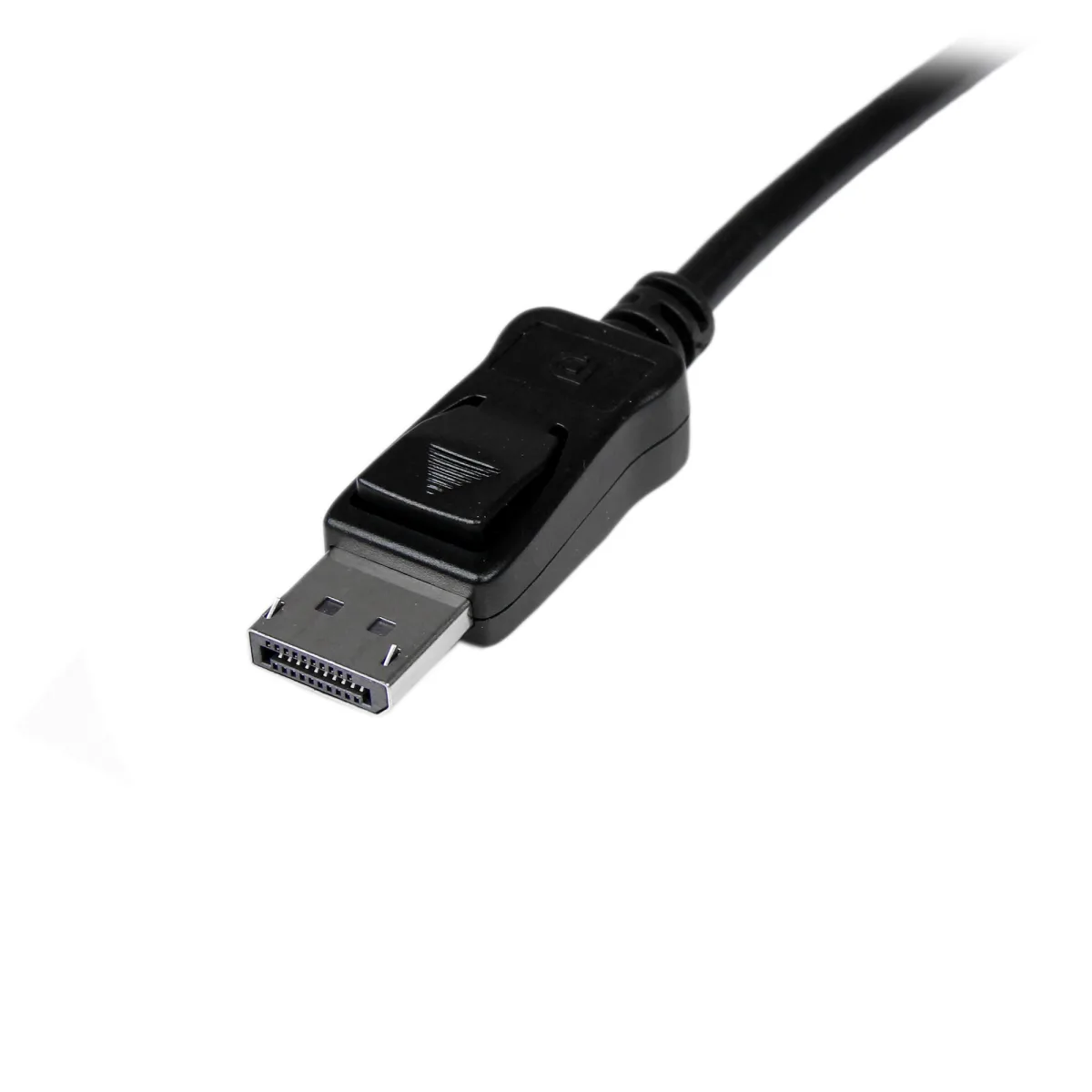

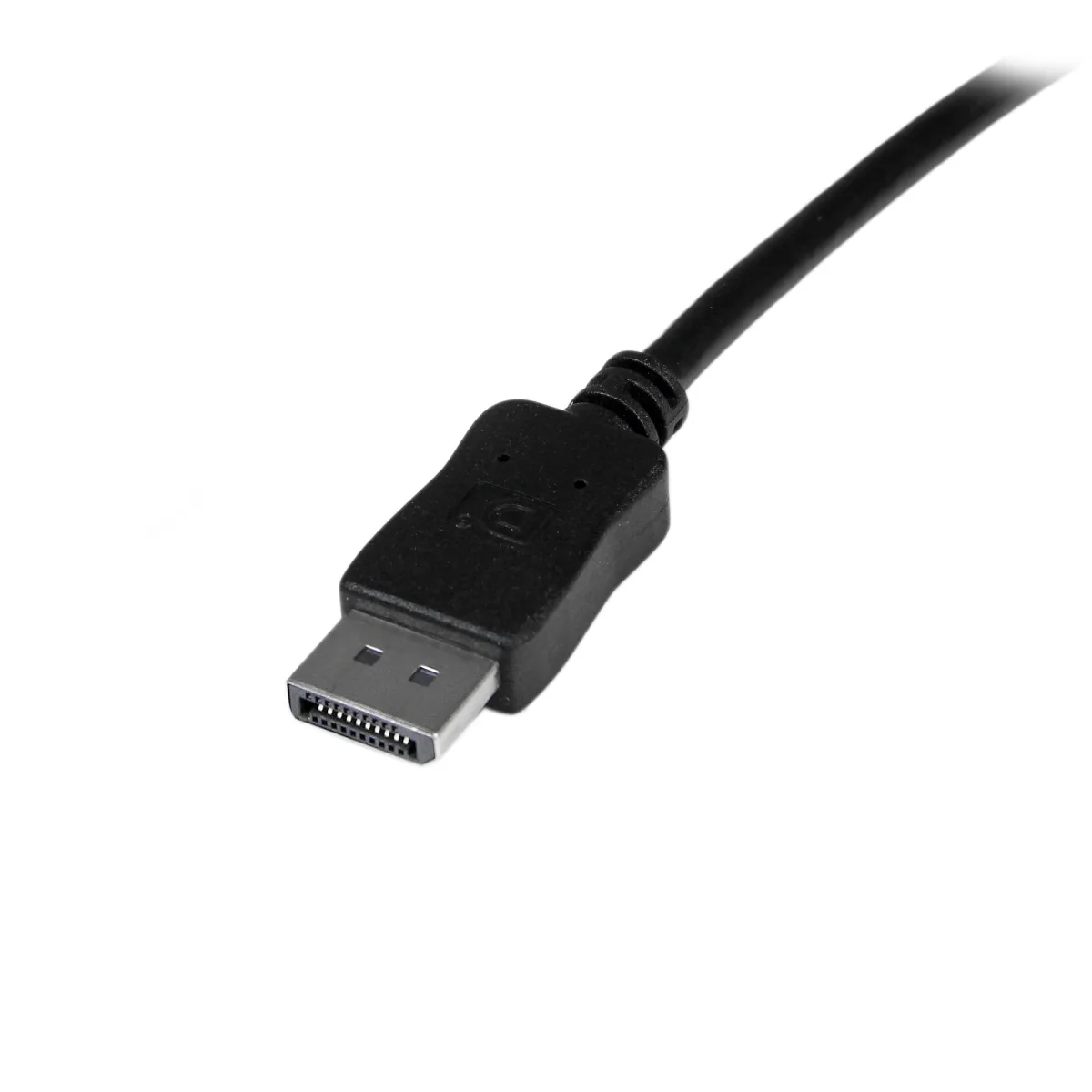

32FT ACTIVE DISPLAYPORT CABLE 10M DP 1.2 VIDEO DISPLAY CABLE CORD

Part #: DISPL10MA DisplayPort Cables

$37.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

Connect DisplayPort®-equipped devices up to 10m away with no signal loss

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.

This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.

The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.

This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.

Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.

The StarTech.com Advantage

Specifications

Certificates

Compliance certificates	CE, RoHS

Features

Product colour	Black
Connector 2 gender	Male
Connector 1 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	393.7" (10 m)
AWG wire size	32
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector contacts plating	Nickel
HDCP	Yes
Jacket material	Polyvinyl chloride (PVC)
DisplayPort version	1.2
Bandwidth	10800 MB/s
Maximum resolution	2560 x 1600 pixels
Multi-Stream Transport (MST)	Yes
Number of conductors	19
Latching connectors	Yes
Cable rating	CMG (CM)
DisplayPort Content Protection (DPCP)	Yes
Magnetically shielded	Yes

Logistics data

Products per master (outer) case	20 pc(s)
Master (outer) case width	13.1" (334 mm)
Master (outer) case length	19.8" (502 mm)
Master (outer) case height	9.41" (239 mm)

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C

Packaging data

Quantity per pack	1 pc(s)

Technical details

Harmonized System (HS) code	84733080

Weight & dimensions

Weight	15.9 oz (452 g)
Package width	10" (255 mm)
Package height	1.57" (40 mm)
Package depth	13" (330 mm)
Package weight	16.4 oz (466 g)
