CITRIX EG3C0000086 MM LC SFP MODULE 1G FIBER SFP TRANSCEIVER

Part #: EG3C0000086-ST Network Equipment Parts & Accessories

$9.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

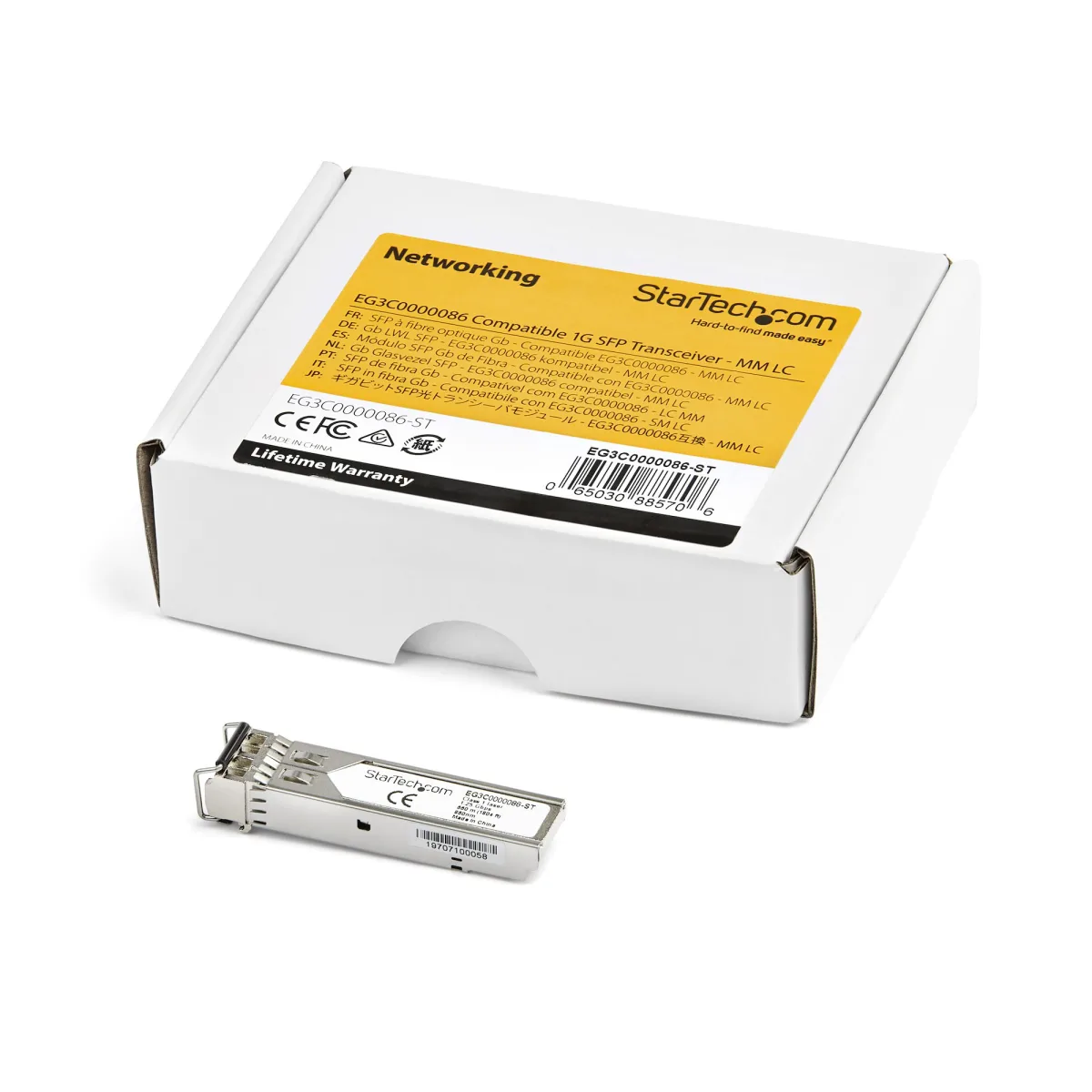

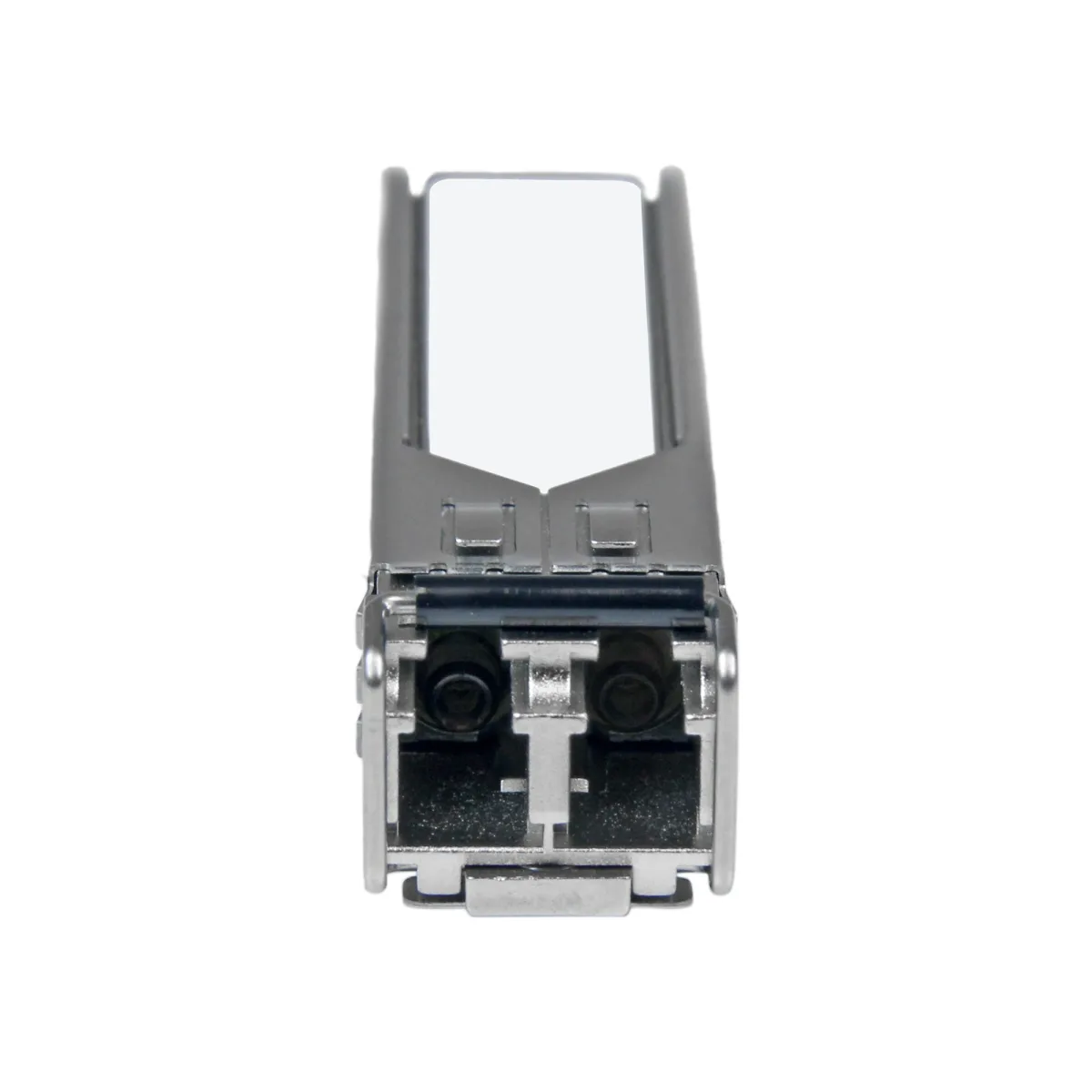

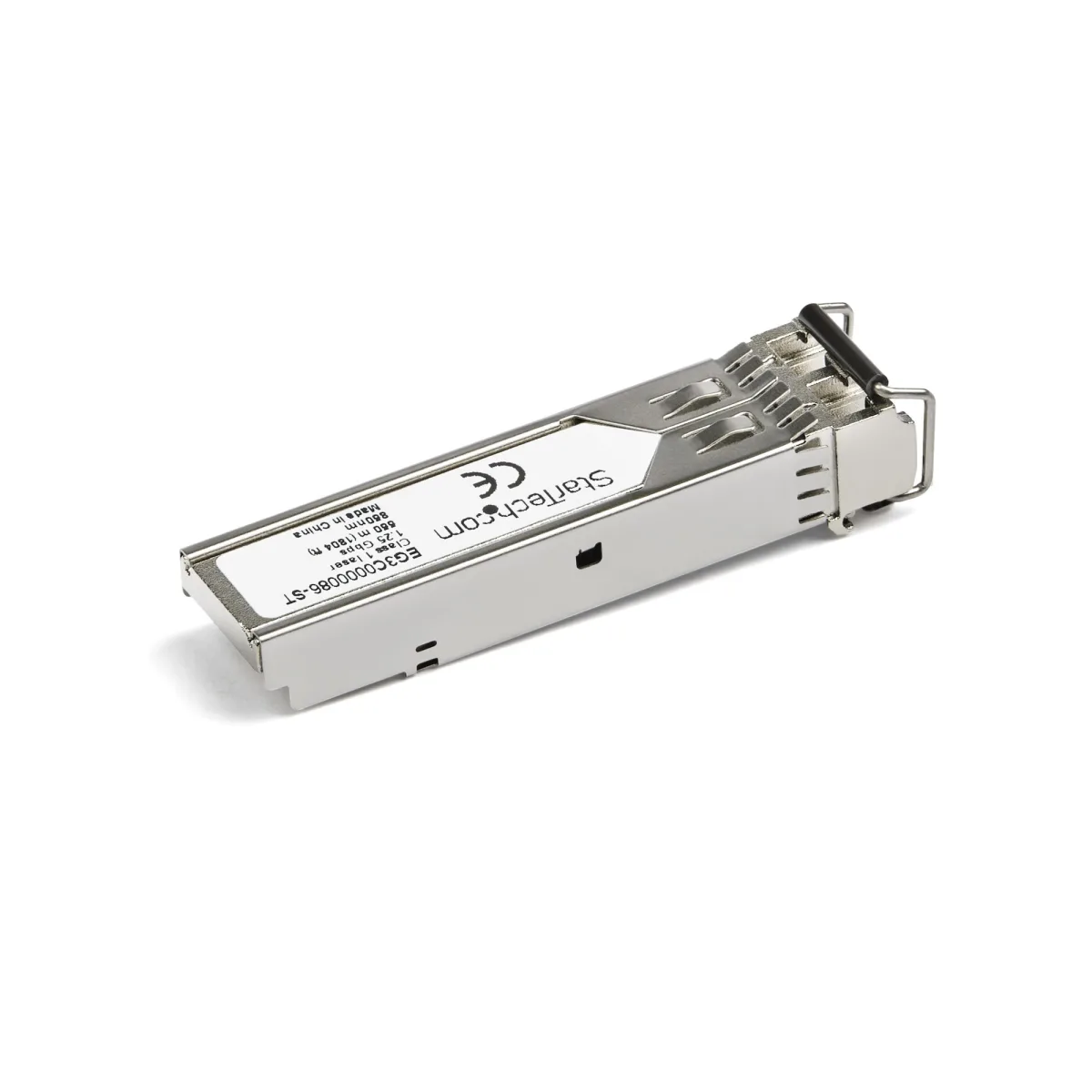

The EG3C0000086-ST is a Citrix EG3C0000086 compatible fiber transceiver module that has been designed, programmed and tested to work with Citrix brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 629,953,711 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Logistics data

Products per master (outer) case 1 pc(s)
Master (outer) case width 3.54" (90 mm)
Master (outer) case length 4.53" (115 mm)
Master (outer) case height 1.22" (31 mm)

Packaging content

Quantity per pack 1 pc(s)

Performance

Product colour Silver
Country of origin China
Compatible products EG3C0000086
Harmonized System (HS) code 85369010
Mean time between failures (MTBF) 629953711 h
Brand compatibility Citrix
Digital Diagnostics Monitoring (DDM) Yes
Maximum transfer distance 21653.5" (550 m)
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Fiber optic connector LC
Wavelength 850 nm
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Fiber ethernet cabling technology 1000BASE
Hot-swap Yes

Weight & dimensions

Weight 0.564 oz (16 g)
Width 2.23" (56.6 mm)
Height 0.492" (12.5 mm)
Depth 0.539" (13.7 mm)
Package width 3.54" (90 mm)
Package height 1.22" (31 mm)
Package depth 4.53" (115 mm)
Package weight 1.76 oz (50 g)
