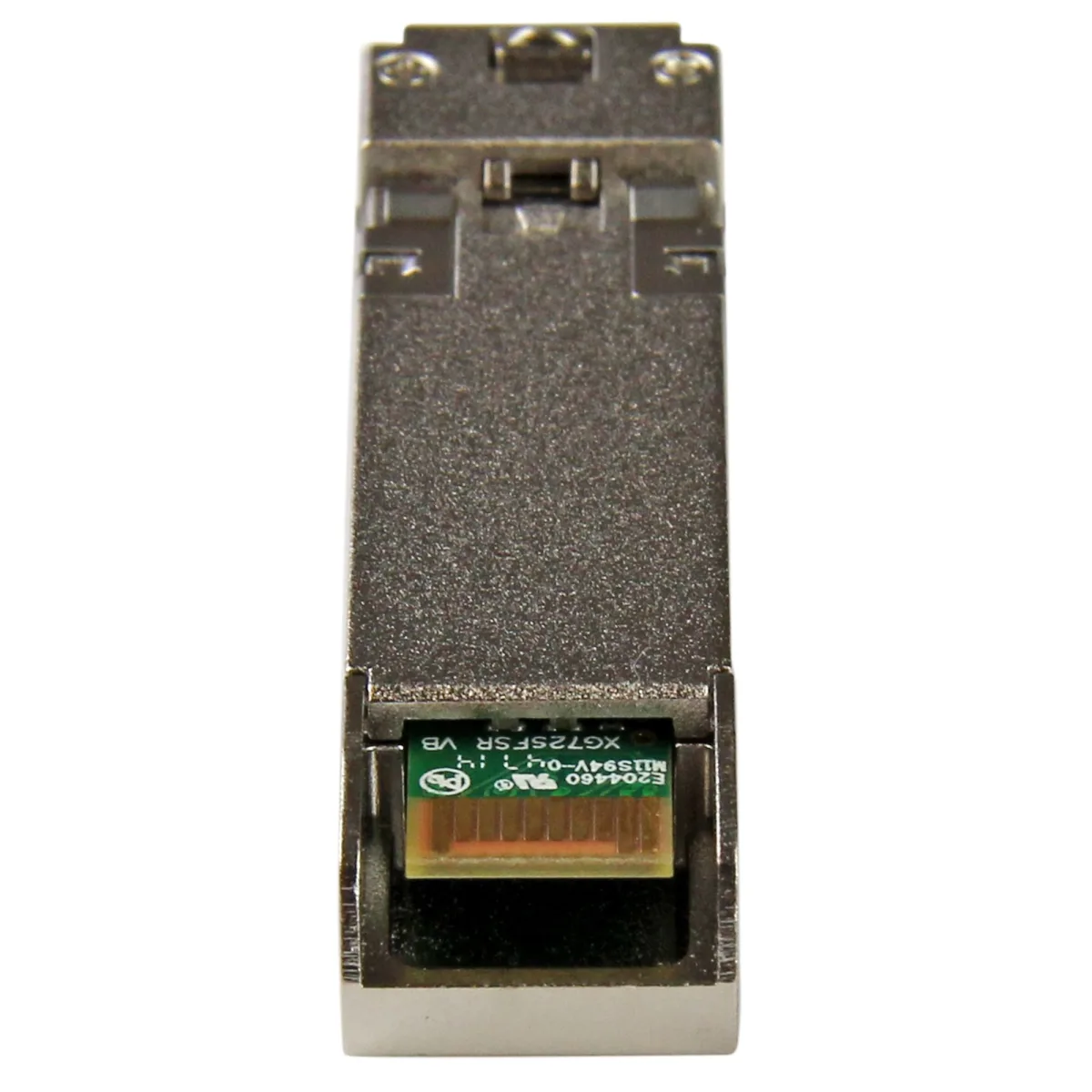

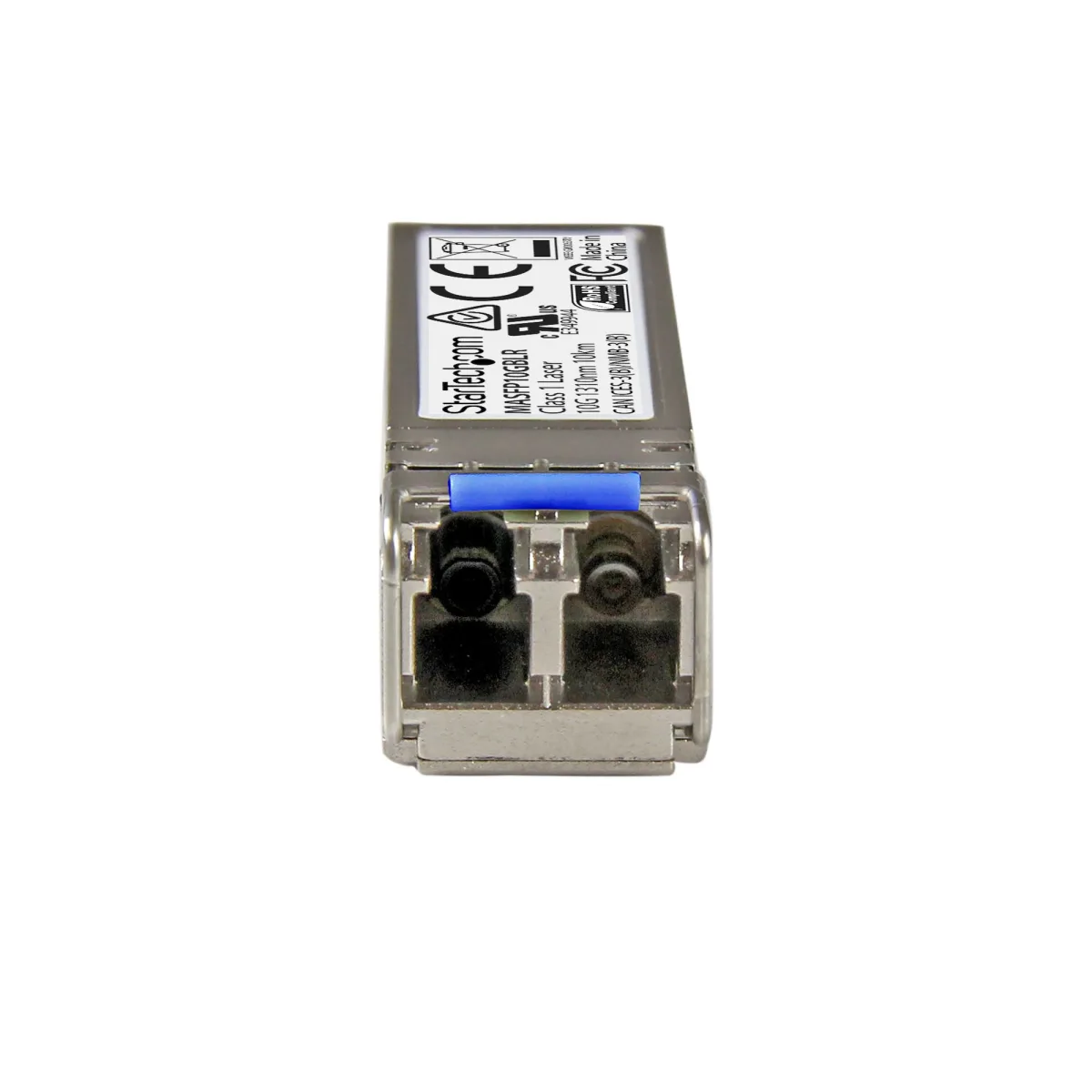

CISCO MERAKI MA-SFP-10GB-LR SM SFP MODULE SFP+ 10G SFP TRANSCEIVER
Startech

CISCO MERAKI MA-SFP-10GB-LR SM SFP MODULE SFP+ 10G SFP TRANSCEIVER

Part #: MASFP10GBLR Network Equipment Parts & Accessories

$378.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

Certificates

Compliance certificates CE, RoHS

Logistics data

Products per master (outer) case 3 pc(s)
Master (outer) case width 9.84" (250 mm)
Master (outer) case length 11.8" (300 mm)
Master (outer) case height 7.87" (200 mm)

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%

Packaging content

Quantity per pack 1 pc(s)

Performance

Product colour Silver
Country of origin China
Harmonized System (HS) code 85369010
Housing material Aluminum
Mean time between failures (MTBF) 2104865 h
Digital Diagnostics Monitoring (DDM) Yes
Maximum transfer distance 393700.8" (10000 m)
Duplex system Full
Single-mode fiber (SMF) supported Yes
SFP transceiver type Fiber optic
Interface type SFP+
Maximum data transfer rate 10000 Mbit/s
Fiber optic connector LC
Wavelength 1310 nm
SFP transceiver standard LR
Hot-swap Yes
Networking standards IEEE 802.3ae

Power

Power consumption (typical) 1.2 W

Weight & dimensions

Weight 0.776 oz (22 g)
Width 0.547" (13.9 mm)
Height 0.496" (12.6 mm)
Depth 2.3" (58.4 mm)
Package width 3.62" (92 mm)
Package height 1.3" (33 mm)
Package depth 4.49" (114 mm)
Package weight 1.87 oz (53 g)
