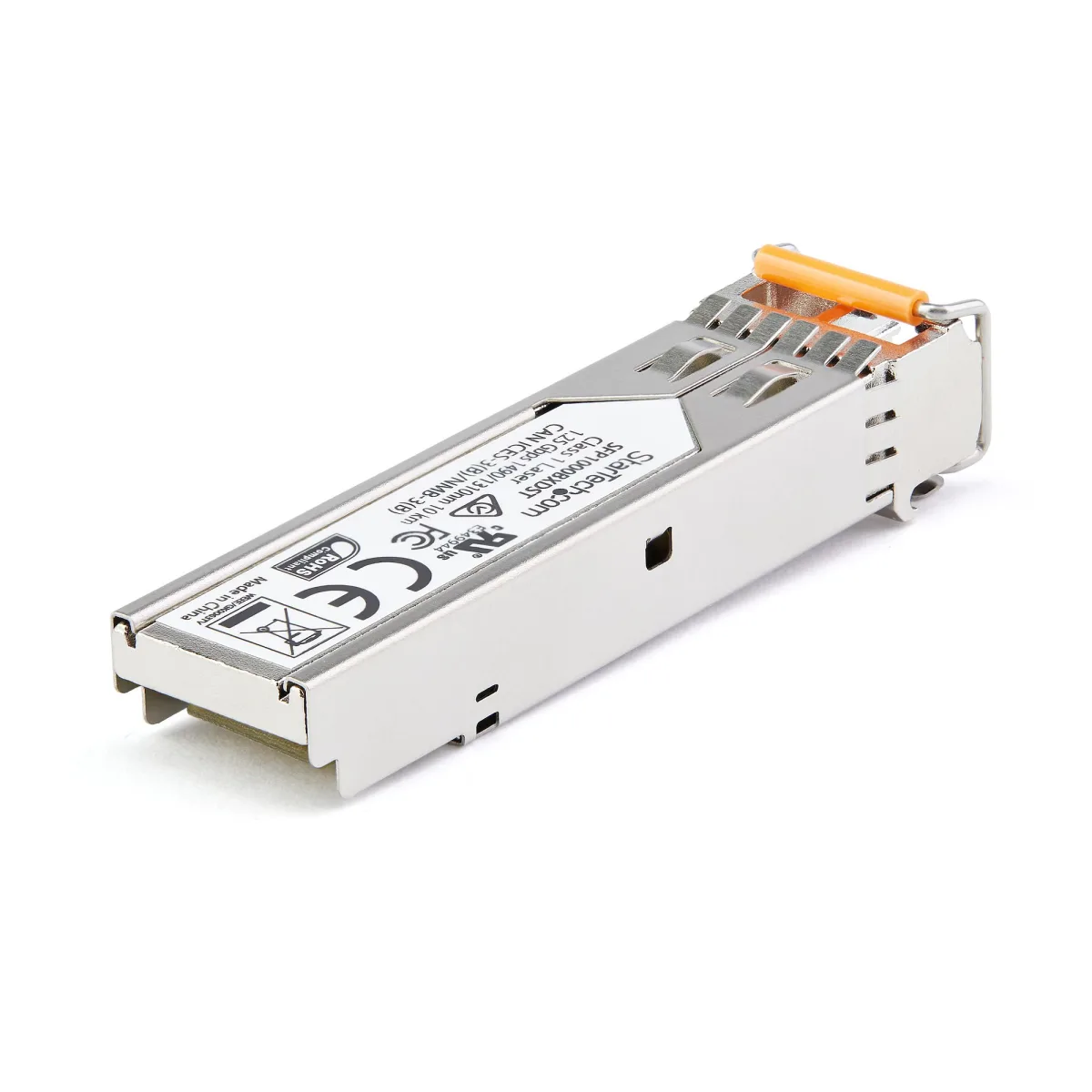

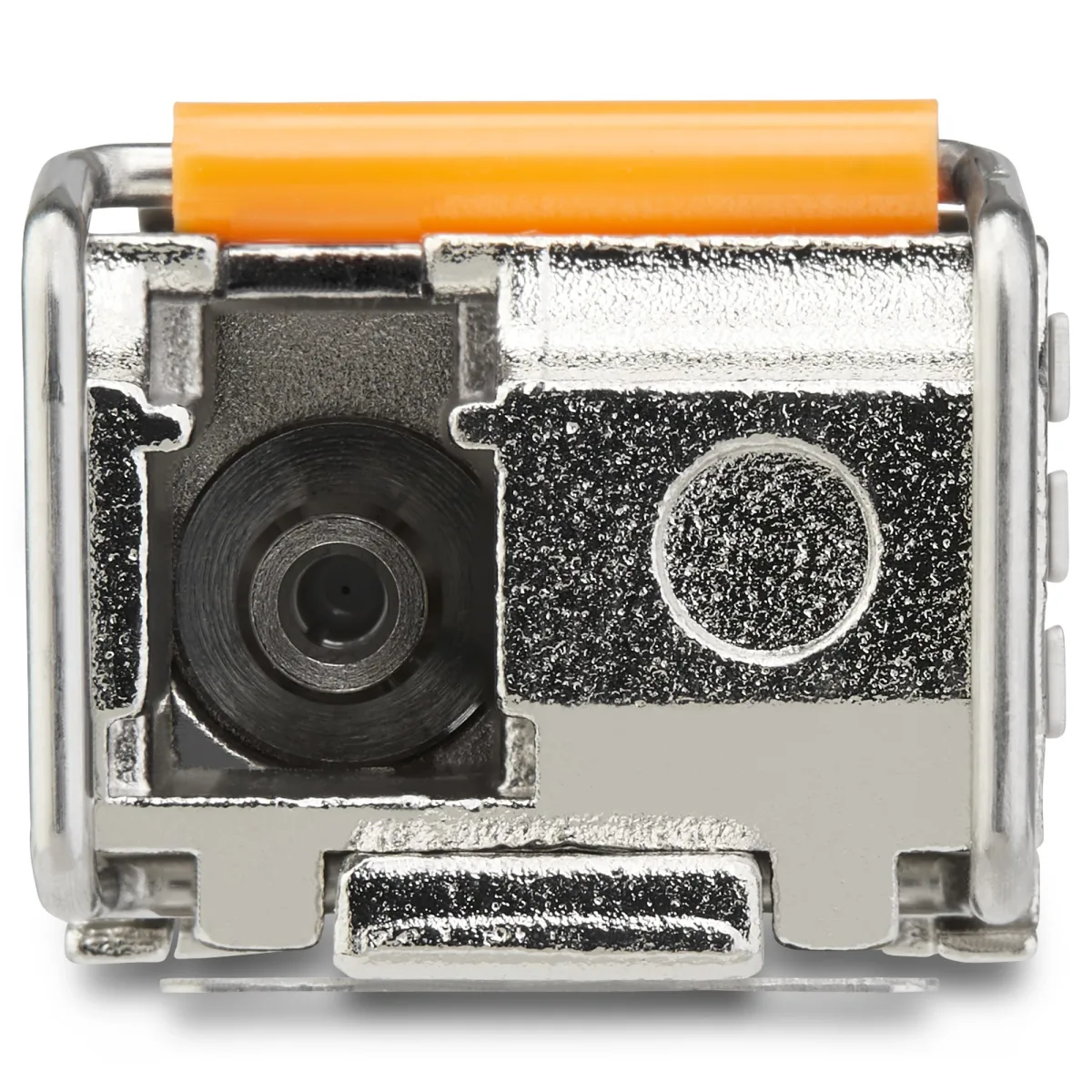

DELL EMC SFP-1G-BX40-D SM LC SFP MODULE 1G FIBER SFP TRANSCEIVER
Startech

DELL EMC SFP-1G-BX40-D SM LC SFP MODULE 1G FIBER SFP TRANSCEIVER

Part #: SFP1GBX40DES Network Equipment Parts & Accessories

$20.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP1GBX40DES is a Dell EMC SFP-1G-BX40-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX40UES. They are designed, programmed and tested to work with 1000BASE-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 3,713,222 hours
• Power Consumption:
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Certificates

Certification CE, FCC, UL, REACH

Logistics data

Quantity per pack 1 pc(s)
Products per master (outer) case 1 pc(s)
Master (outer) case width 3.54" (90 mm)
Master (outer) case length 4.53" (115 mm)
Master (outer) case height 1.22" (31 mm)

Network

Fiber optic connector LC
Maximum data transfer rate 1000 Mbit/s
SFP transceiver type Fiber optic
Interface type SFP

Performance

Product colour Silver
Compatible products SFP-1G-BX40-D
Harmonized System (HS) code 85369010
Mean time between failures (MTBF) 3713222 h
Brand compatibility Dell
Digital Diagnostics Monitoring (DDM) Yes
Maximum transfer distance 1574803.1" (40000 m)
Single-mode fiber (SMF) supported Yes
Multi-mode fiber (MMF) supported No
Hot-swap Yes
Tx wavelength (max) 1490 nm
Rx wavelength (max) 1310 nm

Power

Power consumption (typical) 1.6 W

Technical details

Compliance certificates RoHS

Weight & dimensions

Weight 1.06 oz (30 g)
Width 2.3" (58.4 mm)
Height 0.496" (12.6 mm)
Depth 0.547" (13.9 mm)
Package width 3.54" (90 mm)
Package height 1.22" (31 mm)
Package depth 4.53" (115 mm)
Package weight 1.76 oz (50 g)
