JUNIPER SFP-GE40KT13R15 SM LC SFP MODULE 1G FIBER SFP TRANSCEIVER

$20.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

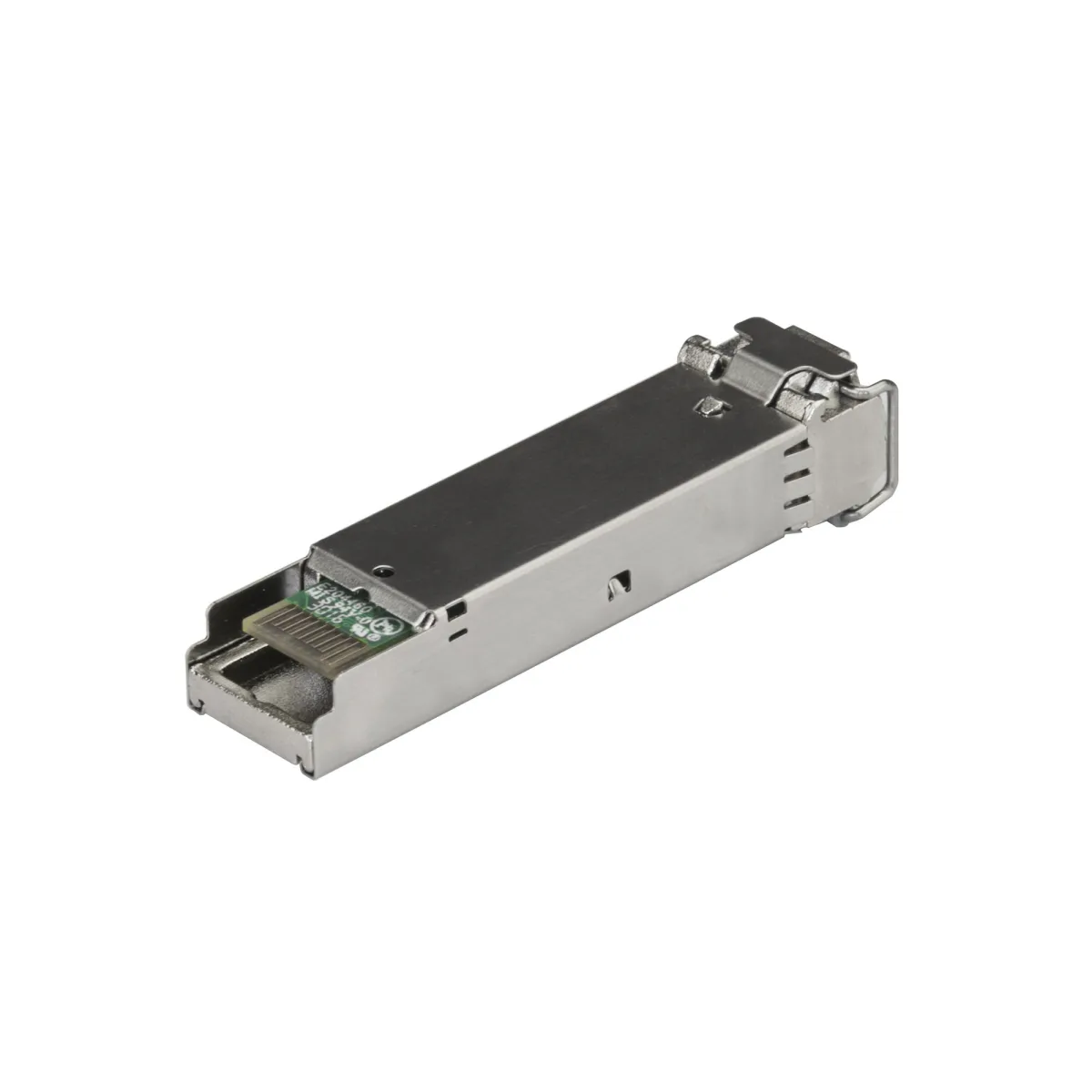

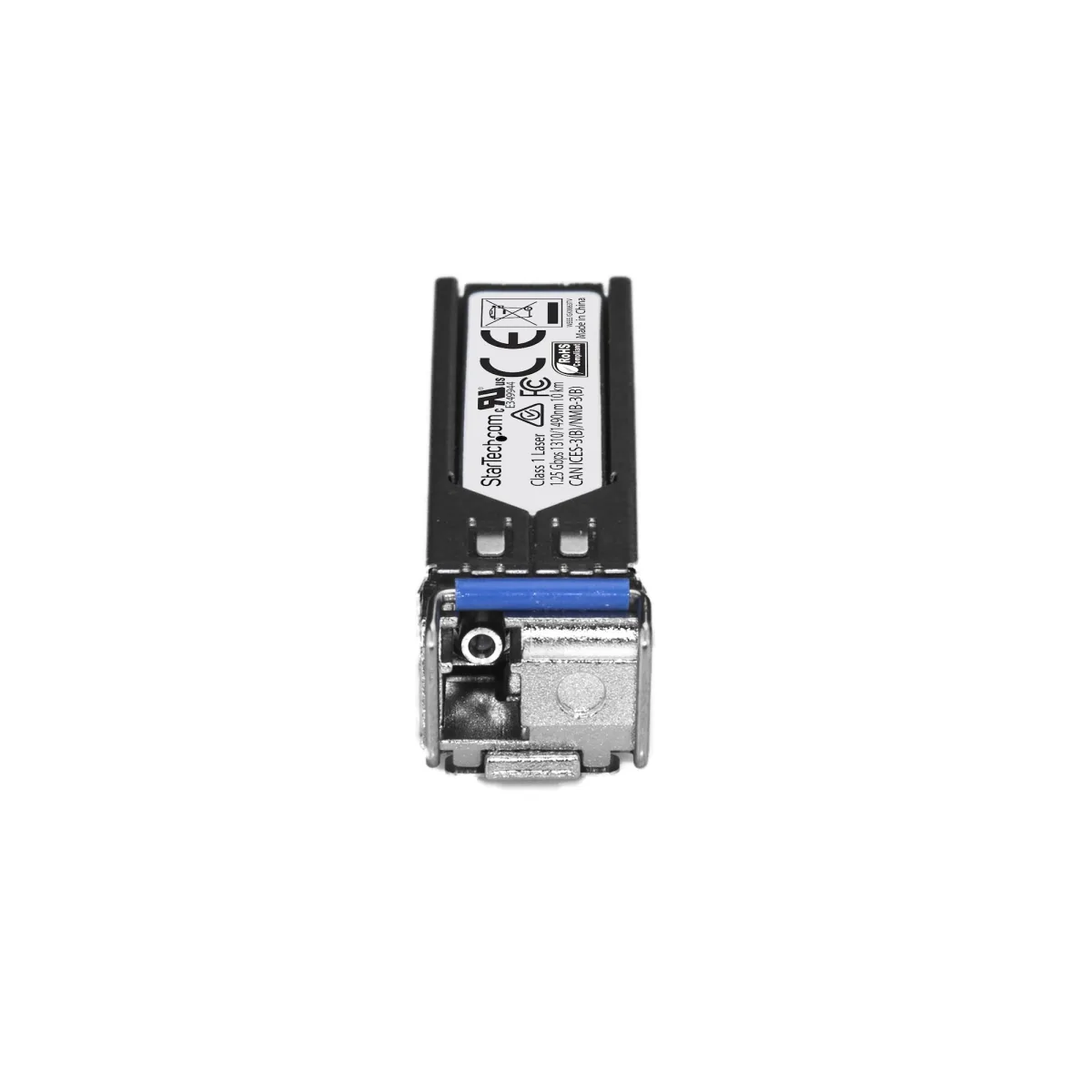

The SFPGE40KT3R5 is a Juniper SFPP-10GE-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-BX40-U compliant networks, with a maximum distance of up to 40 km (24.8 mi).

Technical Specifications:

• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 3,713,222 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Certificates

Certification CE, FCC, REACH

Logistics data

Quantity per pack 1 pc(s)
Products per master (outer) case 36 pc(s)
Master (outer) case width 13.5" (344 mm)
Master (outer) case length 11.6" (295 mm)
Master (outer) case height 10" (255 mm)

Network

Fiber optic connector LC
Maximum data transfer rate 1000 Mbit/s
SFP transceiver type Fiber optic
Interface type SFP

Performance

Product colour Silver
Compatible products SFP-GE40KT13R15
Harmonized System (HS) code 85369010
Mean time between failures (MTBF) 3713222 h
Brand compatibility Juniper
Maximum transfer distance 1574803.1" (40000 m)
Duplex system Full
Single-mode fiber (SMF) supported Yes
Multi-mode fiber (MMF) supported No
Hot-swap Yes
Tx wavelength (max) 1310 nm
Rx wavelength (max) 1550 nm

Technical details

Compliance certificates RoHS

Weight & dimensions

Weight 2.54 oz (72 g)
Width 0.551" (14 mm)
Height 0.472" (12 mm)
Depth 2.56" (65 mm)
Package width 8.15" (207 mm)
Package height 0.591" (15 mm)
Package depth 9.06" (230 mm)
Package weight 2.82 oz (80 g)
