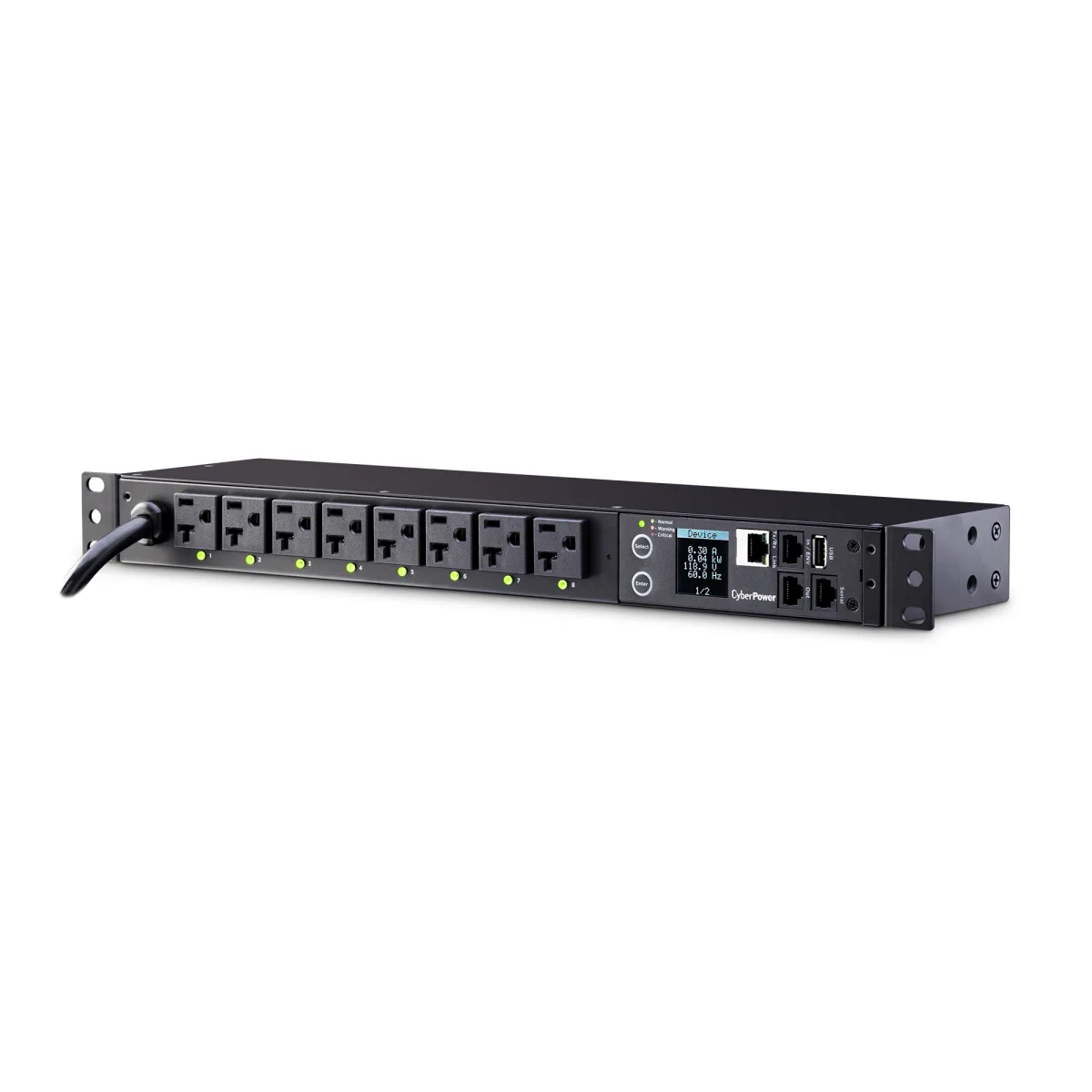

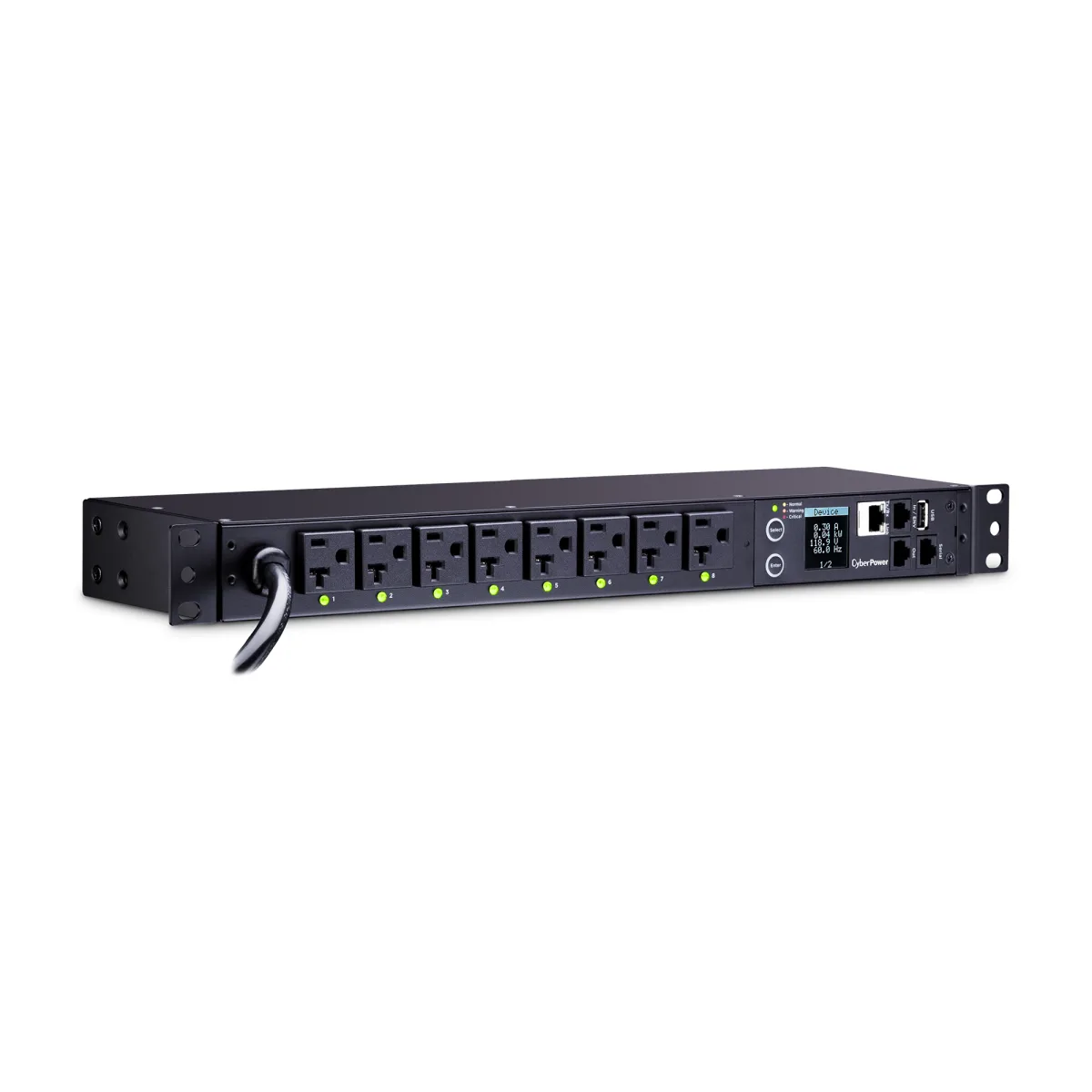

Switched PDU 20A 1u 8 Out 120V

Cyberpower

Switched PDU 20A 1u 8 Out 120V

Part #: PDU41002 Power Distribution Units (PDUs)

$695.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

120V 8 Outlet NEMA 12ft cord 1U 3YR WTY

Specifications

Design

Rack capacity	1U
Product colour	Black
Display	LCD
Certification	UL, FCC
PDU types	Monitored, Switched
Mounting	Horizontal/Vertical
Type	Single-phase
Housing material	Steel

Ergonomics

Cable length	145.7" (3.7 m)
LED indicators	Yes

General

Manufacturer Part Number	PDU41002
Country of Origin	PH

Management features

Firmware upgradeable via	Network, USB
Firmware upgradeable	Yes

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)

Packaging content

Cables included	LAN (RJ-45)
Manual	Yes
Screws included	Yes
Number of screws	14

Physical

Weight	9.2 lb

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA 5-20P
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Power

Output voltage	120 V
AC input frequency	50 - 60 Hz
Nominal input voltage	100 - 120 V
Maximum current	20 A

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	17" (433 mm)
Height	1.75" (44.5 mm)
Depth	4.41" (112 mm)
Package width	19.7" (500 mm)
Package height	2.6" (66 mm)
Package depth	9.8" (249 mm)
Package weight	8.8 lbs (3.99 kg)
Dimensions (WxDxH)	17 x 4.41 x 1.75" (433 x 112 x 44.5 mm)
Package dimensions (WxDxH)	19.7 x 9.8 x 2.6" (500 x 249 x 66 mm)
