MBO Switched PDU 15A 120V

Cyberpower

MBO Switched PDU 15A 120V

Part #: PDU81001 Power Distribution Units (PDUs)

$919.95

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

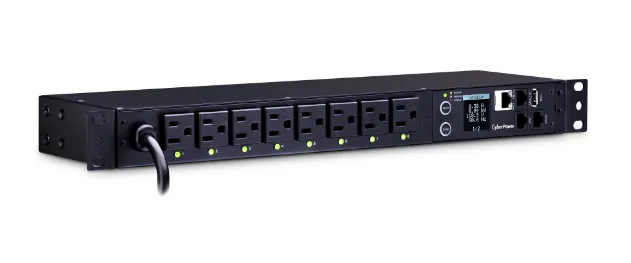

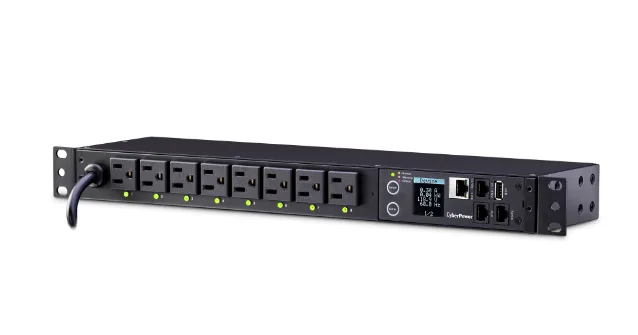

MBO Switched PDU 15A 120V Metered-by-Outlet SW 8OL 12ft 3yr Wty

Specifications

Design

Rack capacity	1U
Product colour	Black
Display	LCD
Certification	UL 60950-1 FCC Class A
PDU types	Metered, Monitored, Switched

Ergonomics

Cable length	141.7" (3.6 m)
LED indicators	Yes

General

Manufacturer Part Number	PDU81001
Country of Origin	PH

Management features

Monitoring	Current

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)

Physical

Weight	8.1 lb

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5–15P
Ethernet LAN (RJ-45) ports	4

Power

AC input frequency	50 - 60 Hz
Nominal input voltage	100-120 V
Maximum current	15 A
Power protection features	Short circuit

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	17" (433.1 mm)
Height	1.75" (44.5 mm)
Depth	4.41" (112 mm)
Dimensions (WxDxH)	17 x 4.41 x 1.75" (433.1 x 112 x 44.5 mm)
