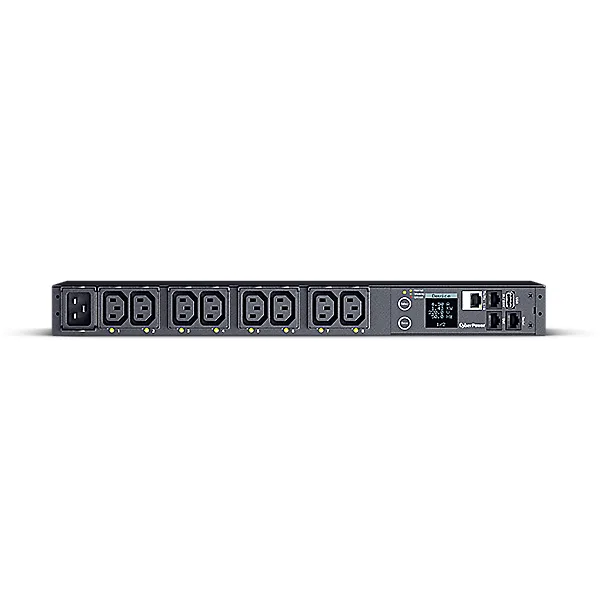

MBO Switched PDU 20A 208V

Cyberpower

MBO Switched PDU 20A 208V

Part #: PDU81005 Power Distribution Units (PDUs)

$801.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

MBO Switched PDU 20A 208V Metered-by-Outlet 8OL IEC 10ft 3yr Wty

Specifications

Certificates

Compliance certificates	RoHS

Design

Rack capacity	1U
Product colour	Black
Display	LCD
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
PDU types	Monitored, Switched
Mounting	Horizontal
Type	Single-phase
Housing material	Steel

Ergonomics

Cable length	120.1" (3.05 m)
LED indicators	Yes

Features

Daisy chain	Yes

General

Manufacturer Part Number	PDU81005
Country of Origin	US

Management features

Firmware upgradeable via	USB
Firmware upgradeable	Yes
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog

Operational conditions

Operating temperature (T-T)	0 - 60 °C, 32 - 140 °F
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)

Packaging content

Bundled software	PowerPanel Business, PowerPanel Enterprise

Physical

Weight	4.63 lb

Ports & interfaces

AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Ethernet LAN (RJ-45) ports	4
Serial ports quantity	1
USB ports quantity	1

Power

AC input frequency	50 / 60 Hz
Nominal input voltage	100 - 240 V
Nominal output voltage	100 - 240 V
Maximum current	16 A

Security

Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	17" (433 mm)
Height	1.73" (44 mm)
Depth	4.41" (112 mm)
Package width	19.7" (500 mm)
Package height	2.56" (65 mm)
Package depth	9.84" (250 mm)
Package weight	8.6 lbs (3.9 kg)
