Logitech

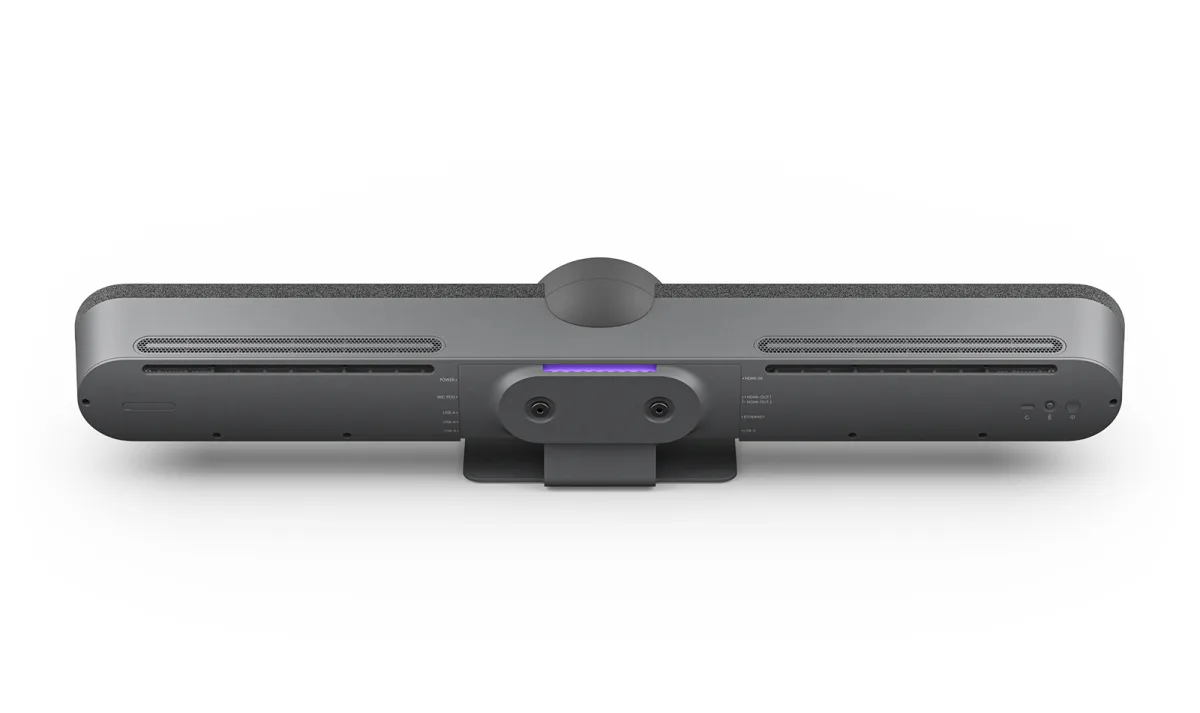

Logi MR Univ VC Appl w/Tap+Rally Bar

Part #: TAPRBGUNIAPP Conference Equipment

$4,725.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

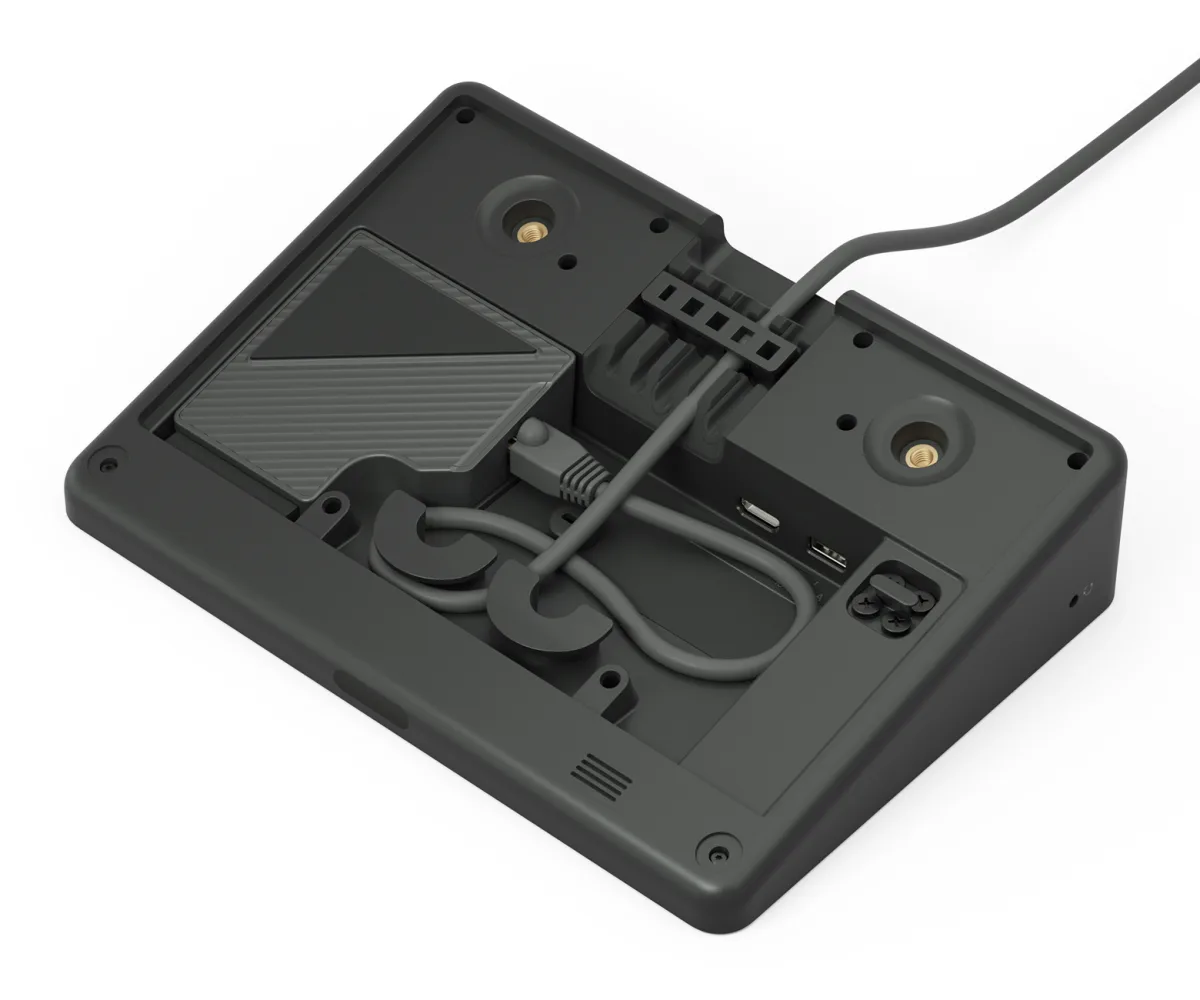

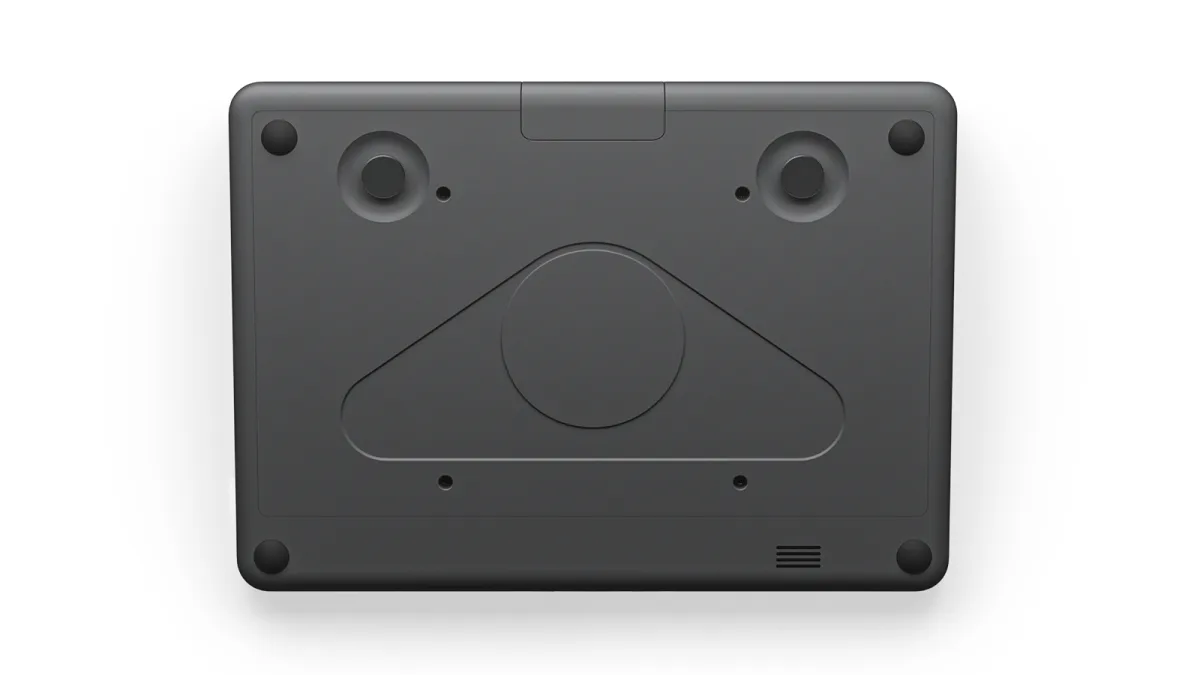

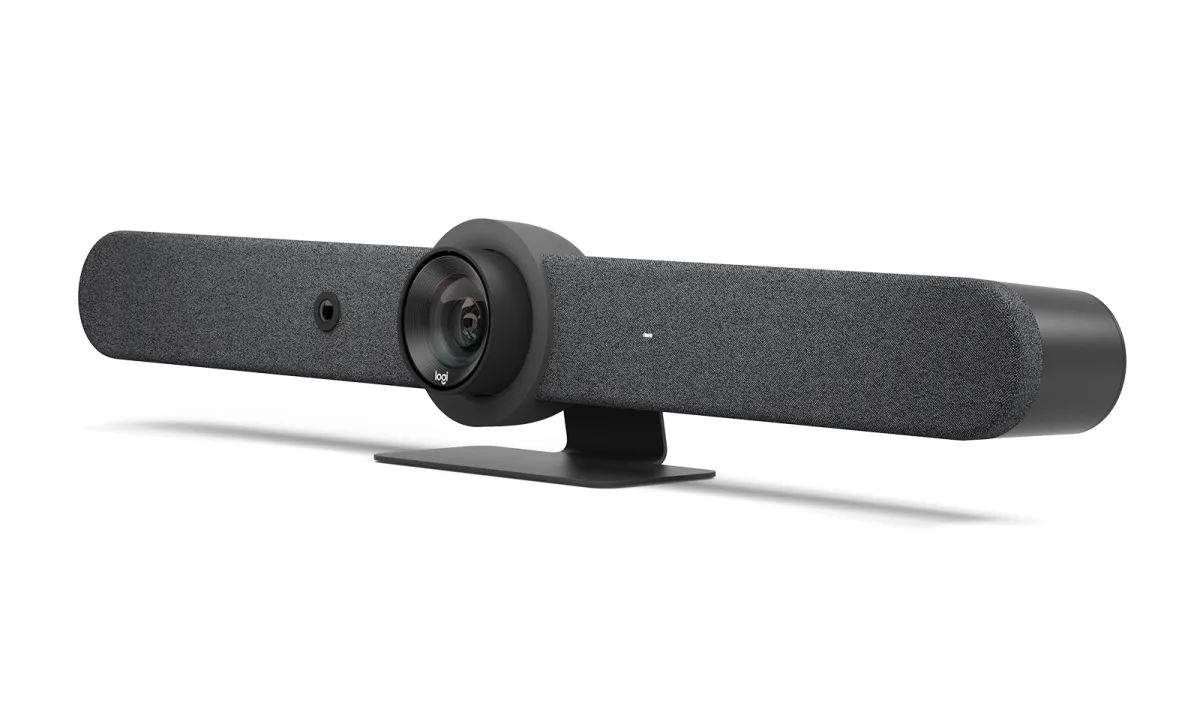

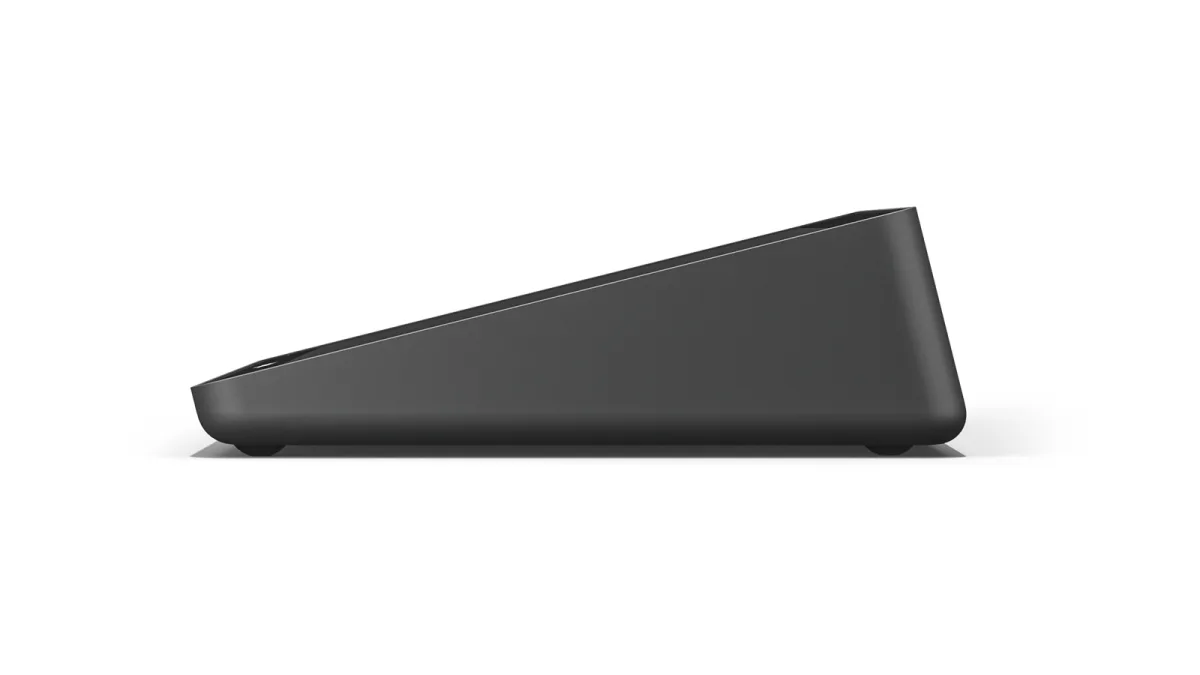

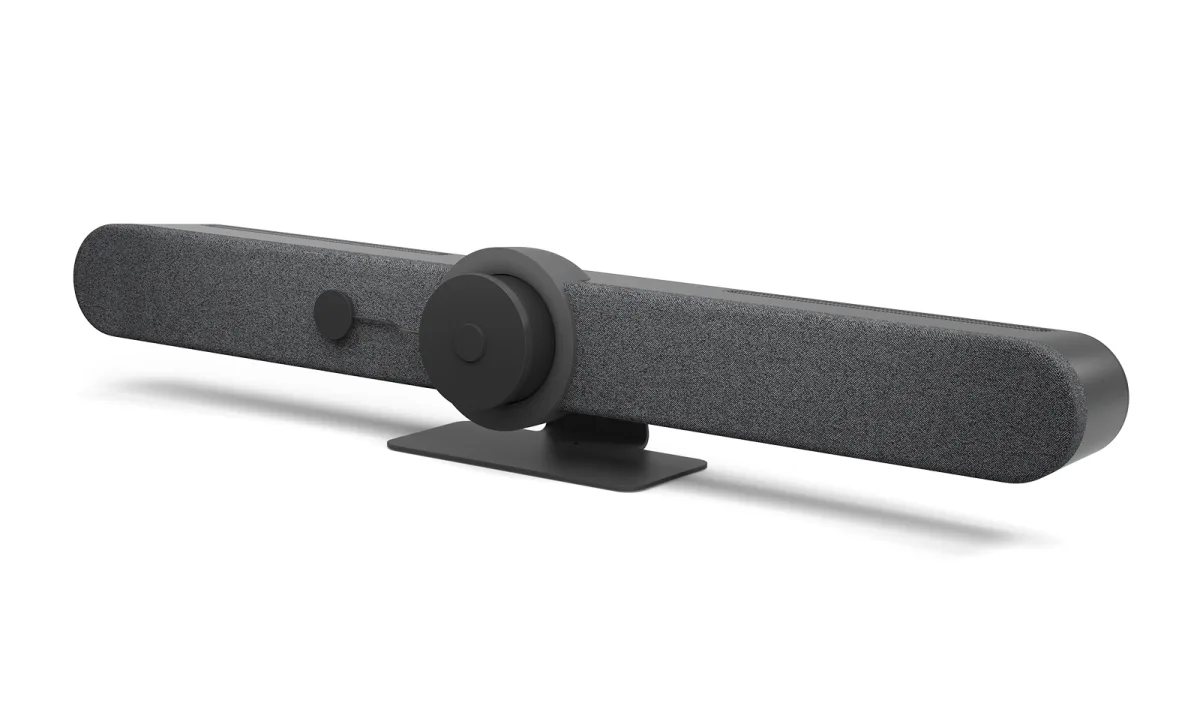

"Logitech MED Room Universal VC Appliance with Tap + Rally Bar, Graphite. PRE-KITTED BUNDLE: Camera/Mic/Speakers: Rally Bar Graphite (960-001308) Controller:Tap+Cat5e Kit (939-001950) Compute: N/A (Appliance Mode)"

Specifications

Audio

Built-in speaker(s)	Yes
Microphone pick-up range	177.2" (4.5 m)
Output level	90/99 dB
Output voltage Total Harmonic Distortion (THD)	2%

Camera

Field of view (FOV) angle	90°
Horizontal field of view	82.1°
Remote control interface	Bluetooth

Display

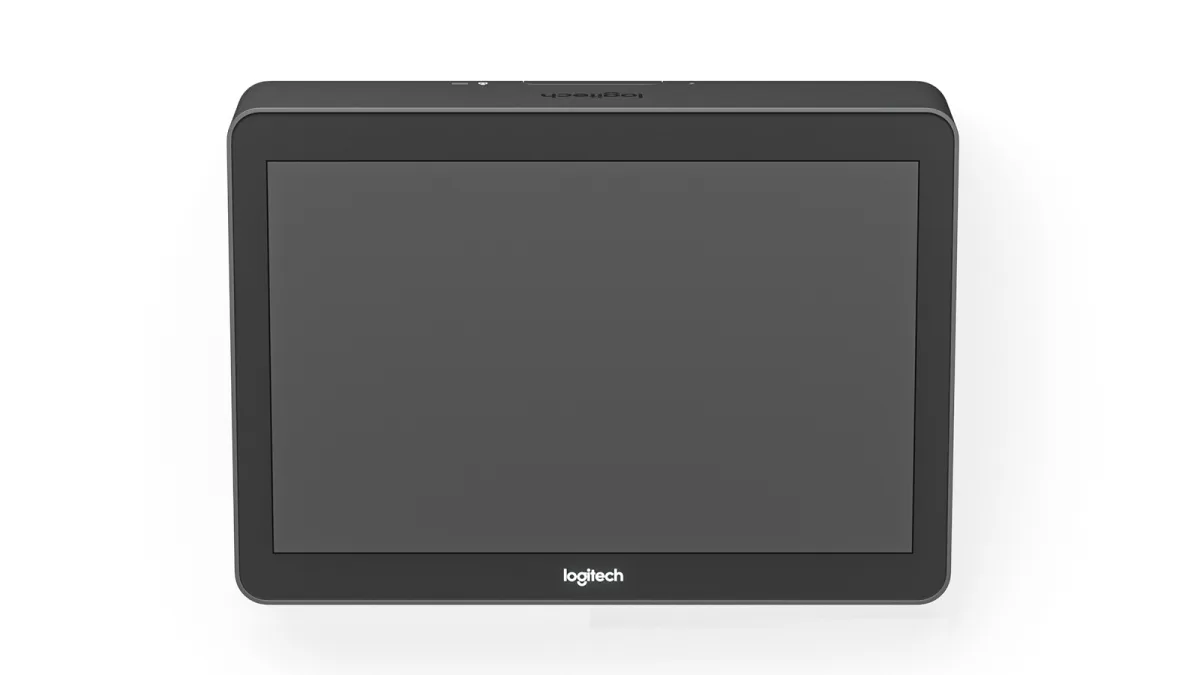

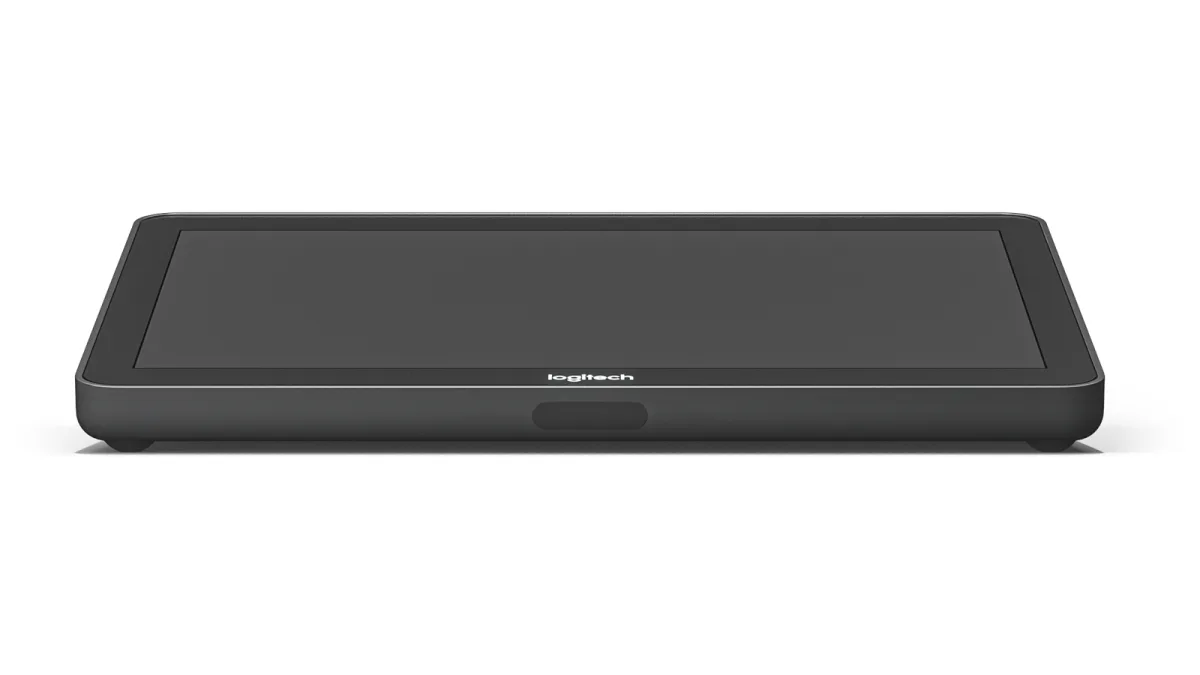

Display diagonal	10.1"
Built-in display	Yes
Touchscreen	Yes
Display resolution	1280 x 800 pixels

Features

Telepresence	No

Interface module

Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2
Interface module HDMI ports quantity	3
Interface module Ethernet LAN (RJ-45) ports	1

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Sound pressure level (max)	90 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C

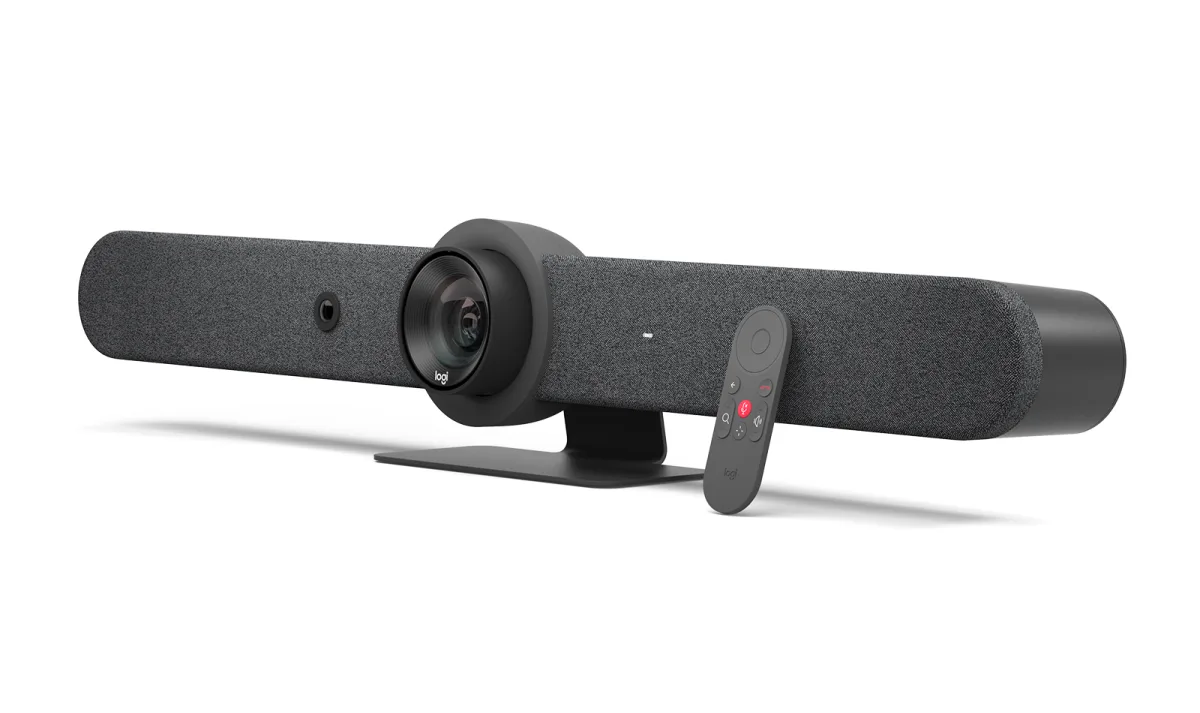

Remote control included	Yes
Power cable length	98.4" (2.5 m)
HDMI cable length	78.7" (2 m)

Performance

Product colour	Black, Graphite
Product type	Group video conferencing system
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Microphone in	Yes

Power

AC input voltage	100 - 240 V
DC input voltage	19 V
Current	4.754 A

Technical details

Harmonized System (HS) code	85176990

Video

Maximum frame rate	30 fps
Supported video modes	720p, 900p, 1440p, 2160p
HD type	4K Ultra HD
Digital zoom	3x
Optical zoom	5x

Weight & dimensions

Camera dimensions (WxDxH)	35.8 x 6.3 x 6.46" (910 x 160 x 164 mm)
Interface module dimensions (W x D x H)	9.61 x 7.05 x 2.28" (244 x 179 x 58 mm)
Interface module weight	2.76 lbs (1.25 kg)
Camera weight	15.6 lbs (7.08 kg)
