Logitech

Logi SML Unvi VC Appl w/Tap+RallyBarMini

Part #: TAPRMGUNIAPP Conference Equipment

$4,025.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

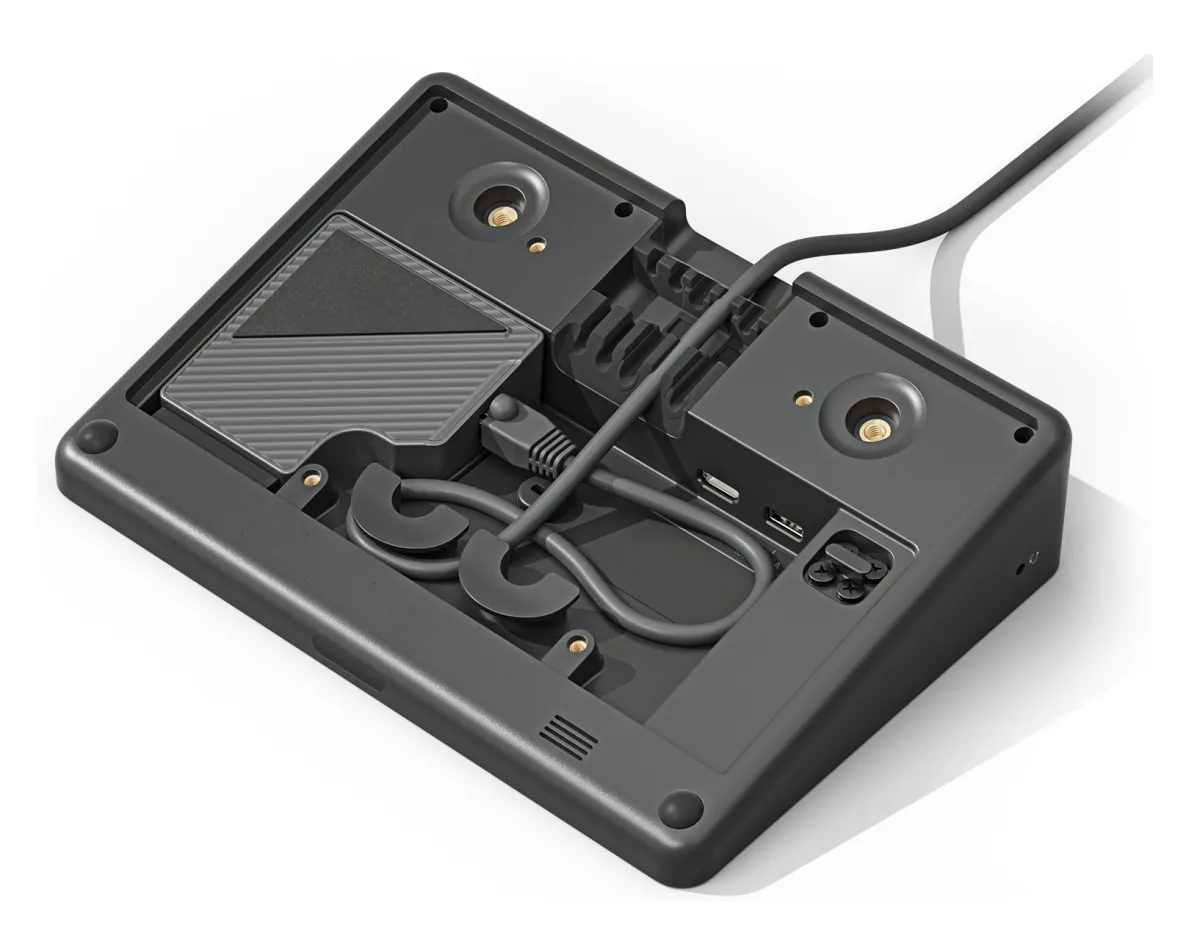

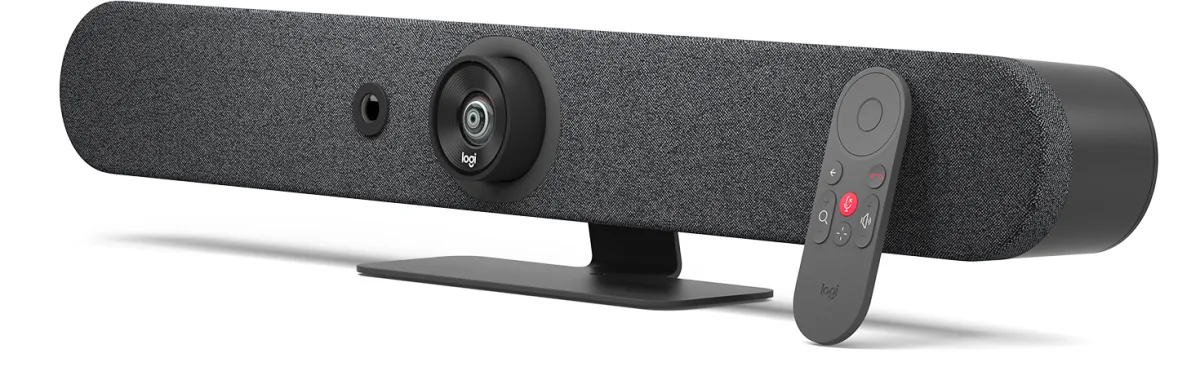

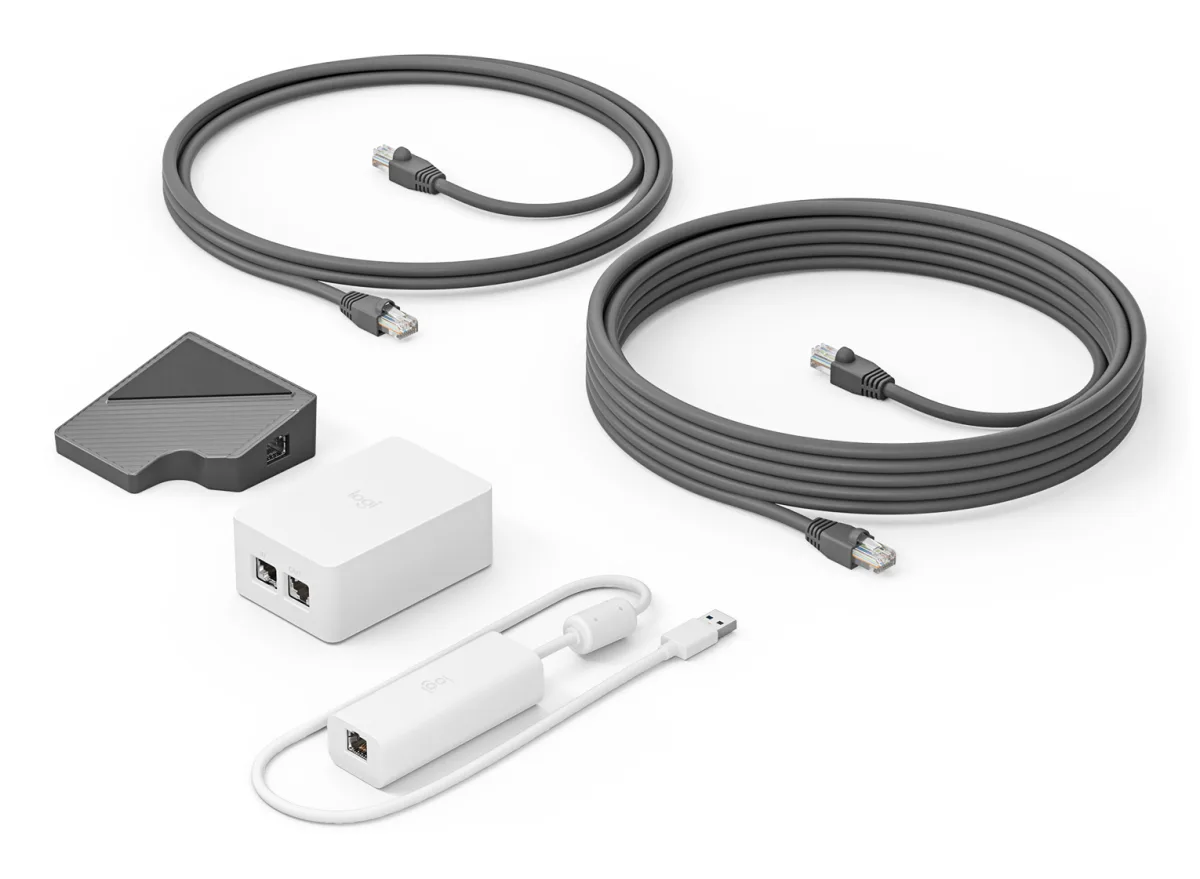

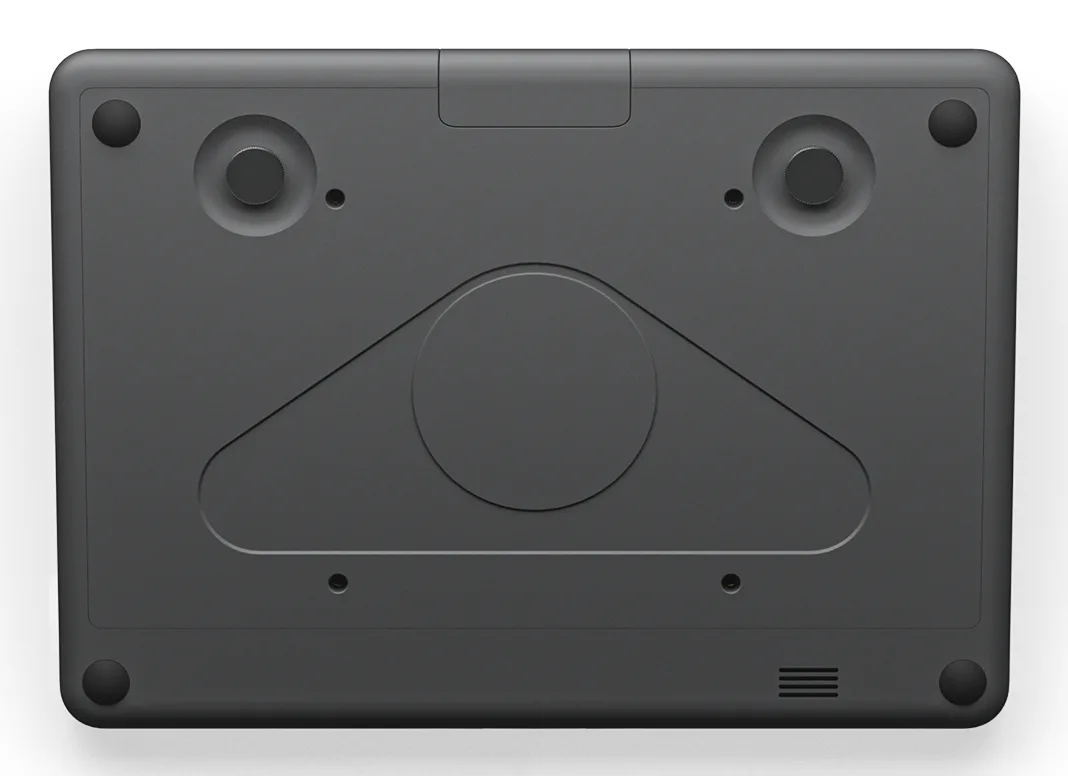

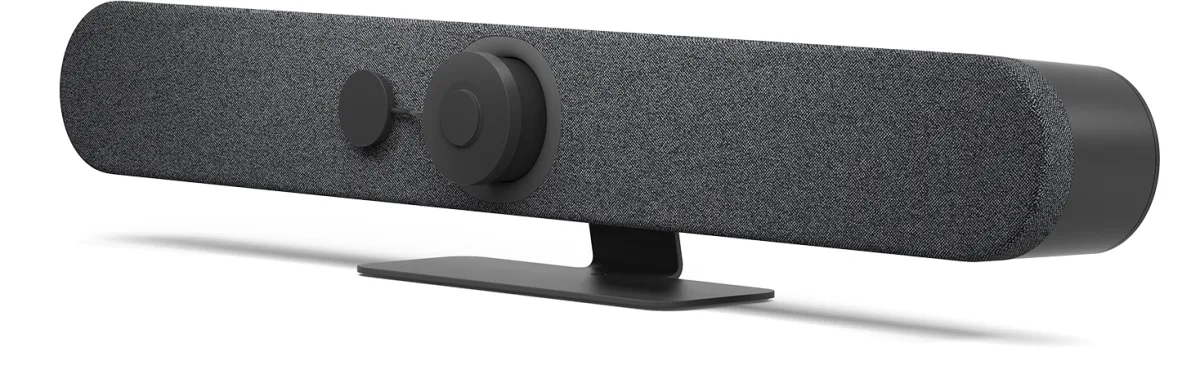

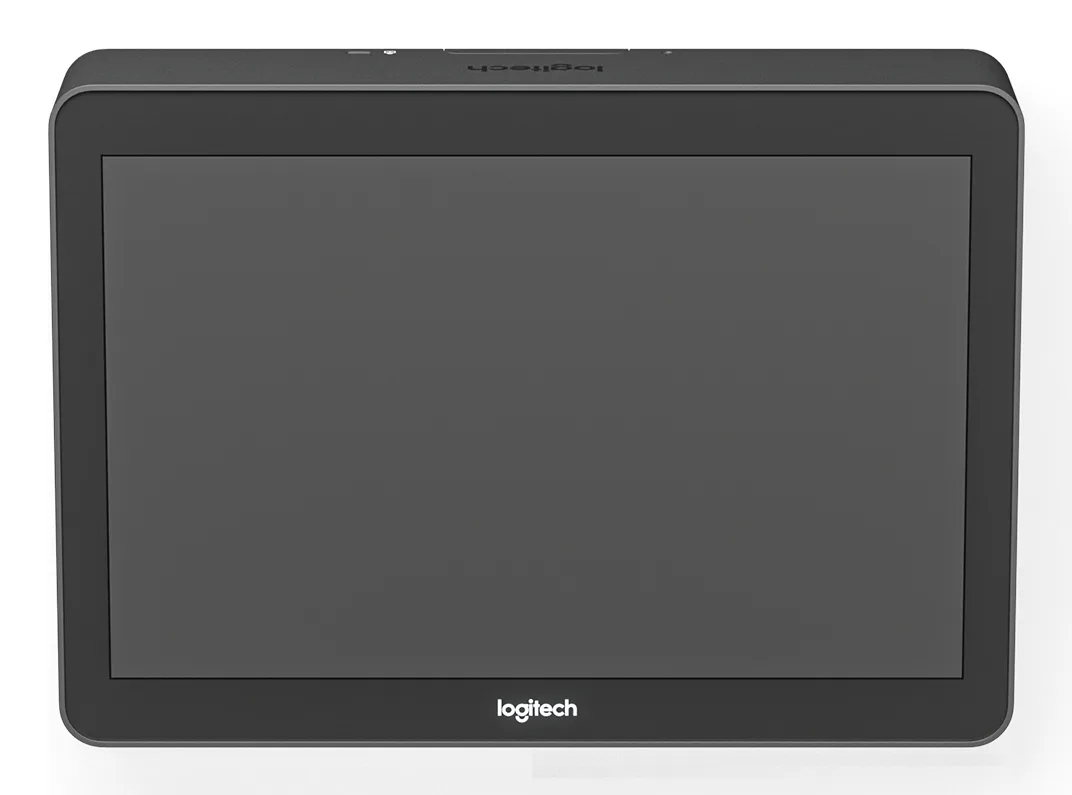

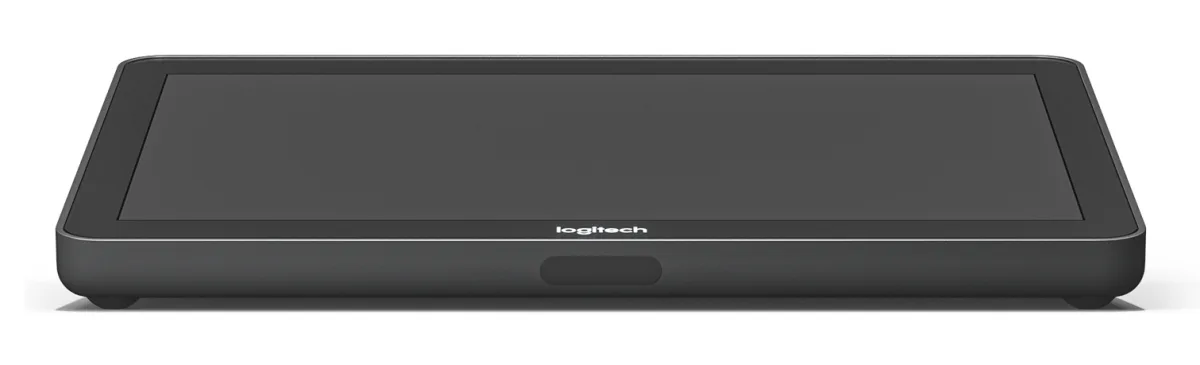

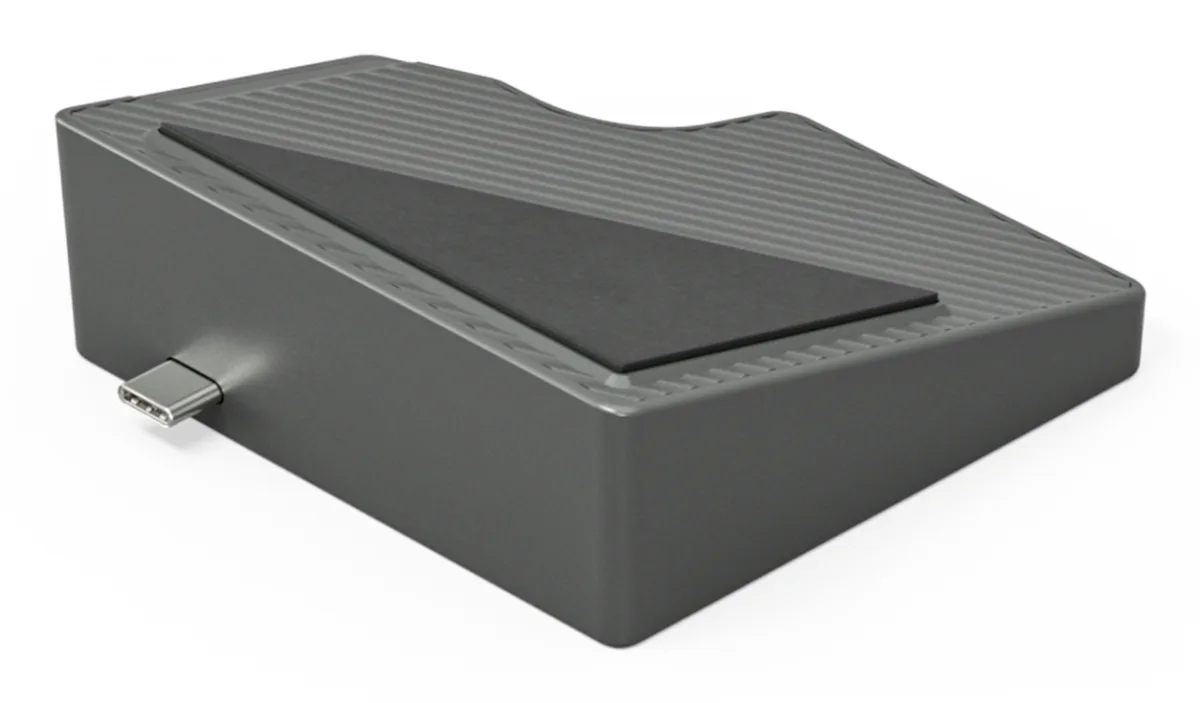

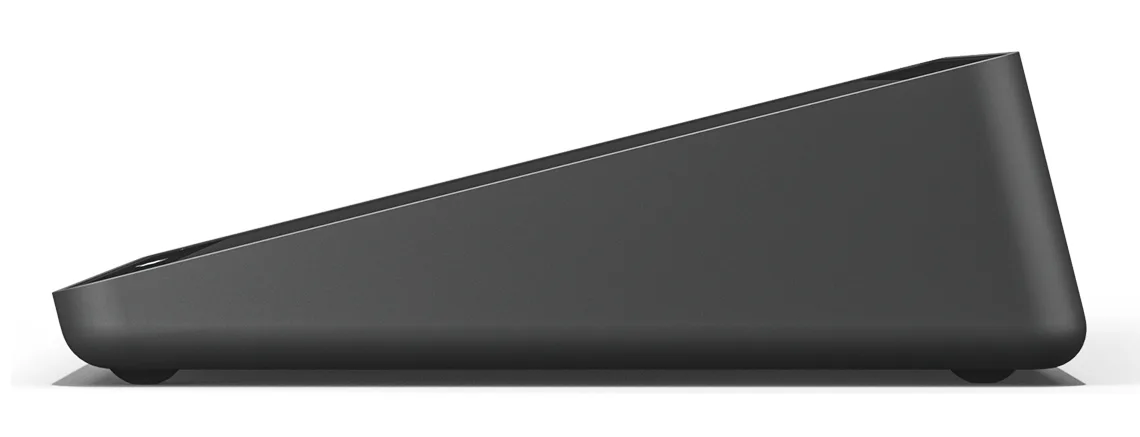

Logitech SML Room Universal VC Appliance with Tap + Rally Bar Mini Graphite. PRE-KITTED BUNDLE: Camera/Mic/Speakers: Rally Bar Mini Graphite (960-001336) Controller:Tap+Cat5e Kit (939-001950) Compute: N/A (Appliance Mode)

Specifications

Audio

Built-in speaker(s)	Yes
RMS rated power	8 W
Noise reduction	Yes
Microphone pick-up range	177.2" (4.5 m)
Echo cancellation	Yes
Audio beamforming	Yes
Line-out impedance	4 Ω
Driver diameter	2.76" (7 cm)
Output level	92/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Sample rates	0 - 48 kHz

Camera

Zoom capability	Yes
Horizontal field of view	113°
Vertical field of view	80.7°
Diagonal field of view	120°
Remote control interface	Bluetooth

Computer system

Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Display

Display	IPS
Display diagonal	10.1"
Touchscreen	Yes
Display resolution	1280 x 800 pixels
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	85°
Viewing angle, vertical	85°
Display brightness	400 cd/m²
Touchscreen type	Capacitive
Oleophobic coating	Yes

Features

Cable lock slot	Yes
Cable lock slot type	Kensington
Telepresence	No
Motion sensor	Yes

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Supported network protocols	IPv4, IPv6
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Mounting kit	Yes
Quick start guide	Yes
AC adapter included	Yes
Remote control included	Yes
Camera included	Yes
Power cable length	59.1" (1.5 m)
HDMI cable length	78.7" (2 m)

Performance

Product colour	Graphite
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
HDMI ports quantity	3
Microphone in	Yes
HDMI input ports quantity	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC
DC input voltage	19 V
Current	4.74 A

Video

Maximum frame rate	30 fps
Supported video modes	576p, 720p, 900p, 1440p, 2160p
HD type	4K Ultra HD
Digital zoom	4x
Maximum video resolution	3840 x 2160 pixels

Weight & dimensions

Weight	8.88 lbs (4.03 kg)
Width	28.3" (719 mm)
Height	3.6" (91.4 mm)
Depth	3.98" (101 mm)
Interface module dimensions (W x D x H)	9.61 x 7.05 x 2.28" (244 x 179 x 58 mm)
Interface module weight	2.76 lbs (1.25 kg)
