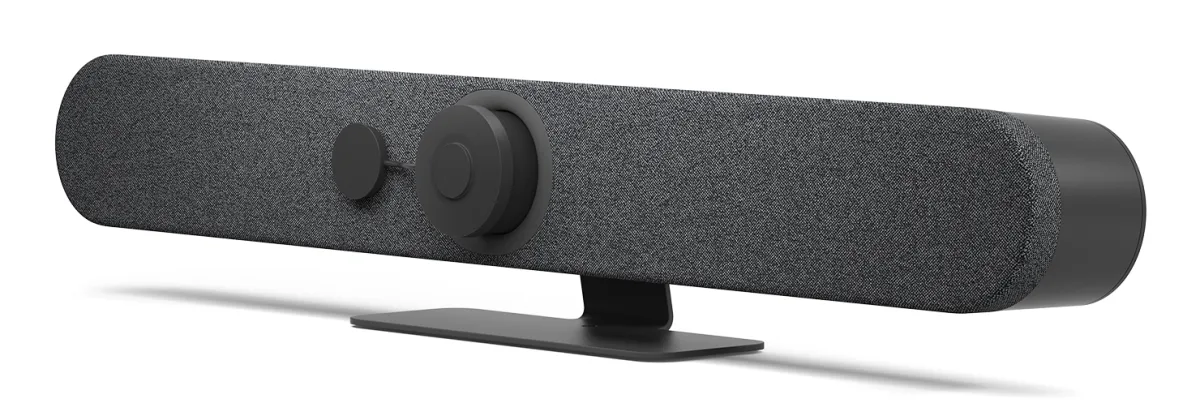

Rally Bar Mini (Graphite)
Logitech

Rally Bar Mini (Graphite)

Part #: 960-001336 Conference Equipment

$3,063.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

  • Genuine, sourced-to-order hardware
  • Secure checkout
  • Volume pricing by quote
Request a Quote
  • Availability and lead time confirmed before fulfillment
  • Compatible alternatives suggested when a part is constrained
  • Volume and project pricing available on request

Product Overview

Simplicity meets versatility with Rally Bar Mini, Logitech s most advanced all-in-one video bar for small meeting spaces. Deploy at scale in USB or appliance mode. Graphite

Specifications

Audio

Built-in speaker(s) Yes
Microphone pick-up range 177.2" (4.5 m)
Output level 90/99 dB
Output voltage Total Harmonic Distortion (THD) 2%

Camera

Field of view (FOV) angle 120°
Horizontal field of view 113°
Remote control interface Bluetooth

Computer system

Windows operating systems supported Yes
Mac operating systems supported MacOS

Features

Telepresence No

Interface module

Interface module RJ-45 ports quantity 1
Interface module HDMI input ports quantity 1
Interface module HDMI output ports quantity 2
Interface module HDMI ports quantity 3

Logistics data

Master (outer) case gross weight 10.4 lbs (4.73 kg)
Master (outer) case width 11.8" (300 mm)
Master (outer) case length 13" (330 mm)
Master (outer) case height 6.3" (160 mm)

Microphone

Number of microphones 6
Microphone sensitivity -36 dB
Microphone frequency 90 - 16000 Hz
Sound pressure level (max) 90 dB

Network

Ethernet LAN Yes
Security algorithms 128-bit AES
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Heat dissipation 64 BTU/h

Packaging content

Cables included AC, DC, HDMI, USB Type-A to USB Type-C

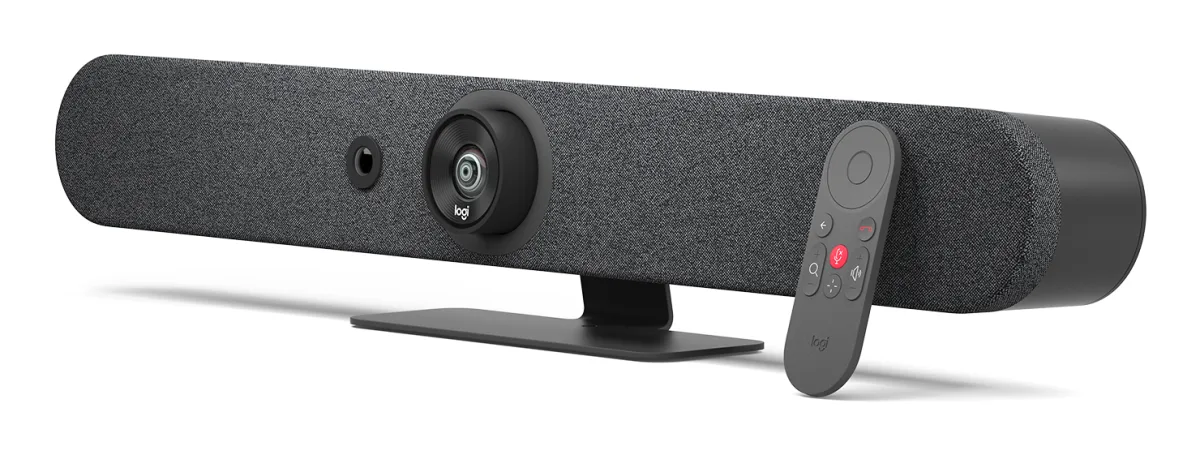

Packaging content Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
Batteries included Yes
Remote control included Yes
Power cable length 98.4" (2.5 m)
HDMI cable length 78.7" (2 m)

Performance

Product colour Graphite
Product type Group video conferencing system
PTZ control Yes
Tilt angle range -15 - 15°
Pan range -25 - 25°

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Microphone in Yes

Power

AC input voltage 100 - 240 V
Power source type AC
DC input voltage 19 V
Current 4.754 A
Number of batteries supported 1

Video

Maximum frame rate 30 fps
Supported video modes 720p, 900p, 1440p, 2160p
HD type 4K Ultra HD
Digital zoom 4x

Weight & dimensions

Weight 8.88 lbs (4.03 kg)
Width 28.3" (719 mm)
Height 3.6" (91.4 mm)
Depth 3.98" (101 mm)
Package width 7.52" (191 mm)
Package height 7.83" (199 mm)
Package depth 31.1" (789 mm)
Package weight 12.8 lbs (5.8 kg)
