Logitech

Rally Bar - TAA

Part #: 960-001564 Conference Equipment

$3,763.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

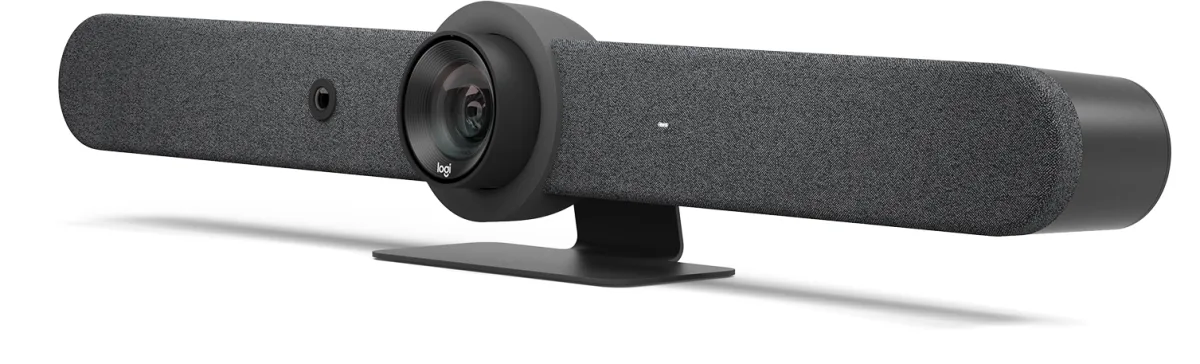

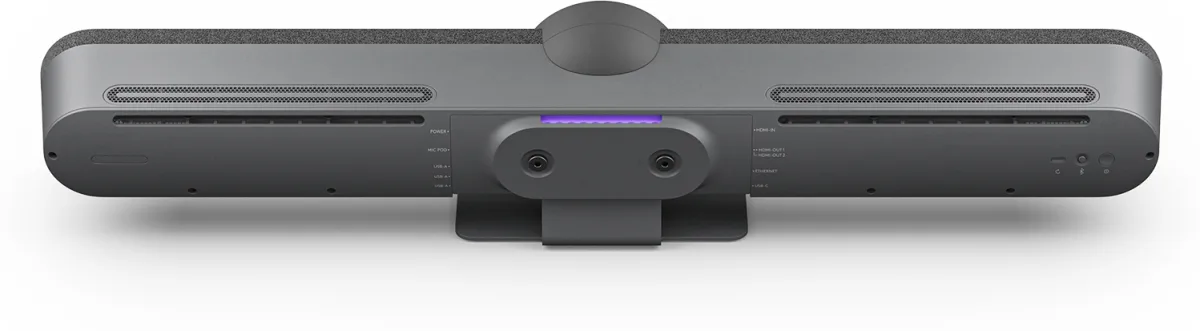

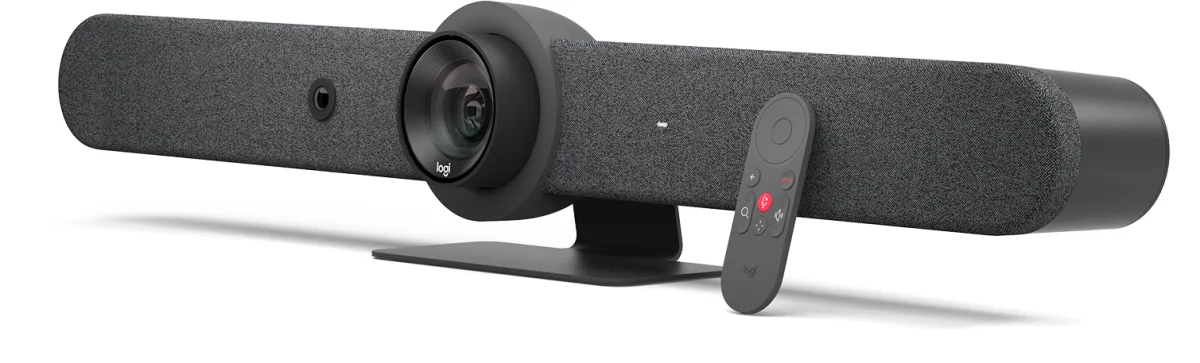

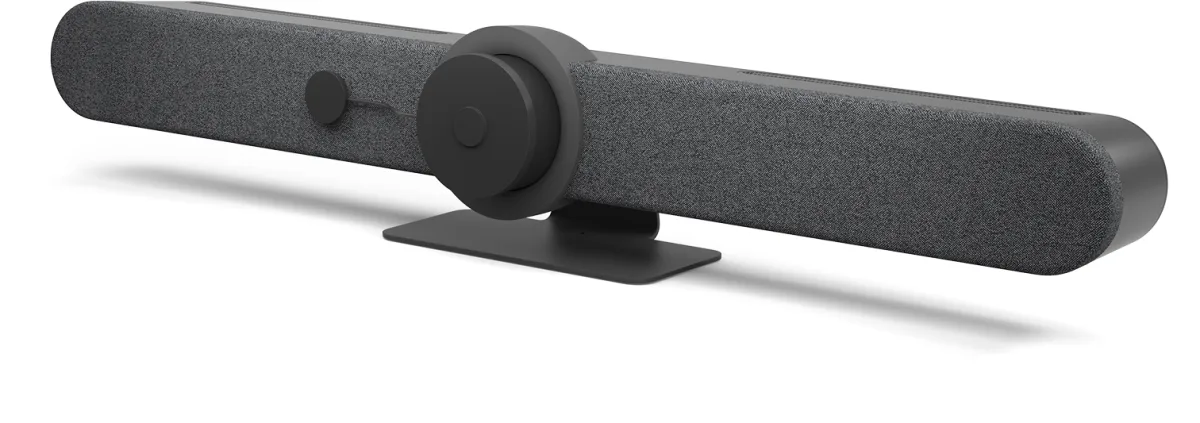

TAA Compliant - Rally Bar, Graphite, Video Bar, 4K, 15x zoom, PTZ, all-in-one design for sm/med rooms. Includes: Rally Bar w/stand, power supply, AC power cord, HDMI cable (2m/6.5ft), USB cable (2.2m/7/2ft), BT remote control, lens caps 2-yr limited warranty

Specifications

Audio

Built-in speaker(s)	Yes
RMS rated power	8 W
Number of speakers	2
Microphone pick-up range	275.6" (7 m)
Echo cancellation	Yes
Audio beamforming	Yes
Line-out impedance	4 Ω
Output level	92/99 dB
Output voltage Total Harmonic Distortion (THD)	2%

Camera

Camera type	Single camera
Zoom capability	Yes
Horizontal field of view	82.1°
Vertical field of view	52.2°
Diagonal field of view	90°
Privacy type	Privacy cover
Privacy camera	Yes
Remote control interface	Bluetooth

Certificates

Certification	TAA Compliant

Computer system

Operating system installed	CollabOS
Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Features

Telepresence	No

Logistics data

Master (outer) case gross weight	10.4 lbs (4.73 kg)
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	13" (330 mm)
Master (outer) case height	6.3" (160 mm)

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	64 BTU/h

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Packaging content	Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
Quick start guide	Yes
Batteries included	Yes
AC adapter included	Yes
Remote control included	Yes
Power cable length	98.4" (2.5 m)
HDMI cable length	78.7" (2 m)

Performance

Product colour	Graphite
Product type	Group video conferencing system
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
HDMI ports quantity	3
Microphone in	Yes
HDMI input ports quantity	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC
Current	4.74 A
DC output voltage	19 V
Number of batteries supported	1

Video

HD type	4K Ultra HD
Digital zoom	3x
Optical zoom	5x

Weight & dimensions

Weight	15.6 lbs (7.08 kg)
Width	35.8" (910 mm)
Height	6.46" (164 mm)
Depth	5.14" (130.5 mm)
Package width	8.15" (207 mm)
Package height	8.58" (218 mm)
Package depth	38.9" (989 mm)
Package weight	20.5 lbs (9.28 kg)
