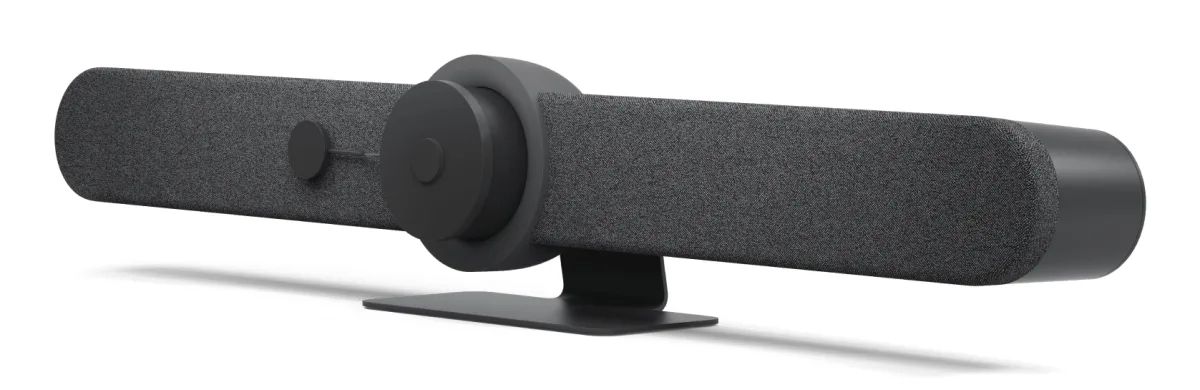

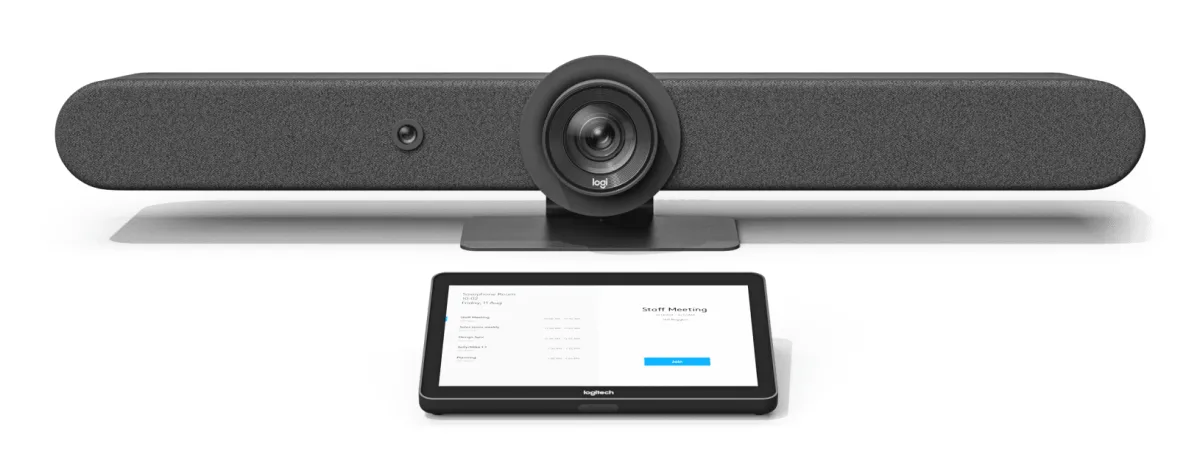

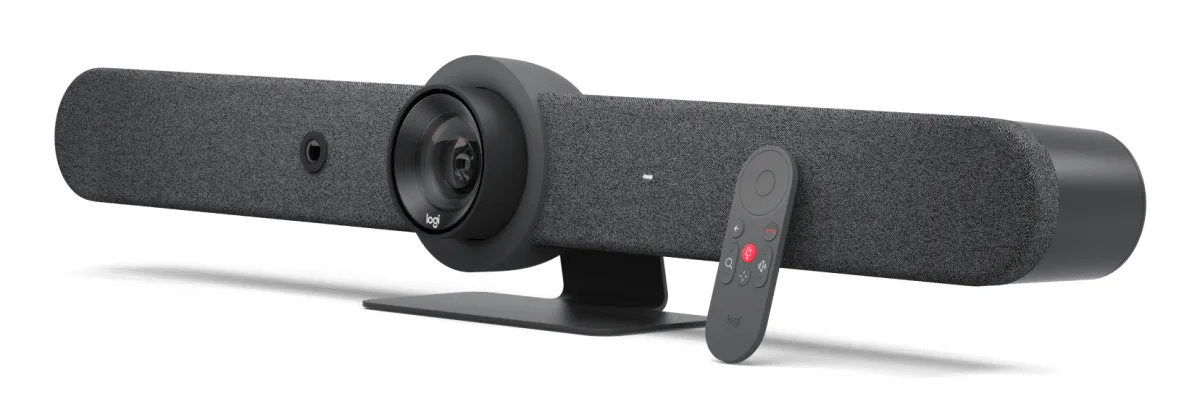

Logitech Rally Bar No-Radio - Graphite

Logitech

Logitech Rally Bar No-Radio - Graphite

Part #: 960-001669 Conference Equipment

$3,912.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

Logitech Rally Bar No-Radio - Graphite TAA

Specifications

Audio

Built-in speaker(s)	Yes
Number of speakers	2
Noise reduction	Yes
Microphone pick-up range	275.6" (7 m)
Line-out impedance	4 Ω
Driver diameter	2.76" (7 cm)
Output voltage Total Harmonic Distortion (THD)	2%

Camera

Field of view (FOV) angle	90°
Camera type	Single camera
Zoom capability	Yes
Horizontal field of view	82.1°
Vertical field of view	52.2°
Combined zoom	15x

Features

Telepresence	No

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Sound pressure level (max)	99 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Manual	Yes
AC adapter included	Yes
Remote control included	No
HDMI cable length	78.7" (2 m)

Performance

Product colour	Graphite
Product type	Group video conferencing system
Bluetooth	No
Number of cameras	1
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

USB 2.0 ports quantity	3
HDMI ports quantity	3
Microphone in	Yes
HDMI input ports quantity	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC, DC
DC output voltage	19 V
Power plug type	Type C
DC output current	4.74 A

Video

Maximum frame rate	30 fps
Supported video modes	720p, 900p, 1080p, 1440p, 2160p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
HD type	4K Ultra HD
Digital zoom	3x
Maximum video resolution	3840 x 2160 pixels
Optical zoom	5x

Weight & dimensions

Weight	15.6 lbs (7.08 kg)
Width	35.8" (910 mm)
Height	6.46" (164 mm)
Depth	5.14" (130.5 mm)
