Logitech

Rally Bar+Tap IP Bundle

Part #: 991-000419 Conference Equipment

$4,551.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

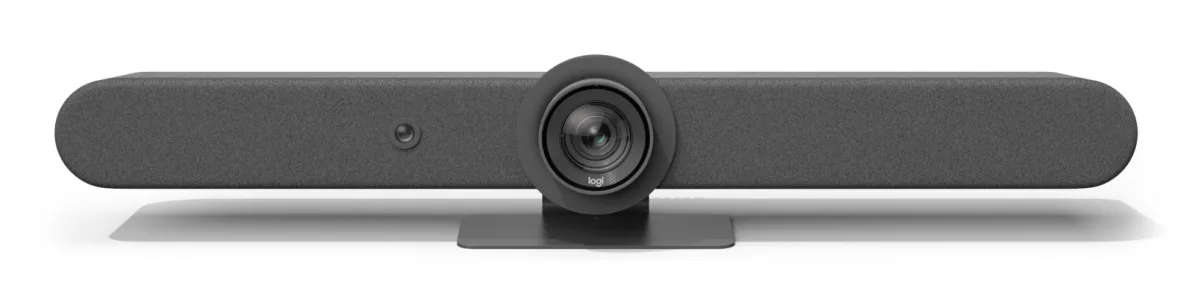

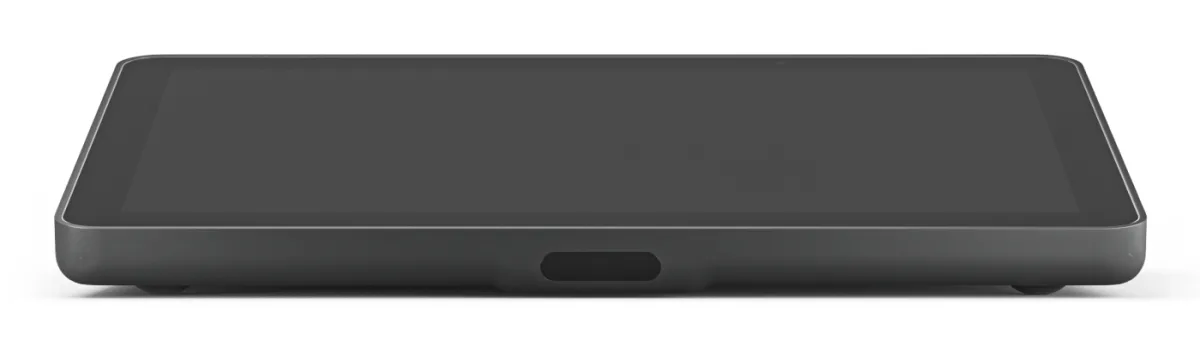

Video conferencing appliance kit for medium rooms with Logitech Rally Bar and Tap IP. Set up for Microsoft Teams Rooms, Zoom Rooms or RingCentral Rooms. Camera/Mic/Speakers: Rally Bar Graphite (960-001308) Controller: Tap IP (952-000085) Compute: N/A (Appliance Mode)

Specifications

Audio

Built-in speaker(s)	Yes
RMS rated power	8 W
Noise reduction	Yes
Microphone pick-up range	177.2" (4.5 m)
Echo cancellation	Yes
Audio beamforming	Yes
Line-out impedance	4 Ω
Driver diameter	2.76" (7 cm)
Output level	92/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Sample rates	0 - 48 kHz

Camera

Zoom capability	Yes
Horizontal field of view	82.1°
Vertical field of view	52.2°
Diagonal field of view	90°
Remote control interface	Bluetooth
Combined zoom	15x

Computer system

Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Display

Display	IPS
Display diagonal	10.1"
Touchscreen	Yes
Display resolution	1280 x 800 pixels
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	85°
Viewing angle, vertical	85°
Display brightness	400 cd/m²
Touchscreen type	Capacitive
Oleophobic coating	Yes

Features

Cable lock slot	Yes
Cable lock slot type	Kensington
Telepresence	No
Motion sensor	Yes

Interface module

Interface module RJ-45 ports quantity	1

Logistics data

Master (outer) case gross weight	28.7 lbs (13 kg)
Master (outer) case width	10.6" (270 mm)
Master (outer) case length	39.9" (1013 mm)
Master (outer) case height	12.9" (327 mm)

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Supported network protocols	IPv4, IPv6
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h

Packaging content

Packaging content	Logitech Rally Bar video bar Rally Bar Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation
Mounting kit	Yes
Quick start guide	Yes
Batteries included	Yes
AC adapter included	Yes
Remote control included	Yes
Camera included	Yes
Power cable length	59.1" (1.5 m)
HDMI cable length	78.7" (2 m)
Headset included	No

Performance

Product colour	Graphite
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
HDMI ports quantity	3
HDMI input ports quantity	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC
DC input voltage	19 V
Current	4.74 A
Battery technology	Lithium
Battery capacity	220 mAh
Number of batteries supported	1

System requirements

Minimum system requirements	System Requirements Internet Connection: Wired or wireless Appliance Mode: Room solution software license (varies by service provider, not included) USB Mode: Windows 10 or later, Windows 7 with the latest service pack, latest 2 versions of macOS

Video

Maximum frame rate	30 fps
Supported video modes	576p, 720p, 900p, 1440p, 2160p
HD type	4K Ultra HD
Digital zoom	3x
Maximum video resolution	3840 x 2160 pixels
Optical zoom	5x

Weight & dimensions

Weight	15.6 lbs (7.08 kg)
Width	35.8" (910 mm)
Height	6.46" (164 mm)
Depth	6.3" (160 mm)
Package width	10.4" (264 mm)
Package height	12.4" (314 mm)
Package depth	39.6" (1007 mm)
Package weight	28.7 lbs (13 kg)
Interface module dimensions (W x D x H)	9.69 x 6.74 x 2.21" (246.2 x 171.3 x 56.1 mm)
Interface module weight	2.2 lbs (1 kg)
