Product Overview

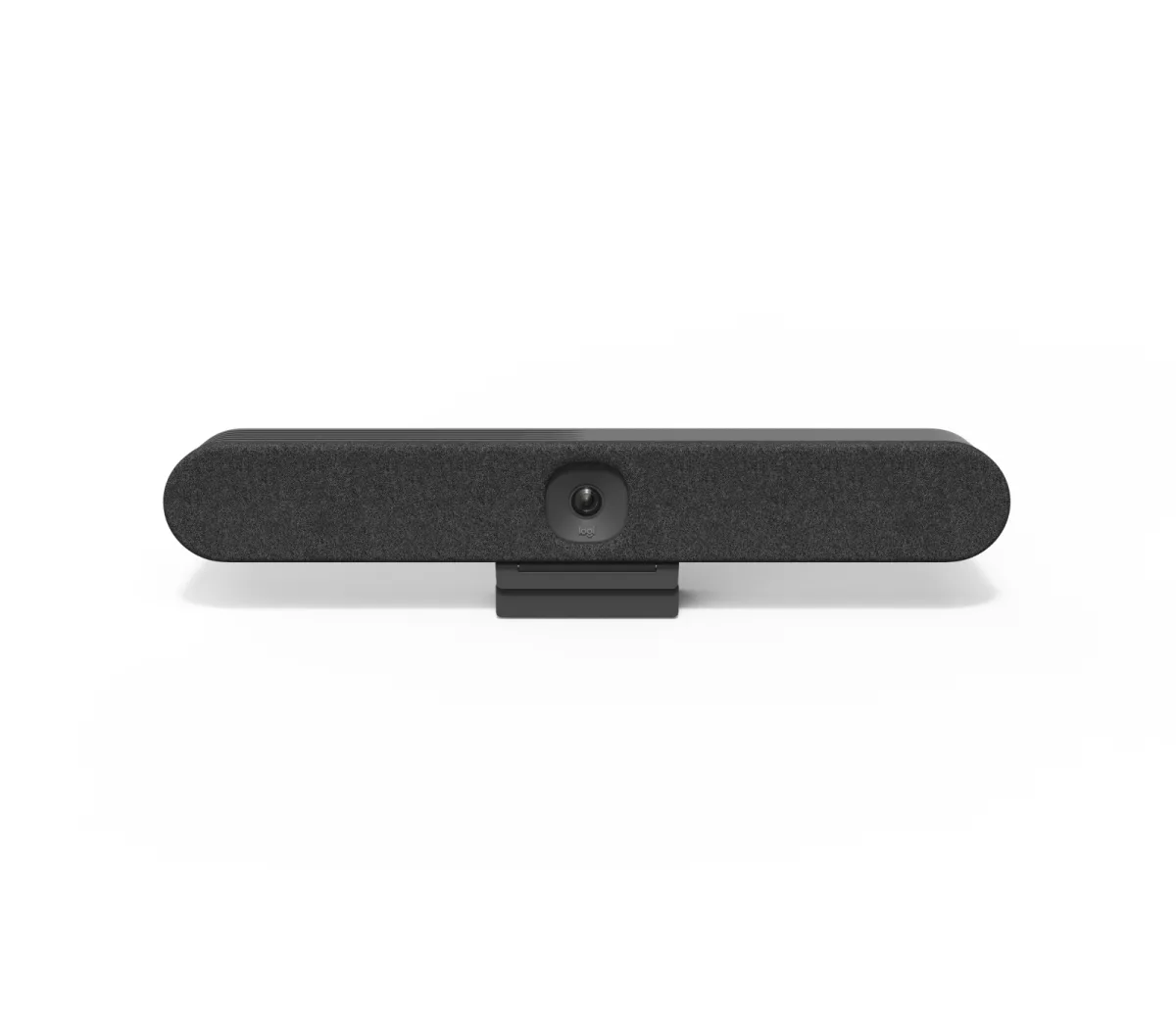

Logitech Rally Bar Huddle + Tap IP Bundle is an all-in-one video bar for huddle and small rooms. It s quick to set up, easy to use, simple to manage. Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, multi functional mount, integrated motorized privacy shutter, Logitech CollabOS platform; also includes 1 Tap IP Touch Controller, Graphite with (4) VESA Mounting Screws, microfiber cloth; 2-yr limited warranty Certified for use with Google Appliance Mode

Specifications

Audio

Built-in speaker(s)	Yes
Speaker power	8 W
Echo cancellation	Yes
Audio beamforming	Yes
Line-out impedance	4 Ω
Driver diameter	2.17" (5.5 cm)
Output voltage Total Harmonic Distortion (THD)	2%
Sample rates	0 - 48 kHz

Camera

Camera type	Single camera
Zoom capability	Yes
Horizontal field of view	113°
Vertical field of view	80°
Diagonal field of view	120°
Privacy type	Privacy shutter
Privacy camera	Yes

Computer system

Windows operating systems supported	Yes
Mac operating systems supported	MacOS
VESA mounting	Yes

Display

Display	IPS
Display diagonal	10.12"
Touchscreen	Yes
Display resolution	1280 x 800 pixels

Features

Telepresence	No

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Sound pressure level (max)	83 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Supported network protocols	IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Packaging content	Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
Batteries included	No
AC adapter included	Yes
Power cable length	98.4" (2.5 m)
HDMI cable length	78.7" (2 m)

Performance

Product colour	Graphite
Product type	Group video conferencing system
Bluetooth	Yes
PTZ control	Yes
Tilt angle range	-32 - 32°
Number of persons	6 person(s)
Pan range	-48 - 48°
Camera cable length (max)	86.6" (2.2 m)

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power over Ethernet (PoE) ports quantity	1
HDMI input ports quantity	1
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100-240 V
Power source type	AC
Current	2.1 A
DC output voltage	19 V

Video

HD type	4K Ultra HD
Digital zoom	4x

Weight & dimensions

Weight	3.97 lbs (1.8 kg)
Width	21.6" (549.6 mm)
Height	3.11" (78.9 mm)
Depth	2.99" (76 mm)
Package width	8.61" (218.6 mm)
Package height	10.3" (262.3 mm)
Package depth	24.9" (633.6 mm)
Package weight	13 lbs (5.89 kg)
