Logitech

Rally Bar No-Radio kit TAA/NDAA

Part #: 991-000536 Conference Equipment

$5,339.99

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

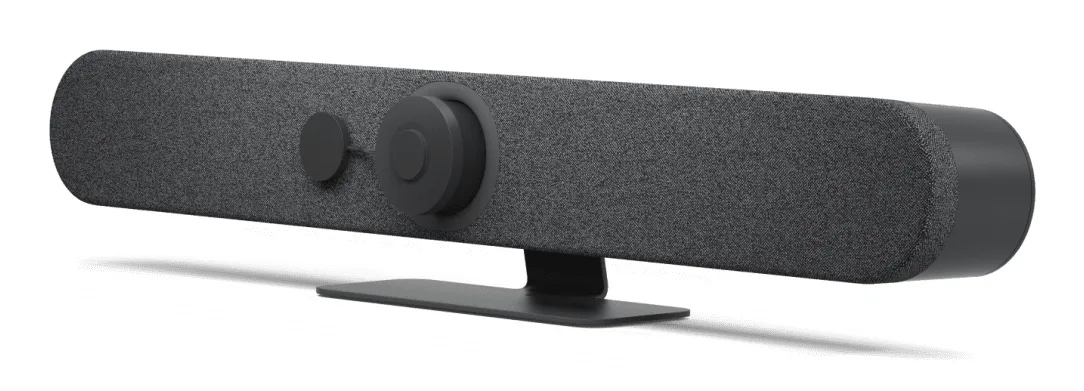

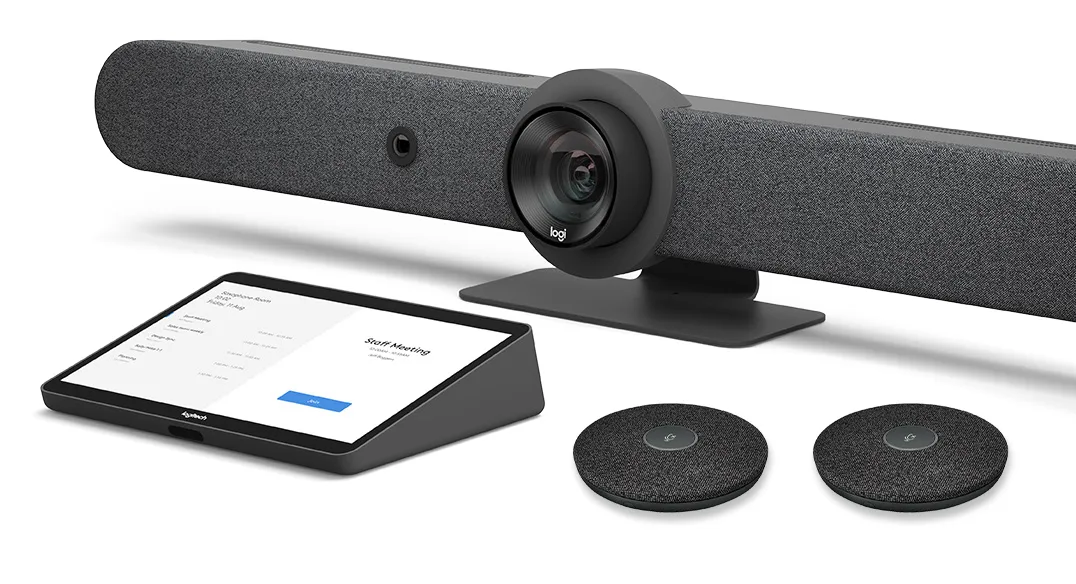

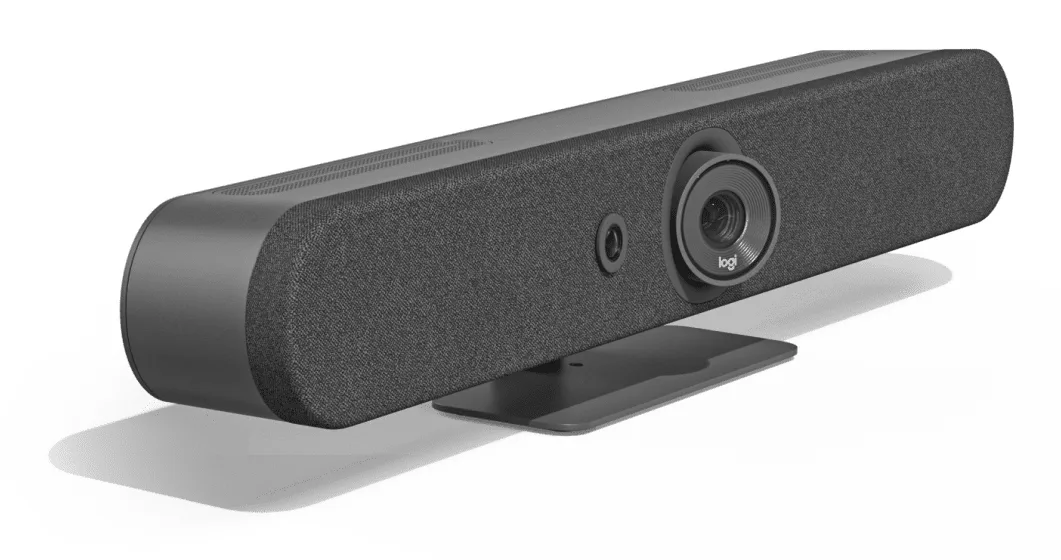

Rally Bar No-Radio Kit includes Rally Bar No-Radio, Tap Cat5e, (2) Mic Pods. TAA/NDAA Compliant

Specifications

Audio

Built-in speaker(s)	Yes
RMS rated power	8 W
Noise reduction	Yes
Microphone pick-up range	177.2" (4.5 m)
Echo cancellation	Yes
Audio beamforming	Yes
Line-out impedance	4 Ω
Driver diameter	2.76" (7 cm)
Output level	90/99 dB
Output voltage Total Harmonic Distortion (THD)	2%
Sample rates	0 - 48 kHz

Camera

Zoom capability	Yes
Horizontal field of view	113°
Vertical field of view	80.7°
Diagonal field of view	120°

Computer system

Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Features

Telepresence	No
Motion sensor	Yes

Logistics data

Master (outer) case gross weight	10.4 lbs (4.73 kg)
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	13" (330 mm)
Master (outer) case height	6.3" (160 mm)

Microphone

Number of microphones	6
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB

Network

Ethernet LAN	Yes
Security algorithms	128-bit AES
Ethernet LAN data rates	10,100,1000 Mbit/s

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h

Packaging content

Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Packaging content	Logitech Rally Bar Logitech TAP Cat5e Logitech Mic Pod x2
Mounting kit	Yes
Quick start guide	Yes
Batteries included	Yes
AC adapter included	Yes
Camera included	Yes
External interface module included	Yes
Power cable length	59.1" (1.5 m)
Speaker included	Yes
HDMI cable length	78.7" (2 m)
Headset included	No

Performance

Product colour	Graphite
Product type	Conferencing system set
PTZ control	Yes
Tilt angle range	-15 - 15°
Pan range	-25 - 25°

Ports & interfaces

DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
HDMI ports quantity	3
Microphone in	Yes
HDMI input ports quantity	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC
DC input voltage	19 V
Current	4.74 A
Number of batteries supported	1

Video

Maximum frame rate	30 fps
Supported video modes	576p, 720p, 900p, 1440p, 2160p
HD type	4K Ultra HD
Digital zoom	4x
Maximum video resolution	3840 x 2160 pixels

Weight & dimensions

Weight	8.88 lbs (4.03 kg)
Width	28.3" (719 mm)
Height	3.6" (91.4 mm)
Depth	3.98" (101 mm)
Package width	7.52" (191 mm)
Package height	7.83" (199 mm)
Package depth	31.1" (789 mm)
Package weight	12.8 lbs (5.8 kg)
