Yealink

Yealink MVC340C4000

Part #: 1106993 Conference Equipment

$2,399.00

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

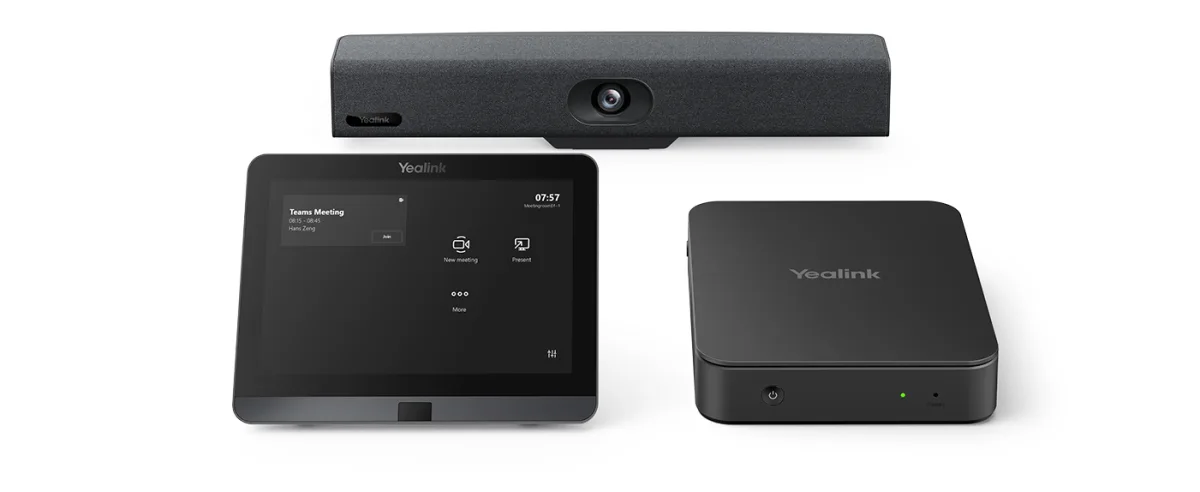

Core Features: Easy Deployment Auto Framing Speaker Tracking Electric Lens Cap Wireless Content Sharing Device Management Box Contents: MCore Pro, Gen3 MiniPC MTouch E2, Gen3 Touch Panel UVC34 AllinOne Video Bar

Specifications

Audio

Microphone pick-up range	196.9" (5 m)
Echo cancellation	Yes
Audio system full duplex	Yes
Audio beamforming	Yes

Camera

Field of view (FOV) angle	120°
Camera type	Single camera
Zoom capability	Yes
Horizontal field of view	110°
Sensor type	CMOS
Image sensor size	1/2.8"
Vertical field of view	78°
Diagonal field of view	120°

Computer system

Operating system installed	Windows 10 IoT Enterprise
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Processor generation	11th gen Intel® Core™ i5

Display

Display	IPS
Display diagonal	8"
Built-in display	Yes
Touchscreen	Yes
Display resolution	1280 x 800 pixels
Touchscreen type	Capacitive

Features

Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Memory

Internal memory	8196 MB
Internal memory type	DDR4
Storage media type	SSD
Total storage capacity	128 GB

Microphone

Number of microphone arrays	8

Network

Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Packaging content

Cables included	USB
Quick start guide	Yes
AC adapter included	Yes
Camera included	Yes

Performance

Product colour	Black, Gray
Product type	Group video conferencing system
Bluetooth	Yes
Bluetooth version	5.2
Number of cameras	1
Auto framing	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B
HDMI ports quantity	3

Video

Maximum frame rate	30 fps
Supported video modes	1080p, 2160p
HD type	4K Ultra HD
Megapixel (approx.)	8 MP
Maximum video resolution	3840 x 2160 pixels

Weight & dimensions

Camera dimensions (WxDxH)	15 x 2.17 x 2.17" (380 x 55 x 55 mm)
Interface module dimensions (W x D x H)	7.95 x 5.94 x 3.94" (202 x 151 x 100 mm)
Interface module weight	2.2 lbs (1 kg)
Camera weight	2.82 lbs (1.28 kg)
