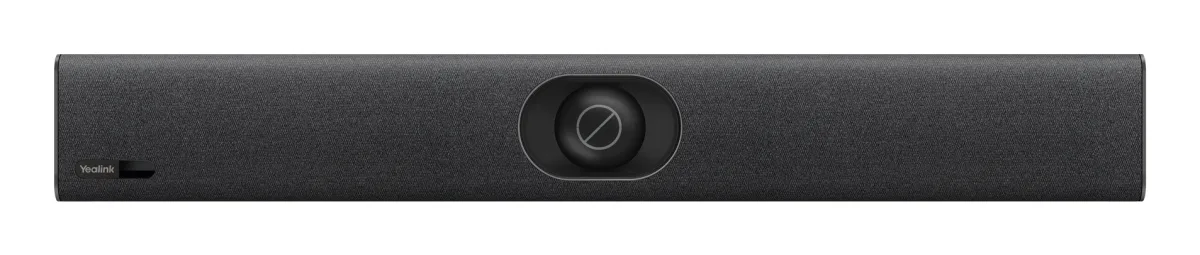

Yealink UVC40 E2

Part #: 1206673 Conference Equipment

$599.00

Quote for availability

Listed price is an estimate — this item is quoted before purchase.

Genuine, sourced-to-order hardware
Secure checkout
Volume pricing by quote

Request a Quote

Availability and lead time confirmed before fulfillment
Compatible alternatives suggested when a part is constrained
Volume and project pricing available on request

Product Overview

Core Features: Ultra-HD 4K Camera/Super-Wide 120 Field of View/Electric lens cap/Built-in 8 MEMS microphone arrays/Wireless/wired expansion microphone/Wired network, remote device management/Auto Framing and Speaker Tracking/Applicable to most popular video conferencing platforms

Specifications

Audio

Built-in speaker(s)	Yes
Speaker power	5 W
Frequency range	50 - 20000 Hz
Noise reduction	Yes
Echo cancellation	Yes
Audio system full duplex	Yes
Line-out impedance	4 Ω
Automatic gain control	Yes
Audio Lip synchronization	Yes

Camera

Field of view (FOV) angle	120°
Camera type	Single camera
Sensor type	CMOS
Image sensor size	1/1.8"

Computer system

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Features

Cable lock slot	Yes

Logistics data

Country of origin	China

Microphone

Number of microphones	8
Microphone sensitivity	-38 dB
Number of microphone arrays	1

Network

Wi-Fi	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 95%

Packaging content

Cables included	USB
Mounting kit	Yes
Quick start guide	Yes
AC adapter included	Yes
Remote control included	Yes

Performance

Product colour	Black
Product type	Personal video conferencing system
Number of cameras	1
Auto framing	Yes
Signal-to-Noise Ratio (SNR)	72 dB

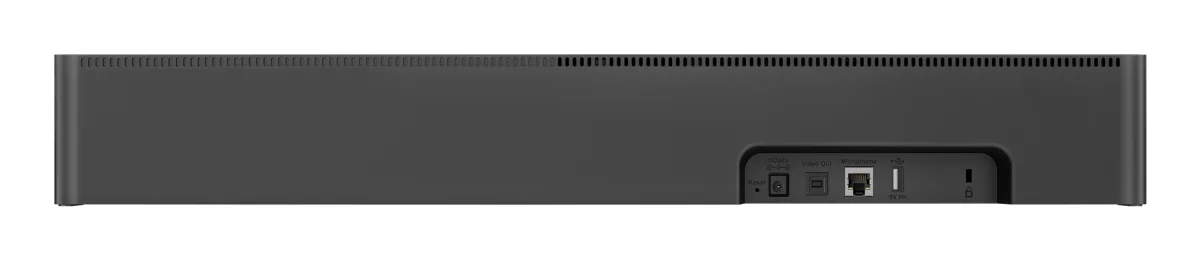

Ports & interfaces

USB 2.0 ports quantity	1
DC-in jack	Yes
Microphone in	Yes
Reset slot	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1

Power

AC input voltage	100 - 240 V
Power source type	AC
DC output voltage	48 V
DC output current	0.7 A

Video

Maximum frame rate	30 fps
HD type	4K Ultra HD
Megapixel (approx.)	8 MP

Weight & dimensions

Weight	28.7 lbs (13 kg)
Width	23.6" (600 mm)
Height	3.23" (82 mm)
Depth	2.68" (68 mm)
Package width	27" (685 mm)
Package height	11.4" (290 mm)
Package depth	15.6" (397 mm)
Package weight	28.9 lbs (13.1 kg)
